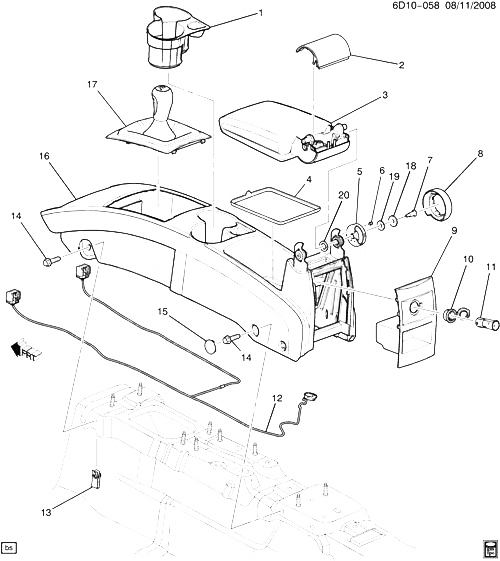

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25745862 |
LINER, F/FLR CNSL CUP HLDR (ЧАСТЬ OF 16) (EBONY) |
D69 (U2S, 13I, 19I) (EXPORT) |
2004-2004 |
01 |
| 002 |
25764288 |
COVER, F/FLR CNSL A/RST HGE (EBONY) (CENTER COVER) |
DN (19I) |
2004-2004 |
01 |
| 002 |
25764289 |
COVER, F/FLR CNSL A/RST HGE (NEUTRAL) (CENTER COVER) |
DN (70I) |
2004-2004 |
01 |
| 003 |
25764285 |
ARMREST, F/FLR CNSL (EBONY) |
DN (19I) |
2004-2004 |
01 |
| 003 |
25764286 |
ARMREST, F/FLR CNSL (NEUTRAL) |
DN (70I) |
2004-2004 |
01 |
| 004 |
25737724 |
LINER, F/FLR CNSL CMPT (ЧАСТЬ OF 16) (EBONY) (LESS CUP ДЕРЖАТЕЛЬ) |
D69 (13I, 19I) |
2004-2004 |
01 |
| 005 |
|
DETENT, F/FLR CNSL A/RST (ЧАСТЬ OF 16) |
|
2004-2004 |
|
| 006 |
25737722 |
RIVET, F/FLR CNSL (ЧАСТЬ OF 16) |
D69 |
2004-2004 |
06 |
| 007 |
19207830 |
БОЛТ, F/FLR CNSL A/RST |
D69 |
2004-2004 |
02 |
| 008 |
25750152 |
COVER, F/FLR CNSL A/RST HGE (EBONY) (END CAP) |
DN (M12, UAV, U2R, U2S, 19I) |
2004-2004 |
02 |
| 008 |
25759217 |
COVER, F/FLR CNSL A/RST HGE (NEUTRAL) (END CAP) |
DN69 (M12, 70I) |
2004-2004 |
02 |
| 009 |
25759200 |
COVER, F/FLR CNSL RR (INCLS 10, 11) (GRAY) (PO CNSL ASM) |
D69 (13I) (EXC DT4) |
2004-2004 |
01 |
| 009 |
25759202 |
COVER, F/FLR CNSL RR (INCLS 10, 11) (NEUTRAL) (PO CNSL ASM) |
D69 (70I) (EXC DT4) |
2004-2004 |
01 |
| 009 |
25759204 |
COVER, F/FLR CNSL RR (INCLS 10, 11) (GRAY) (PO CNSL ASM) |
D69 (DT4, 13I) |
2004-2004 |
01 |
| 009 |
25759206 |
COVER, F/FLR CNSL RR (INCLS 10, 11) (NEUTRAL) (PO CNSL ASM) |
D69 (DT4, 70I) |
2004-2004 |
01 |
| 010 |
15187371 |
RETAINER, ACSRY PWR RCPT (ЧАСТЬ OF 9) (EBONY) (INCLS COVER)
| D69 |
2004-2004 |
01 |
|
| 011 |
25774623 |
RECEPTACLE, ACSRY PWR (ЧАСТЬ OF 9) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| D |
2004-2004 |
01 |
|
| 012 |
89047185 |
HARNESS, F/FLR CNSL WRG (ЧАСТЬ OF 16) |
DM, DN69 (M12, M35, UAV, U2R, U2S) |
2004-2004 |
01 |
| 013 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (ЧАСТЬ OF 16)
|
2004-2004 |
02 |
|
| 014 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (ЧАСТЬ OF 16)
|
2004-2004 |
06 |
|
| 015 |
25731554 |
COVER, F/FLR CNSL БОЛТ ACC HOLE (NEUTRAL) |
D69 (70I) |
2004-2004 |
04 |
| 015 |
25748146 |
COVER, F/FLR CNSL БОЛТ ACC HOLE (EBONY) |
D69 (19I) |
2004-2004 |
04 |
| 016 |
25748147 |
КОНСОЛЬ, F/FLR (INCLS 1, 4-6, 12-14) (EBONY) |
DN (M12, 19I) |
2004-2004 |
01 |
| 016 |
25771469 |
КОНСОЛЬ, F/FLR (INCLS 1, 4-6, 12-14) (NEUTRAL) (NEUTRAL SKIN/NEUTRAL ПОКРЫТИЕ) |
DM, DN (70I) |
2004-2004 |
01 |
| 017 |
15229751 |
KNOB, M/TRNS CONT LVR (W/BOOT W/SHFT PATT) |
DN (M12) |
2004-2004 |
01 |
| 018 |
|
WASHER, F/FLR CNSL |
|
2004-2004 |
|
| 019 |
|
WASHER, F/FLR UPR CNSL |
|
2004-2004 |
|
| 020 |
|
WASHER, F/FLR UPR CNSL BRKT |
|
2004-2004 |
|
| 021 |
|
SPACER, F/FLR CNSL SI T/PNL |
|
2004-2004 |
|
