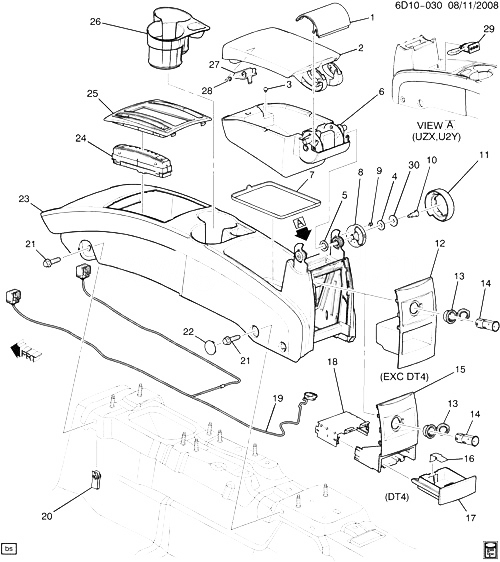

(6D10-030) - 2004-2005 DM,DR69 КОНСОЛЬ/ПОЛ CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25750151 COVER, F/FLR CNSL A/RST HGE (EBONY) (CENTER COVER) D 2004-2004 01
001 25759219 COVER, F/FLR CNSL A/RST HGE (GRAY) (CENTER COVER) DM69 (13I) 2004-2005 01
002 25759212 COVER, F/FLR CNSL (ЧАСТЬ OF 6) (INCLS 27, 28) (GRAY) D69 (13I) 2004-2005 01
003 22611883 BUMPER, F/FLR CNSL COMPT DR (ЧАСТЬ OF 6) (BLACK) (6.6 DIA X 4.7 H) (10.263) D69 2003-2005 02
004 WASHER, F/FLR UPR CNSL 2004-2005
005 WASHER, F/FLR UPR CNSL BRKT 2004-2005
006 25771477 COMPARTMENT, F/FLR CNSL (INCLS 2, 3) (GRAY) D69 (13I) 2004-2005 01
006 25771478 COMPARTMENT, F/FLR CNSL (INCLS 2, 3) (EBONY) (INCLS TRAY, BUMPER COVER) D69 (19C) 2004-2005 01
006 25771479 COMPARTMENT, F/FLR CNSL (INCLS 2, 3) (NEUTRAL) D69 (702) 2004-2005 01
007 25737724 LINER, F/FLR CNSL CMPT (ЧАСТЬ OF 23) (EBONY) (LESS CUP ДЕРЖАТЕЛЬ) D69 (13I, 19I) 2003-2005 01
008 DETENT, F/FLR CNSL A/RST (ЧАСТЬ OF 23) 2004-2005
009 25737722 RIVET, F/FLR CNSL (ЧАСТЬ OF 23) D69 2003-2005 06
010 БОЛТ, F/FLR CNSL A/RST 2004-2005
011 25750152 COVER, F/FLR CNSL A/RST HGE (EBONY) (END CAP) DM 2004-2004 02
011 25759216 COVER, F/FLR CNSL A/RST HGE (GRAY) (END CAP) DM69 (13I) 2004-2005 02
011 25759217 COVER, F/FLR CNSL A/RST HGE (NEUTRAL) (END CAP) DM69 (70I) 2004-2005 02
012 25759200 COVER, F/FLR CNSL RR (INCLS 13, 14) (GRAY) (PO CNSL ASM) D69 (13I) (EXC DT4) 2004-2005 01
012 25759201 COVER, F/FLR CNSL RR (INCLS 13, 14) (EBONY) (PO CNSL ASM) DM (M82, U2S, 19I) (EXC DT4) (EXPORT) 2004-2005 01
012 25759202 COVER, F/FLR CNSL RR (INCLS 13, 14) (NEUTRAL) (PO CNSL ASM) D69 (70I) (EXC DT4) 2004-2005 01
013 15187371 RETAINER, ACSRY PWR RCPT (ЧАСТЬ OF 12, 15) (EBONY) (INCLS COVER) D69 2003-2005 01
014 25774623 RECEPTACLE, ACSRY PWR (ЧАСТЬ OF 12, 15) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) D 2003-2005 01
015 25750153 ШЛАНГИ, F/FLR CNSL ПЕПЕЛЬНИЦА (INCLS 13, 14, 16-18) (EBONY) D69 (DT4, 19I) 2004-2005 01
015 25759204 COVER, F/FLR CNSL RR (INCLS 13, 14, 16-18) (GRAY) (PO CNSL ASM) D69 (DT4, 13I) 2004-2005 01
015 25759206 COVER, F/FLR CNSL RR (INCLS 13, 14, 16-18) (NEUTRAL) (PO CNSL ASM) D69 (DT4, 70I) 2004-2005 01
016 25737736 ПРУЖИНА, F/FLR CNSL RR ПЕПЕЛЬНИЦА GDE (ЧАСТЬ OF 15) D69 2003-2005 01
017 25750155 DOOR, F/FLR CNSL ПЕПЕЛЬНИЦА (ЧАСТЬ OF 15) (EBONY) D69 2003-2005 01
018 ШЛАНГИ, F/FLR CNSL ПЕПЕЛЬНИЦА (ЧАСТЬ OF 15) (HEAT SHIELD) 2004-2005
019 89047185 HARNESS, F/FLR CNSL WRG DR (M82, UAV, U2R, U2S) (EXPORT) 2003-2005 01
019 89047185 HARNESS, F/FLR CNSL WRG DM, DN69 (M12, M35, UAV, U2R, U2S) 2004-2004 01
019 89047185 HARNESS, F/FLR CNSL WRG DM69 (M35, DT4, U2Y) 2004-2004 01
019 89047185 HARNESS, F/FLR CNSL WRG DM (M82, UAV, U2R, U2S) (EXC DT4) 2004-2005 01
020 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (ЧАСТЬ OF 23) 2003-2005 02
021 11517342 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (ЧАСТЬ OF 23) 2003-2005 06
022 25731552 COVER, F/FLR CNSL БОЛТ ACC HOLE (GRAY) D69 (13I) 2003-2005 04
022 25731554 COVER, F/FLR CNSL БОЛТ ACC HOLE (NEUTRAL) D69 (70I) 2003-2005 04
022 25748146 COVER, F/FLR CNSL БОЛТ ACC HOLE (EBONY) D69 (19I) 2003-2005 04
023 25748148 КОНСОЛЬ, F/FLR (INCLS 7-9, 20, 21, 26-29) (EBONY) D69 (M82, U2S, 19I) (EXPORT) 2003-2005 01
023 25748149 КОНСОЛЬ, F/FLR (INCLS 7-9, 20, 21, 26-29) (EBONY) D69 (M82, U2X, U2Y, 19I) 2003-2005 01
023 25748150 КОНСОЛЬ, F/FLR (INCLS 7-9, 20, 21, 26-29) (EBONY) DM (M35, U2Y, 19I) 2004-2004 01
023 25760647 КОНСОЛЬ, F/FLR (INCLS 7-9, 20, 21, 26-29) (NEUTRAL) (EBONY SKIN/NEUTRAL ПОКРЫТИЕ) DM (M35, U2S, 70I) (EXPORT) 2004-2004 01
024 25727784 DIAL, A/TRNS CONT IND (ЧАСТЬ OF 25) (PEWTER) D (M82) 2003-2005 01
024 25750525 DIAL, A/TRNS CONT IND (ЧАСТЬ OF 25) (EBONY) D (M82) 2003-2005 01
025 25750673 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 24) (EBONY) DR (13I, 19I) (EXPORT) 2004-2005 01
025 25750674 PLATE, F/FLR CNSL TRANS SHFT OPG TR (EBONY) (INCLS 24) DM (M82, 13I, 19I) 2004-2005 01
025 25759222 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 24) (GRAY) DR (13I) (EXPORT) 2004-2005 01
025 25759223 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 24) (NEUTRAL) DR (70I) (EXPORT) 2004-2005 01
025 25759225 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 24) (GRAY) DM (M82, 13I) 2004-2005 01
025 25759226 PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 24) (NEUTRAL) DM (M82, 70I) 2004-2005 01
026 25745862 LINER, F/FLR CNSL CUP HLDR (ЧАСТЬ OF 23) (EBONY) D69 (U2S, 13I, 19I) (EXPORT) 2003-2005 01
027 25750149 LATCH, F/FLR RR CNSL A/RST (ЧАСТЬ OF 2, 23) (EBONY) D 2004-2004 01
028 25737728 ПРУЖИНА, F/FLR RR CNSL A/RST LAT (ЧАСТЬ OF 2, 23) D 2003-2005 01
029 25666549 HARNESS, AUDIO/VIDEO WRG (ЧАСТЬ OF 23) (9.656) (ACDelco #25666549) D69 (U2X, U2Y) 2003-2005 01
030 WASHER, F/FLR CNSL 2004-2005
