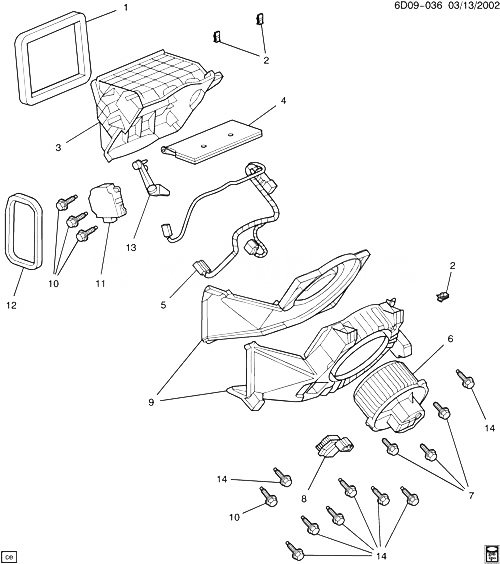

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAL, INLET |
|
2004-2004 |
|
| 002 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG)
|
2003-2004 |
04 |
|
| 003 |
25740407 |
INLET, AIR (INCLS 4, 13) |
DM, DN (CJ2) |
2004-2004 |
01 |
| 004 |
|
VALVE, INLET (ЧАСТЬ OF 3) |
|
2004-2004 |
|
| 005 |
25740410 |
HARNESS, BLO MOT RES |
D |
2003-2004 |
01 |
| 006 |
25740408 |
MOTOR, BLO (W/IMPLR) (ACDelco #15-80198)
| DM, DN (CJ2) |
2004-2004 |
01 |
|
| 006 |
25740408 |
MOTOR, BLO (W/IMPLR) (8.855) (ACDelco #15-80198)
| DM, DN (CJ2) |
2004-2004 |
01 |
|
| 007 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BLO AIR INL MDL)
|
2003-2004 |
03 |
|
| 008 |
25740415 |
МОДУЛЬ, BLO MOT CONT (9.273) (ACDelco #15-72791)
| DM, DN (CJ2) |
2004-2004 |
01 |
|
| 009 |
|
МОДУЛЬ, BLO AIR INL |
|
2004-2004 |
|
| 010 |
|
БОЛТ, AIR INL |
|
2004-2004 |
|
| 011 |
25740395 |
ACTUATOR, TEMP VLV (ACDelco #15-72803) |
D69 |
2003-2004 |
02 |
| 012 |
|
SEAL, INLET |
|
2004-2004 |
|
| 013 |
|
LEVER (ЧАСТЬ OF 3) |
|
2004-2004 |
|
| 014 |
|
БОЛТ/SCREW |
|
2004-2004 |
|
