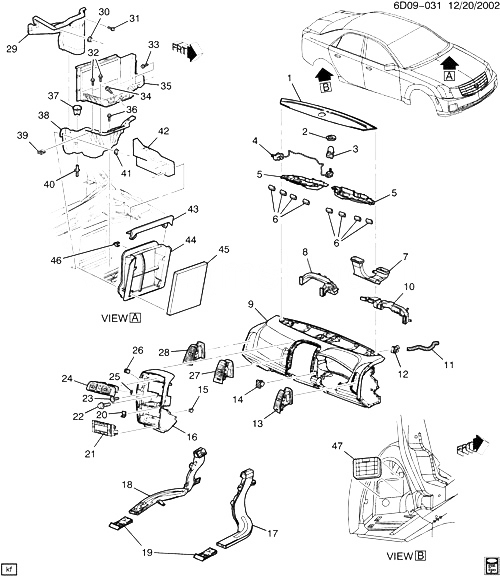

(6D09-031) - 2004-2007 DR69 СИСТЕМА РАСПРЕДЕЛЕНИЯ ВОЗДУХА CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25749921 GRILLE, W/S DEFR NOZ (INCLS 2, 3, 5, 6) (EBONY) D69 (U57) 2004-2005 01
001 25749921 GRILLE, W/S DEFR NOZ (INCLS 2, 3, 5, 6) (EBONY) D69 (U66) 2004-2005 01
002 SOCKET, W/S DEFR NOZ GRL FOR HDLP SENSOR (ЧАСТЬ OF 1) 2004-2007
003 25713063 SENSOR, HDLP AUTO CONT AMB LGT (ЧАСТЬ OF 1) (DUAL SOLAR TWILIGHT) D69 2003-2007 01
004 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 I/P ЖГУТЫ ПРОВОДОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
005 DUCT, W/S DEFR NOZ (ЧАСТЬ OF 1) 2004-2007
006 22570333 RETAINER, W/S DEFR NOZ GRL (ЧАСТЬ OF 1) (10.240) D69 2003-2007 08
007 25719246 NOZZLE, W/S DEFR D69 (CJ2) 2003-2007 01
008 25687490 DUCT, AIR DISTR (PASSENGER SIDE FACE) DR (CJ2) 2004-2006 01
009 PANEL, INST (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
010 25687488 DUCT, AIR DISTR (DRIVER SIDE FACE) DR (CJ2) 2004-2006 01
011 DUCT, I/S AIR TEMP SEN ASPIRATOR 2004-2007
012 25687484 SENSOR, I/S AIR TEMP (ACDelco #15-5889) D 2003-2007 01
013 25749973 DEFLECTOR, I/P OTR AIR OTLT (EBONY) DR (EXPORT) 2004-2005 01
014 25749915 GRILLE, I/S AIR TEMP SEN (EBONY) D69 2004-2005 01
015 25536302 ГАЙКА, I/P LWR EXTN (4.2 X 1.41) (TAPPING NUT) (3.430) D69 2003-2007 12
016 25749980 EXTENSION, I/P LWR (INCLS 20, 22, 23) (EBONY) DR (EXPORT) 2004-2007 01
017 25763803 DUCT, FLR RR AIR OTLT D69 2003-2007 01
018 25744150 DUCT, FLR RR AIR OTLT D69 2003-2007 01
019 25719080 DUCT, FLR RR AIR OTLT (EXT USED ON LH RH ENDS) D 2003-2007 02
020 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 16) 2003-2007 02
021 21992569 CONTROL, HTR КОНДИЦИОНЕР (ACDelco #15-73018) (USE ON PARTS LABELED WITH OEM P/N 21992569) DR (CJ2, KA1) (EXPORT) 2004-2004 01
021 21992570 CONTROL, HTR КОНДИЦИОНЕР (LABELED 21992570 OR 25764562) (ACDelco #15-73019) DR (CJ2) (EXC KA1) (EXPORT) 2004-2004 01
022 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ЧАСТЬ OF 16) 2003-2007 04
023 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 16) 2003-2007 12
024 25749919 PLATE, I/P ACSRY TR (INCLS 25, 26) (EBONY) (INCLS SW RET) (DOMESTIC, NON EUROPEAN MID EASTERN COUNTRIES) D69 (EXC V92) 2004-2007 01
024 25749920 PLATE, I/P ACSRY TR (INCLS 25, 26) (EBONY) (INCLS SW RET) (EUROPEAN MID EASTERN COUNTRIES) D69 (EXPORT) 2004-2007 01
025 22570333 RETAINER, I/P ACSRY TR PLT (ЧАСТЬ OF 24) (10.240) D69 2003-2007 03
026 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 24) 2003-2007 02
027 25749974 DEFLECTOR, I/P CTR AIR OTLT (EBONY) DR (EXPORT) 2004-2005 01
028 25749972 DEFLECTOR, I/P OTR AIR OTLT (EBONY) DR (EXPORT) 2004-2005 01
029 15788304 PANEL, AIR INL HSG FRT DR 2004-2007 01
030 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG) 2003-2007 03
031 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AIR INL HSG) 2003-2007 03
032 11517486 БОЛТ-HEX, M6X1X30, 19 THD, 17 OD, 9.8, 6280M (SN-ZN), MACH, P-PT (BAT TRAY) 2003-2007 04
033 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY) 2003-2007 02
034 11516727 БОЛТ, HEX HD W/CONICAL WASHER, M6X1X40, 30 THD, 17 OD, 9.8 MAT, 7114M FIN, (BAT TRAY) 2003-2007 01
035 TRAY, BAT (INCLS 49) (СМ. ГРУППУ 02.000 АККУМУЛЯТОР ПРОВОДА AND КРЕПЛЕНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
036 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AIR INL) 2003-2007 01
037 VALVE, PLNM DRN 2003-2007
038 25718454 PANEL, AIR INL HSG LWR (INCLS 39, 40) DR (EXPORT) 2004-2007 01
039 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 38) 2003-2007 04
040 11517528 STUD, FLANGE M6X1X20, M6.3X1.69X16, 15 OD, 6010M, 4345M, TAP (ЧАСТЬ OF 38) 2003-2007 02
041 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL HSG) 2003-2007 01
042 25732486 SEAL, AIR INL GRL PNL DR (EXPORT) 2004-2007 01
043 19130428 COVER, PASS COMPT AIR FLTR ACC HOLE (WILL ALSO REQUIRE USE OF 19130429 ON CARS BUILT PRIOR TO 5/1/07) D 2003-2007 01
044 25740406 ШЛАНГИ, PASS COMPT AIR FLTR (INCLS 46) D 2003-2006 01
045 19130403 FILTER KIT, PASS COMPT AIR (ЧАСТЬICLE FILTER) (ACDelco #CF133) D69 2003-2007 01
046 RETAINER, PASS COMPT AIR FLTR (ЧАСТЬ OF 44) 2004-2007
047 25739070 VALVE, QTR OTR PNL PRESS RLF D69 2003-2007 02
