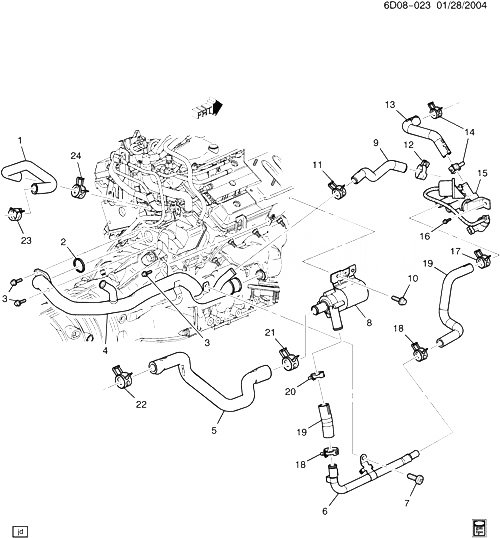

(6D08-023) - 2003-2004 D69 ШЛАНГИИ ТРУБКИ НАГРЕВАТЕЛЯ (LY9/2.6M,LA3/3.2N) CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25740130 HOSE, HTR INL (INCLS 23-24) DM (LA3, LY9, JJA) 2004-2004 01
001 25740130 HOSE, HTR INL (INCLS 23-24) DR (LA3, LY9, JJA) (EXPORT) 2004-2004 01
002 09128362 SEAL, RAD OTLT PIPE (O RING) (37MM DIA) (1.097) D (LA3, LY9) 2003-2004 01
003 11094881 БОЛТ, RAD OTLT PIPE (M8X16) (2.183) D 2003-2004 03
004 09230985 PIPE, RAD OTLT D (LA3, LY9) 2003-2004 01
005 25740131 HOSE, HTR OTLT (INCLS 21-22) DM (LA3, LY9) 2004-2004 01
005 25740131 HOSE, HTR OTLT (INCLS 21-22) DR (LA3, LY9) (EXPORT) 2004-2004 01
006 25740132 HOSE, HTR WAT BYPASS VLV INL (INCLS 17-20) DM (LA3, LY9) 2004-2004 01
006 25740132 HOSE, HTR WAT BYPASS VLV INL (INCLS 17-20) DR (LA3, LY9) (EXPORT) 2004-2004 01
007 11515151 SCREW, PAN HD, M6X1X13, 12 THD, 9.8, PE, TORX (HTR OTLT PIPE) 2003-2004 02
008 25734790 PUMP, AUX WAT (ACDelco #251-676) D (LA3, LY9) 2003-2004 01
009 25740133 HOSE, HTR WAT BYPASS VLV OTLT (INCLS 11-12) DM (LA3, LY9, JJA) 2004-2004 01
009 25740133 HOSE, HTR WAT BYPASS VLV OTLT (INCLS 11-12) DR (LA3, LY9, JJA) (EXPORT) 2004-2004 01
010 11093621 БОЛТ, W/PMP (M10X1.5X24, TORX) (2.042) D (LA3) 2003-2004 03
010 11093621 БОЛТ, W/PMP (M10X1.5X24, TORX) (2.042) D (LY9) 2003-2004 03
011 11518518 CЛАМПА, HTR WAT BYPASS VLV OTLT HOSE (ЧАСТЬ OF 9) (28X12MM) (BLACK YELLOW T-CLIP) (8.948) DM, DR (LA3, LY9, JJA) 2004-2004 01
012 11518516 CЛАМПА, HTR WAT BYPASS VLV OTLT HOSE (ЧАСТЬ OF 9) (27MM) (BLACK YELLOW T-CLIP) (1.240) DM, DR (LA3, LY9, JJA) 2004-2004 01
013 25740134 HOSE, COOL RCVY W/PMP (INCLS 14) (8.846) (ACDelco #15-32599) D (LA3, LY9) 2003-2004 01
014 11517133 CЛАМПА, ПРУЖИНА, 22-26MM, 24 NOM., BLK (ЧАСТЬ OF 13) 2003-2004 02
015 25740115 VALVE, HTR WAT BYPASS (INCLS 16) (INCLS SOLENOID) (8.846) (ACDelco #15-31971) D (LA3, LY9) 2003-2004 01
016 БОЛТ, HTR OTLT SUPT) (ЧАСТЬ OF 15) 2003-2004
017 11518519 CЛАМПА, HTR WAT BYPASS VLV INL HOSE (2812 REGULAR CT CЛАМПА) (ЧАСТЬ OF 6) DM, DR (LA3, LY9, JJA) 2004-2004 01
018 11517133 CЛАМПА, ПРУЖИНА, 22-26MM, 24 NOM., BLK (ЧАСТЬ OF 6) 2003-2004 02
019 HOSE, HTR WAT BYPASS VLV INL (ЧАСТЬ OF 6) 2003-2004
020 11518518 CЛАМПА, HTR WAT BYPASS VLV INL HOSE (ЧАСТЬ OF 6) (28X12MM) (BLACK YELLOW T-CLIP) (8.948) DM, DR (LA3, LY9, JJA) 2004-2004 01
021 11517133 CЛАМПА, ПРУЖИНА, 22-26MM, 24 NOM., BLK (ЧАСТЬ OF 5) 2003-2004 01
022 11518518 CЛАМПА, HTR OTLT HOSE (ЧАСТЬ OF 5) (28X12MM) (BLACK YELLOW T-CLIP) (8.948) D 2003-2004 01
023 11517133 CЛАМПА, ПРУЖИНА, 22-26MM, 24 NOM., BLK (ЧАСТЬ OF 1) 2003-2004 01
024 11516222 CЛАМПА, ПРУЖИНАBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (ЧАСТЬ OF 1) 2003-2004 01
