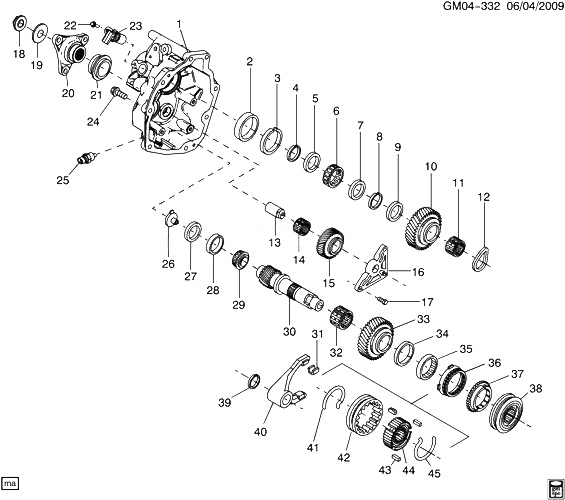

(GM04-332) - 2004-2007 DN 6-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 5 (M12) EXTENSION ШЛАНГИ И REVERSE IDLER GEAR CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89059426 EXTENSION, TRANS DN (M12) 2004-2006 01
002 RACE, MAINSHAFT BEARING (ЧАСТЬ OF 6) 2004-2007
003 12523253 RING, MAIN SHF RR BRG RET (4.318) DN (M12) 2004-2007 01
004 12523253 RING, 5TH 6TH GR SYN HUB RET (4.318) DN (M12) 2004-2007 01
005 12455040 SPACER, 5TH 6TH CNTR GR (4.416) DN (M12) 2004-2007 02
006 12523057 BEARING, MAIN SHF RR (INCLS 2) (W/STRAIGHT ROLLERS) (ACDelco #S1314) DN (M12) 2004-2007 01
007 12455040 SPACER, 5TH 6TH CNTR GR (4.416) DN (M12) 2004-2007 02
008 12523253 RING, 5TH 6TH GR SYN HUB RET (4.318) DN (M12) 2004-2007 01
009 12523053 WASHER, REV GR (LOCATED BETWEEN REV GR ЗАДНИЙ MAINSHAFT) DN (M12) 2004-2007 01
010 12523052 GEAR, REV (TRANS MAIN SHF) DN (M12) 2004-2007 01
011 12523050 BEARING, REV GR DN (M12) 2004-2007 01
012 12523048 WASHER, REV GR (LOCATED BETWEEN REV GR SYNCHRO ASM) DN (M12) 2004-2007 01
013 12369469 SHAFT, REV IDLER GR DN (M12) 2004-2007 01
014 12523073 BEARING, 3RD GR DN (M12) 2004-2007 01
015 12523283 GEAR, REV IDLER DN (M12) 2004-2007 01
016 12369470 BRACKET, REV IDLER GR SHF DN (M12) 2004-2007 01
017 12523243 БОЛТ, SHFT GDE DTNT PLT (4.303) DN (M12) 2004-2007 02
018 89059464 ГАЙКА, PROP SHF TRANS YOKE DN69 (LS6, M12, JJA) 2004-2005 01
019 89059465 WASHER, PROP SHF TRANS YOKE DN69 (LS6, M12, JJA) 2004-2005 01
020 89059463 YOKE, PROP SHF TRANS DN69 (LS6, M12, JJA) 2004-2005 01
021 89059483 SEAL, MAIN SHF RR DN (M12) 2004-2007 01
022 11508040 БОЛТ, HEX, M8X1.25X25, 9.8, PZOR (VEH SPD SEN) 2004-2007 01
023 24232088 SENSOR, M/TRNS ВЫХОДНОЙ SPD (4.329) (ACDelco #213-3241) DN69 (LS6, M12, JJA) 2004-2005 01
023 24232088 SENSOR, M/TRNS ВЫХОДНОЙ SPD (4.329) (ACDelco #213-3241) DN69 (LS6, M12, JJA) 2004-2005 01
024 12523235 БОЛТ, CLU HSG (M10X1.5-40MM) DN (M12) 2004-2007 08
025 12458118 SENSOR, M/TRNS FLUID TEMP (ACDelco #12458118) DN69 (LS6, M12, JJA) 2004-2005 01
026 12523275 FUNNEL, TRANS LUB DN (M12) 2004-2007 01
027 12523259 SHIM, CNTR GR RR BRG (.022MM) (4.422) DN (M12) 2004-2007 01
027 12523260 SHIM, CNTR GR RR BRG (.024MM) (4.422) DN (M12) 2004-2007 01
027 12523261 SHIM, CNTR GR RR BRG (.026MM) (4.422) DN (M12) 2004-2007 01
027 12523262 SHIM, CNTR GR RR BRG (.028MM) (4.422) DN (M12) 2004-2007 01
027 12523263 SHIM, CNTR GR RR BRG (.030MM) (4.422) DN (M12) 2004-2007 01
027 12523264 SHIM, CNTR GR RR BRG (.032MM) (4.422) DN (M12) 2004-2007 01
027 12523265 SHIM, CNTR GR RR BRG (.034MM) (4.422) DN (M12) 2004-2007 01
027 12523266 SHIM, CNTR GR RR BRG (.036MM) (4.422) DN (M12) 2004-2007 01
027 12523267 SHIM, CNTR GR RR BRG (.038MM) (4.422) DN (M12) 2004-2007 01
027 12523268 SHIM, CNTR GR RR BRG (.040MM) (4.422) DN (M12) 2004-2007 01
027 12523269 SHIM, CNTR GR RR BRG (.042MM) (4.422) DN (M12) 2004-2007 01
027 12523270 SHIM, CNTR GR RR BRG (.044MM) (4.422) DN (M12) 2004-2007 01
027 12523271 SHIM, CNTR GR RR BRG (.046MM) (4.422) DN (M12) 2004-2007 01
027 12523272 SHIM, CNTR GR RR BRG (.048MM) (4.422) DN (M12) 2004-2007 01
027 12523273 SHIM, CNTR GR RR BRG (.050MM) (4.422) DN (M12) 2004-2007 01
028 12523059 BEARING, MAIN SHF FRT (4.317) DN (M12) 2004-2007 01
029 12523059 BEARING, RR CNTR GR RR (4.317) DN (M12) 2004-2007 01
030 12455034 GEAR, 5TH GR DRV (ЧАСТЬ OF GEAR KIT, CNTR) (СМ. ГРУППУ 04.000 6-ТИ СКОРОСТНАЯ МКПП GEARS AND SHAFTS - ЧАСТЬ 2 FOR SERVICE ЧАСТЬ) DN (M12) 2004-2005 01
031 12523233 INSERT, 5TH REV SHFT FORK (ЧАСТЬ OF 40) DN (M12) 2004-2007 02
032 12523247 BEARING, 5TH GR DN (M12) 2004-2007 01
033 12523042 GEAR, 5TH DN (M12) 2004-2007 01
034 12455036 RING, 5TH GR BLOCKING DN (M12) 2004-2005 01
035 12455039 WASHER, 5TH 6TH GR THR (4.384) DN (M12) 2004-2007 02
036 12455017 CONE, 4TH GR SYN INR DN (M12) 2004-2007 01
037 88894070 CONE, 4TH GR SYN OTR DN (M12) 2004-2007 01
038 89059481 SYNCHRONIZER, 5TH 6TH GR (INCLS 41-45) DN (M12) 2004-2007 01
039 12541299 RING, 5TH 6TH REV SHFT SHF RET (.89 I.D.) (4.384) DN (M12) 2004-2007 01
040 12523258 FORK, 5TH 6TH SHFT (INCLS 31) DN (M12) 2004-2007 01
041 12523251 ПРУЖИНА, 5TH GR SYN (ЧАСТЬ OF 38) DN (M12) 2004-2007 02
042 SLEEVE, 5TH GR SYN (ЧАСТЬ OF 38) 2004-2007
043 14083521 INSERT, 5TH 6TH GR SYN (ЧАСТЬ OF 38) (WINGED FLANGES ON SIDES OF KEY) DN (M12) 2004-2007 03
044 HUB, 5TH 6TH GR SYN (ЧАСТЬ OF 38) 2004-2007
045 12523251 ПРУЖИНА, 5TH GR SYN (ЧАСТЬ OF 38) DN (M12) 2004-2007 02
