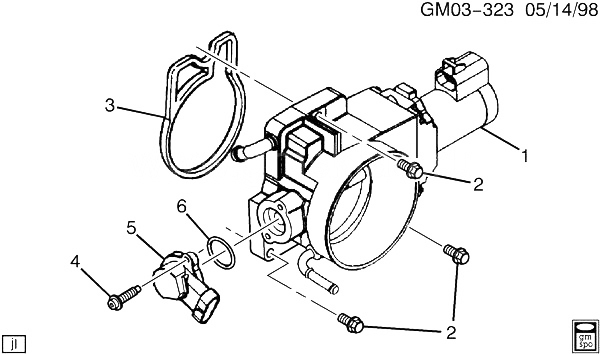

(GM03-323) - 2004-2005 DN69 THROTTLE BODY (LS6/5.7S) CADILLAC - CTS 2004
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 17113669 | BODY, THROT (INCLS 4, 5, 6) (ACDelco #217-2288) | D (LS6) | 2004-2005 | 01 |
| 002 | 11588714 | БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (THROT BODY)|
| 2004-2005 |
03 |
|
| 003 | 12552542 | SEAL, THROT BODY | D (LS6) | 2004-2005 | 01 |
| 004 | БОЛТ, THROT POSN SEN (ЧАСТЬ OF 1, 5) | 2004-2005 | |||
| 005 | 17113566 | SENSOR KIT, THROT POSN (INCLS 4, 6) (ЧАСТЬ OF 1) (ACDelco #17113566)| DN (LS6) |
2004-2005 |
01 |
|
| 006 | SEAL, THROT POSN SEN LVR (ЧАСТЬ OF 1, 5) | 2004-2005 |
