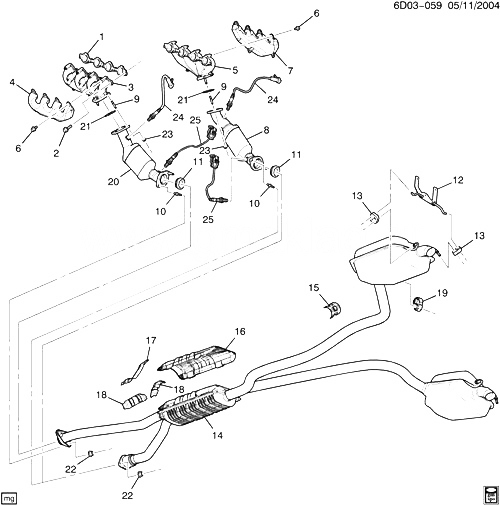

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12558573 |
GASKET, EXH MANIF |
D (LS6) |
2004-2005 |
02 |
| 002 |
11518860 |
БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF FLG)
|
2004-2007 |
12 |
|
| 003 |
12611322 |
MANIFOLD, EXH |
D (LS6) |
2004-2005 |
01 |
| 004 |
12578032 |
SHIELD, EXH MANIF HT |
D (LS6) |
2004-2005 |
01 |
| 005 |
12611324 |
MANIFOLD, EXH |
D (LS6) |
2004-2005 |
01 |
| 006 |
24505098 |
БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (EXH MANIF H/SHLD) |
|
2004-2007 |
12 |
| 007 |
12578031 |
SHIELD, EXH MANIF HT |
D (LS6) |
2004-2005 |
01 |
| 008 |
10358090 |
CONVERTER, 3WAY CTLTC (INCLS 11) (INCLUDES TAKE DOWN PIPE AND CAT CONV) |
DN (LS6, JJA) |
2004-2005 |
01 |
| 009 |
11518424 |
STUD, STRAIGHT, M10X1.5X14.5, M10X1.5X31, 56 TL, 9.8, PL (EXH PIPE) |
|
2004-2007 |
02 |
| 010 |
12562640 |
STUD, EXH PIPE (M10X1.5X36.5, 22 THD, M10X1.5X16, 14 THD, 20.8 OD, 5.8, 6164M, ) |
DN |
2004-2007 |
02 |
| 011 |
12555555 |
SEAL, EXH MANIF PIPE (ЧАСТЬ OF 8, 20) |
DN69 (LS6, JJA) |
2004-2005 |
02 |
| 012 |
25744216 |
BRACKET, EXH TAIL PIPE HNGR |
DN69 |
2004-2007 |
01 |
| 012 |
25755350 |
BRACKET, EXH TAIL PIPE HNGR |
D69 |
2004-2007 |
01 |
| 013 |
15284207 |
INSULATOR, EXH TAIL PIPE HNGR
| D |
2004-2005 |
02 |
|
| 014 |
15794852 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 15-18) (CODE 4852) |
DN |
2004-2007 |
01 |
| 014 |
15794852 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 15-18) (CODE 4852) (3.701) |
DN |
2004-2007 |
01 |
| 014 |
15794852 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 15-18) (CODE 4852) (3.701) |
DN |
2004-2007 |
01 |
| 015 |
|
SHIELD, EXH PIPE HT (ЧАСТЬ OF 14) |
|
2004-2005 |
|
| 016 |
|
SHIELD, EXH RESO HT (ЧАСТЬ OF 14) |
|
2004-2005 |
|
| 017 |
|
SHIELD, EXH PIPE HT (ЧАСТЬ OF 14) |
|
2004-2005 |
|
| 018 |
|
SHIELD, EXH RESO PIPE HT (ЧАСТЬ OF 14) |
|
2004-2005 |
|
| 019 |
25711603 |
INSULATOR, EXH MUFF HNGR BRKT |
D |
2004-2007 |
AR |
| 020 |
10358089 |
CONVERTER, 3WAY CTLTC (INCLS 11) (INCLUDES TAKE DOWN PIPE AND CAT CONV) |
DN69 (LS6, JJA) |
2004-2005 |
01 |
| 021 |
24505057 |
GASKET, EXH MANIF PIPE (SEAL CTLTC CONV (O-RING TYPE.)) |
DN69 (LS6, JJA) |
2004-2005 |
02 |
| 022 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MUFF)
|
2004-2007 |
04 |
|
| 023 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (CTLTC CONV)
|
2004-2007 |
04 |
|
| 024 |
12569429 |
SENSOR, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-1568) |
D69 (LS6, M12, JJA) |
2004-2005 |
02 |
| 025 |
12575389 |
SENSOR, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-1571) |
D69 (LS6, M12, JJA) |
2004-2005 |
02 |
