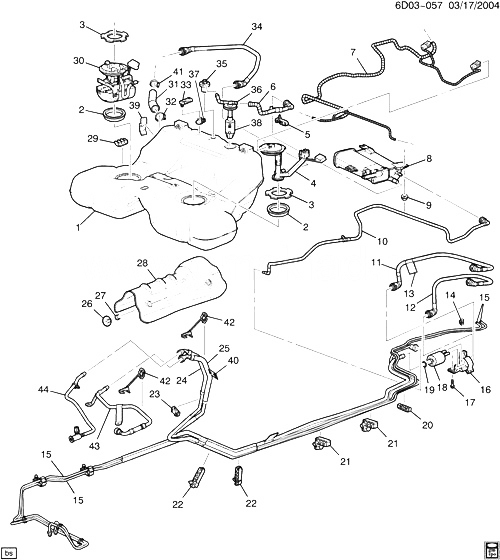

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15211314 |
TANK, FUEL (INCLS 6, 27, 35-39) |
D69 |
2004-2004 |
01 |
| 002 |
25901272 |
SEAL, FUEL SDR (ACDelco #G37) |
D |
2004-2007 |
AR |
| 003 |
25740096 |
CAM, FUEL SDR (ACDelco #TR23) |
D |
2004-2007 |
02 |
| 004 |
88965813 |
SENDER KIT, FUEL (FOR AUXILARY МОДУЛЬ) (ACDelco #MU1579) |
D |
2004-2007 |
01 |
| 005 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) |
D69 (LA3, LS6, LY7, LY9) |
2004-2004 |
01 |
| 006 |
|
VALVE, F/TNK VENT (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 007 |
25767960 |
HARNESS, FUEL SDR WRG |
D69 (LS6) |
2004-2005 |
01 |
| 008 |
19177355 |
CANISTER, EVAP EMIS (CANISTER WITHOUT COVER OR FILTER) (ACDelco #215-644) |
D69 |
2004-2004 |
01 |
| 009 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT)
|
2004-2007 |
01 |
|
| 010 |
15801811 |
PIPE, EVAP EMIS CNSTR PURGE (ЗАДНИЙ EVAP LINE) |
D69 (LS6) |
2004-2005 |
01 |
| 011 |
15801814 |
PIPE, FUEL FEED RR (INCLS 13) |
D69 (LS6, LY7) |
2004-2004 |
01 |
| 012 |
15801816 |
PIPE, FUEL RTN RR |
D69 (LS6, LY7) |
2004-2004 |
01 |
| 013 |
|
LABEL, FUEL FEED RTN PIPE CAUTION (ЧАСТЬ OF 11) |
|
2004-2007 |
|
| 014 |
25607191 |
RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) |
D |
2004-2005 |
01 |
| 015 |
|
PIPE, RR BRK FRT (СМ. ГРУППУ 04.000 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2005 |
|
| 016 |
25701014 |
RETAINER, FUEL FLTR (RETAINER, FUEL FLTR) |
D69 (LS6) |
2004-2004 |
01 |
| 017 |
11516872 |
БОЛТ-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (FUEL FLTR BRKT) |
|
2004-2007 |
01 |
| 018 |
25763176 |
ФИЛЬТР, FUEL (ACDelco #GF897)
| D69 (LS6, LY7) |
2004-2004 |
01 |
|
| 019 |
22514722 |
SEAL, FUEL FEED FRT PIPE (O RING) (ЧАСТЬ OF PIPE, FEED RTN ASM BUNDLE) (7.35MM ID X 1.66MM THK) (ЧАСТЬ OF 25) (ACDelco #217-452)
| D |
2004-2007 |
01 |
|
| 020 |
25688547 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) |
DN (LS6) |
2004-2005 |
01 |
| 021 |
25740370 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, L SHAPED, SNAP-IN RETAINER) |
DN (LS6) |
2004-2005 |
02 |
| 022 |
15270078 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT)
| DN (LS6) |
2004-2005 |
02 |
|
| 022 |
15270078 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) (3.162)
| D (LS6) |
2004-2005 |
02 |
|
| 022 |
25688547 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) |
D (LS6) |
2004-2005 |
01 |
| 022 |
25688547 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) (3.162) |
D (LS6) |
2004-2005 |
01 |
| 022 |
25740370 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, L SHAPED, SNAP-IN RETAINER) |
DN (LS6) |
2004-2005 |
02 |
| 022 |
25740370 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, L SHAPED, SNAP-IN RETAINER) (3.162) |
D (LS6) |
2004-2005 |
02 |
| 022 |
25749839 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) |
D |
2004-2004 |
01 |
| 022 |
25749839 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) |
DN (LS6) |
2004-2004 |
01 |
| 022 |
25749839 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) (3.162) |
D |
2004-2004 |
01 |
| 022 |
25749839 |
RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) (3.162) |
D (LS6) |
2004-2004 |
01 |
| 023 |
|
CLIP, FUEL FEED RTN HOSE |
|
2004-2005 |
|
| 024 |
21999763 |
PIPE, EVAP EMIS CNSTR PURGE |
D69 (LS6) |
2004-2005 |
01 |
| 025 |
21999764 |
PIPE, FUEL FEED (INCLS 19, 40) |
D69 (LS6) |
2004-2005 |
01 |
| 026 |
25679213 |
PIN, F/TNK UPR SHLD |
D |
2004-2007 |
04 |
| 027 |
|
RETAINER, F/TNK SHLD (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 028 |
25679209 |
SHIELD, F/TNK |
D |
2004-2007 |
01 |
| 029 |
|
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE |
|
2004-2005 |
|
| 030 |
19206466 |
МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (ACDelco #M10161) |
D69 (LS6) |
2004-2004 |
01 |
| 030 |
19206466 |
МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (3.107) (ACDelco #M10161) |
D69 (LS6) |
2004-2004 |
01 |
| 031 |
25764421 |
HOSE, F/TNK FIL (INCLS 32, 41) |
D69 |
2004-2004 |
01 |
| 032 |
25711370 |
CЛАМПА, F/TNK FIL HOSE (ЧАСТЬ OF 31) (30-45MM CЛАМПА RANGE) |
D69 |
2004-2007 |
01 |
| 033 |
22678829 |
SENSOR, F/TNK PRESS (W/SDR)
| D69 |
2004-2004 |
01 |
|
| 034 |
15951521 |
PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK)
| D |
2004-2005 |
01 |
|
| 035 |
|
VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 036 |
|
VALVE, F/TNK VENT (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 037 |
|
RETAINER, FUEL PRESS REG (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 038 |
|
VALVE, F/TNK VENT (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 039 |
|
RETAINER, FUEL SDR (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 040 |
|
LABEL, FUEL FEED RTN PIPE CAUTION (ЧАСТЬ OF 25) |
|
2004-2007 |
|
| 041 |
09177063 |
CЛАМПА, F/TNK FIL HOSE (ЧАСТЬ OF 31) (25-40MM CЛАМПА RANGE) |
D |
2004-2007 |
01 |
| 042 |
25654373 |
CLIP, FUEL FEED RTN HOSE (ЧАСТЬ OF 43) (PLASTIC) |
D69 (LS6) |
2004-2005 |
10 |
| 043 |
12581554 |
PIPE, F/INJN FUEL FEED (INCLS 42) |
D69 (LS6, M12, JJA) |
2004-2005 |
01 |
| 044 |
12588466 |
TUBE, EVAP EMIS CNSTR PURGE |
D (LS6, M12, JJA) |
2004-2005 |
01 |
