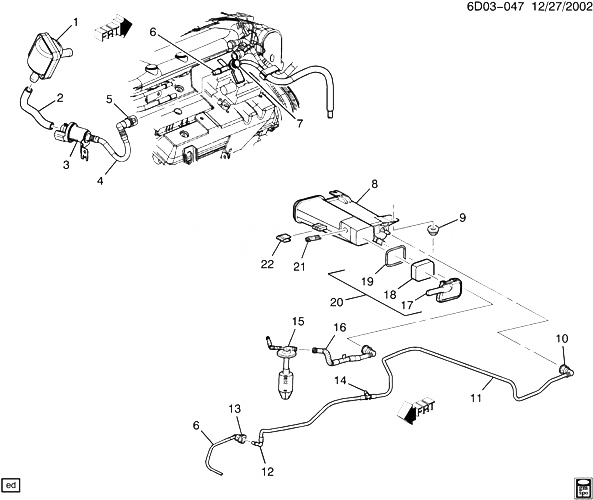

(6D03-047) - 2003-2004 D УГОЛЬНЫЙ ФИЛЬТР ДЕТАЛИ КОМПЛЕКТА (LY9/2.6M,LA3/3.2N) CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24461168 RESONATOR, EVAP EMIS CNSTR PURGE HOSE D (LY9, LA3) 2003-2004 01
002 24461166 HOSE, EVAP EMIS CNSTR C/VLV VAC D (LA3, LY9) 2003-2004 01
003 24461169 VALVE, EVAP EMIS CNSTR CONT (INCLS 4, 5) (ACDelco #214-1074) D (LY9, LA3) 2003-2004 01
004 HOSE, EVAP EMIS CNSTR C/VLV VAC (ЧАСТЬ OF 3) 2003-2004
005 CONNECTOR, EVAP EMIS CNSTR TUBE (ЧАСТЬ OF 3) 2003-2004
006 15801811 PIPE, EVAP EMIS CNSTR PURGE (INCLS 7, 13) (ЗАДНИЙ EVAP LINE) D69 (LA3, LY9) 2004-2004 01
006 25769211 PIPE, EVAP EMIS CNSTR PURGE (INCLS 7, 13) D 2003-2004 01
006 25769211 PIPE, EVAP EMIS CNSTR PURGE (INCLS 7, 13) D69 (LA3, LY9) 2004-2004 01
007 VALVE, EVAP EMIS CNSTR HARN SERV (ЧАСТЬ OF 6) 2003-2004
008 19177355 CANISTER, EVAP EMIS (CANISTER WITHOUT COVER OR FILTER) (ACDelco #215-644) D69 2003-2004 01
009 ГАЙКА, EVAP EMIS CNSTR BRKT 2003-2004
009 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) D 2003-2004 02
010 CONNECTOR, EVAP EMIS HOSE (ЧАСТЬ OF 11) 2003-2004
011 15801811 PIPE, EVAP EMIS CNSTR PURGE (INCLS 10, 12.14) (ЗАДНИЙ EVAP LINE) D 2004-2004 01
012 CONNECTOR, EVAP EMIS CNSTR PURGE PIPE (ЧАСТЬ OF 11) 2003-2004
013 CONNECTOR, EVAP EMIS HOSE (ЧАСТЬ OF 6) 2003-2004
014 FITTING, EVAP EMIS CNSTR PURGE PIPE (ЧАСТЬ OF 11) 2003-2004
015 VALVE, F/TNK VENT (INCLS 16) (ЧАСТЬ OF ТОПЛИВНЫЙ БАК ASM) 2003-2004
016 CONNECTOR, FUEL PIPE (TO EVAP EMIS CNSTR) (ЧАСТЬ OF 15) 2003-2004
017 COVER, EVAP EMIS CNSTR AIR INL OPG (ЧАСТЬ OF 20) 2003-2004
018 ФИЛЬТР, EVAP EMIS CNSTR AIR INL (ЧАСТЬ OF 20) 2003-2004
019 SEAL, EVAP EMIS CNSTR AIR INL OPG CVR (ЧАСТЬ OF 20) 2003-2004
020 19177364 FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (INCLS 17-19) (ACDelco #215-656) D69 2003-2004 01
021 25932573 VALVE, EVAP EMIS CNSTR VENT SOL (USED ON ASM 17114052) (ACDelco #214-2230) (MOUNTED IN CANISTER ASM) D 2004-2004 01
022 17114056 RETAINER, EVAP EMIS CNSTR VENT VLV DIAPH D 2003-2004 01
