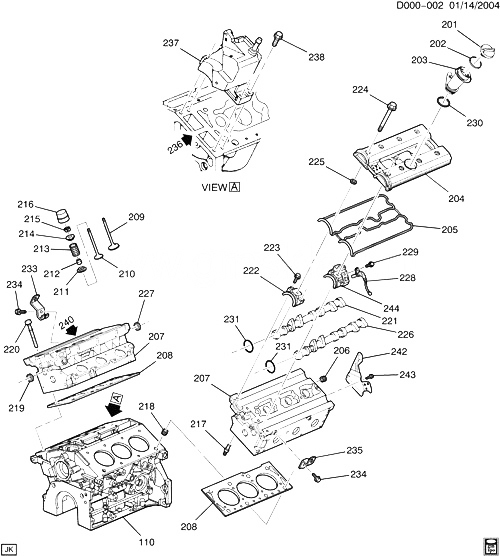

(D000-002) - 2003-2004 D ДВИГАТЕЛЬ В СБОРЕ-3.2L V6 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ ДЕТАЛИ КОМПЛЕКТА(LA3/3.2N) CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
110 24402852 ДВИГАТЕЛЬ, 3.2 L (196 CID) (CODE H4) D (LA3, M82) 2003-2004 01
110 24402852 ДВИГАТЕЛЬ, 3.2 L (196 CID) (MUST SWAP FLYКОЛЕСО, БОЛТS, СЦЕПЛЕНИЕ PILOT BRG) (CODE H4) D (LA3, M35) 2003-2004 01
201 24437483 CAP, OIL FIL (ACDelco #FC203) D (LA3) 2003-2004 01
202 90448217 SEAL, OIL FIL CAP (O RING) D (LA3) 2003-2004 01
203 90499462 TUBE, OIL FIL D (LA3) 2003-2004 01
204 55351452 COVER, CM/SHF (W/SEAL) (W/O OIL FILL HOLE) D (LA3) 2003-2004 01
204 55351453 COVER, CM/SHF (W/SEAL) (W/OIL FILL HOLE) D (LA3) 2003-2004 01
205 55351456 GASKET, CM/SHF CVR (1 PC GASKET) (USED W/55351452-53 COVERS) D (LA3) 2003-2004 02
206 11047651 PLUG, CYL HD OIL GAL (M10X1) (0.293) D (LA3) 2003-2004 03
207 55351120 HEAD, CYL (W/VLV) (INCLS 209, 210, 222, 244) D (LA3) 2003-2004 01
207 55351121 HEAD, CYL (W/VLV) (INCLS 209, 210, 222, 244) D (LA3) 2003-2004 01
208 55354629 GASKET, CYL HD D (LA3) 2003-2004 02
209 09240152 SEAT, INT VLV (ЧАСТЬ OF 207) (STD) (33.6X28.8MM) D (LA3) 2003-2004 12
209 90412277 VALVE, INT (ЧАСТЬ OF 207) (STD) D (LA3) 2003-2004 06
209 90528683 GUIDE, INT VLV (ЧАСТЬ OF 207) (O.S.) (0.20MM) D (LA3) 2003-2004 12
209 90528685 GUIDE, INT VLV (ЧАСТЬ OF 207) (O.S.) (0.40MM) D (LA3) 2003-2004 12
209 90528686 SEAT, INT VLV (ЧАСТЬ OF 207) (O.S.) D (LA3) 2003-2004 12
209 90572642 GUIDE, INT VLV (ЧАСТЬ OF 207) (STD) (10X5.25MM) D (LA3) 2003-2004 12
210 09128626 VALVE, EXH (ЧАСТЬ OF 207) (STD) D (LA3) 2003-2004 12
210 90502082 SEAT, EXH VLV (ЧАСТЬ OF 207) (STD) (29.9MM) D (LA3) 2003-2004 12
210 90528684 GUIDE, EXH VLV (ЧАСТЬ OF 207) (O.S.) (0.20MM) D (LA3) 2003-2004 12
210 90528687 SEAT, EXH VLV (ЧАСТЬ OF 207) (O.S.) (30.1MM) D (LA3) 2003-2004 12
210 90528688 GUIDE, EXH VLV (ЧАСТЬ OF 207) (O.S.) (0.40MM) D (LA3) 2003-2004 12
210 90572643 GUIDE, EXH VLV (ЧАСТЬ OF 207) (STD) (10.00X5.30MM) D (LA3) 2003-2004 12
211 90410740 SEAT, VLV SPR D (LA3) 2003-2004 24
212 90410741 SEAL, VLV STEM OIL D (LA3) 2003-2004 24
213 90448050 ПРУЖИНА, VLV D (LA3) 2003-2004 24
214 90354649 RETAINER, VLV SPR (0.309) D (LA3) 2003-2004 24
215 90354648 KEY, VLV STEM D (LA3) 2003-2004 48
216 90570967 LIFTER, VLV (ACDelco #HL133) D (LA3) 2003-2004 24
217 90572700 ORIFICE, CYL HD OIL GAL AIR BL (M12X1.5, E10TORX, 35LG) (THRU БОЛТ) D (LA3) 2003-2004 02
218 90353654 PIN, CYL HD LOC (0.413) D (LA3) 2003-2004 06
219 11094191 PLUG, CYL HD CORE HOLE (25MM DIA) (O.S.) D (LA3) 2003-2004 04
220 90466480 БОЛТ, CYL HD (M11X1.25X105) D (LA3) 2003-2004 16
221 90540003 CAMSHAFT, INT D (LA3) 2003-2004 02
222 CAP, CM/SHF BRG (ЧАСТЬ OF 207) 2003-2004
223 11093782 БОЛТ, CM/SHF BRG CAP (E10, M6X40) D (LA3) 2003-2004 16
224 11517669 БОЛТ-HFH, M6X1X18, 16 THD, 14.2 OD, 9.8, 7114M (БОЛТ, CM/SHF HSG CVR) (ACDelco #11517669) 2003-2004 16
225 90411826 SEAL, CM/SHF CVR БОЛТ (O RING) D (LA3) 2003-2004 16
226 24456976 CAMSHAFT, EXH (CODE J) D (LA3) 2003-2004 02
227 90502542 PLUG, CYL HD CORE HOLE (24MM DIA) D (LA3) 2003-2004 03
228 09146032 SENSOR, CM/SHF POSN D (LA3) 2003-2004 01
229 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (БОЛТ, KNOCK SEN) (ACDelco #11570082) 2003-2004 01
230 90448217 SEAL, OIL FIL CAP (O RING) D (LA3) 2003-2004 01
231 90180529 SEAL, CM/SHF FRT OIL (0.529) D (LA3) 2003-2004 04
233 BRACKET, ENG LIFT (RIGHT ЗАДНИЙ) 2003-2004
234 11508476 БОЛТ, M8X1.25X25 9.8 (БОЛТ, ENG LIFT BRGT) 2003-2004 02
235 BRACKET, ENG LIFT (LEFT FRONT) 2003-2004
236 01052943 SEALANT, LOCTITE-518, 50ML TUBE (SEALER, PCV OIL SEP) D 2003-2004 AR
237 90502186 SEPARATOR, PCV OIL (1.750) D (LA3) 2003-2004 01
238 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (БОЛТ, PCV OIL SEP) D 2003-2004 01
240 SEALER, CM/SHF CVR 2003-2004
242 BRACKET, ENG LIFT 2003-2004
243 90529713 БОЛТ, ENG LIFT BRKT (M10X1.5X30, TORX) D (LA3) 2003-2004 02
244 CAP, CM/SHF BRG (SPECIAL CAMSHAFT/CAP ШЛАНГИ FOR CM/SHF SENSOR) (ЧАСТЬ OF 207) 2003-2004
