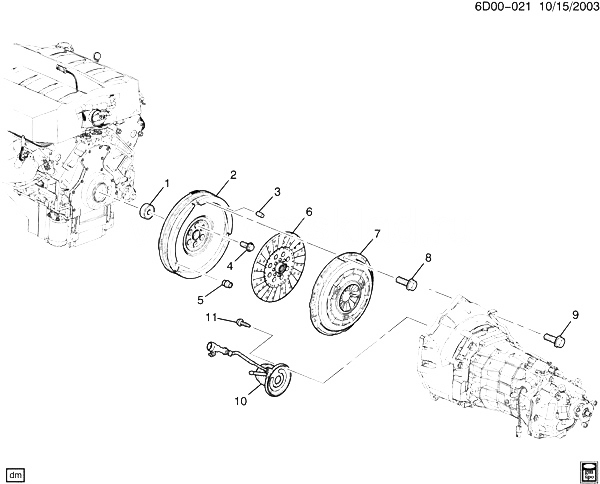

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
DN (M12) |
2004-2007 |
01 |
| 002 |
24230631 |
FLYКОЛЕСО, ENG |
D (LS6, M12) |
2004-2005 |
01 |
| 003 |
03890191 |
WEIGHT, FLYWHL (BARREL-SHAPED PIN, .625 LONG) |
D (LS6, M12) |
2004-2005 |
AR |
| 004 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| D (LS6) |
2004-2004 |
06 |
|
| 005 |
00274584 |
PIN, GROOVE/F/.312X.375 CZ 0.375 LENGTH (FLYWHL) |
|
2004-2007 |
AR |
| 006 |
|
PLATE, CLU DRVN (*KIT1) |
|
2004-2007 |
|
| 007 |
24237689 |
PLATE, CLU PRESS DRVN (W/CVR) (*KIT1) |
DN (M12) |
2004-2007 |
01 |
| 008 |
12561465 |
БОЛТ, CLU PRESS PLT (HFH M10X1.5X25 10.9 7114M HDR PT, 17.3 FLANGE) |
DN (LS6, M12) |
2004-2005 |
06 |
| 009 |
11515768 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (TRANS)
|
2004-2007 |
05 |
|
| 010 |
12587376 |
CYLINDER, CLU ACTR |
DN (M12) |
2004-2007 |
01 |
| 011 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (CLU ACTR)
|
2004-2007 |
02 |
|
| K01 |
24237689 |
PLATE, CLU PRESS DRVN (W/CVR) (INCLS 6, 7) |
DN (M12) |
2004-2007 |
01 |
