| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

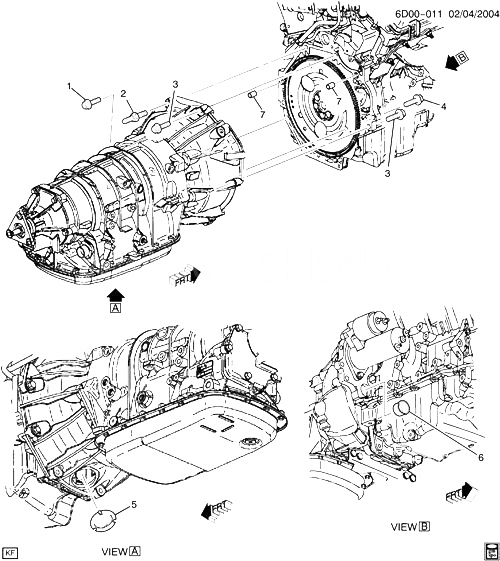

| 001 |
11515769 |
БОЛТ, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANSAXLE)
|
2003-2004 |
03 |
|
| 002 |
11519145 |
STUD, TRANSAXLE (M8X1.25X20, M12X1.75X45, 26.6) |
D (M82) |
2003-2004 |
02 |
| 003 |
11515778 |
БОЛТ, HFH, M12X1.75X45, 40 THD, 26.6 OD, 10.9, 7114M, P-POINT. (TRANSAXLE)
|
2003-2004 |
03 |
|
| 004 |
11519221 |
БОЛТ, HEX HD, W/FL WA, M10X1.5X25, 13 THD, 10.9 (TRANSAXLE T/CV) |
|
2003-2004 |
03 |
| 004 |
89021297 |
ADHESIVE/SEALANT, THREADLOCKER HI STRENGTH 10ML ERI (SEALANT)
|
2003-2004 |
AR |
|
| 005 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| D (M82) |
2003-2004 |
01 |
|
| 006 |
90469929 |
PLUG, ENG BLK CORE HOLE (37.5MM) (0.679) |
D (LA3) |
2003-2004 |
01 |
| 006 |
90469929 |
PLUG, ENG BLK CORE HOLE (37.5MM) (0.679) |
D (LY9) |
2003-2004 |
01 |
| 007 |
90351708 |
PIN, TRANS LOC (OD 18, 5MM X12MM LONG) (0.219) |
D (LA3, LY9) |
2003-2004 |
02 |
