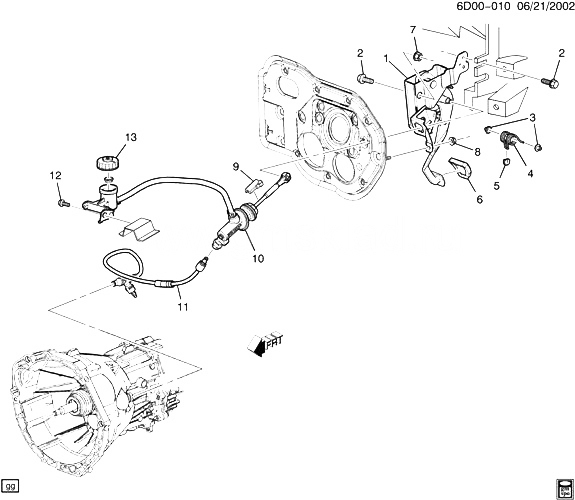

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
21995782 |
PEDAL, CLU (W/BRKT) (INCLS 3-6) (INCLS PAD) |
D (M35) |
2003-2004 |
01 |
| 002 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (CLU PED) (T/W 12345493 REPLCS 25534835)
|
2003-2005 |
02 |
|
| 003 |
|
BUSHING, CLU PED RTN SPR (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 004 |
|
ПРУЖИНА, CLU PED RTN (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 005 |
|
BUSHING, CLU PED RTN SPR GDE (ЧАСТЬ OF 1) |
|
2004-2005 |
|
| 006 |
88996614 |
PAD, CLU PED (ЧАСТЬ OF 1) |
DM (M35) |
2004-2004 |
01 |
| 007 |
25632772 |
ГАЙКА, W/CON WA, M8X1.25, 6.5THK, 25.4 O.D., 10, ZF (CLU PED BRKT BR)
|
2003-2005 |
02 |
|
| 008 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CLU (W/BRKT))
|
2003-2005 |
01 |
|
| 009 |
11516184 |
SWITCH, CLU PED POSN (AT MASTER CYL) (ACDelco #D2230C)
| D (M35) |
2003-2004 |
01 |
|
| 010 |
12576608 |
ACTUATOR, CLU (INCLS 11, 13) |
D (M35) |
2003-2004 |
01 |
| 011 |
25720463 |
PIPE, CLU ACTR CYL BL VLV (ЧАСТЬ OF 10) |
D (M35) |
2003-2004 |
01 |
| 012 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CLU)
|
2003-2005 |
01 |
|
| 013 |
88996630 |
CAP, CLU M/CYL RSVR (ЧАСТЬ OF 10) |
D (M35) |
2003-2004 |
01 |
