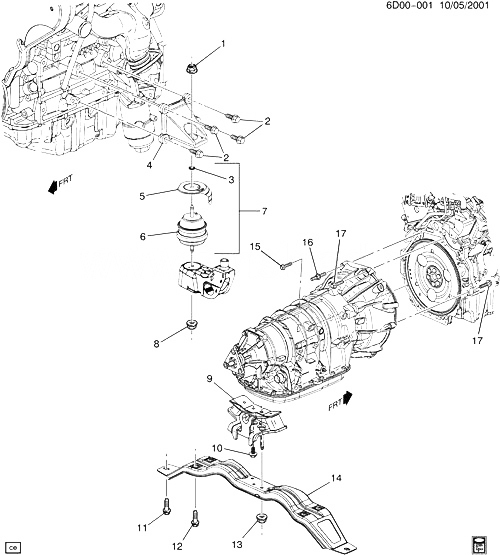

(6D00-001) - 2003-2004 D69 ДВИГАТЕЛЬ-ТРАНСМИССИЯ-КРЕПЛЕНИЕ-V6 (LA3/3.2N,LY9/2.6M) CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11517780 ГАЙКА, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT) 2003-2004 02
002 11516328 БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (ENG MT BRKT) 2003-2004 08
003 11502737 ГАЙКА, PUSH ON, M12X1.75, PC (ЧАСТЬ OF 7) 2003-2004 01
004 25737319 BRACKET, ENG MT D (LA3, LY9) 2003-2004 01
004 25737320 BRACKET, ENG MT D (LA3, LY9) 2003-2004 01
005 SHIELD, ENG MT HT (ЧАСТЬ OF 7) 2003-2004
006 MOUNT, ENG (ЧАСТЬ OF 7) 2003-2004
007 25744159 MOUNT, ENG (INCLS 3, 5, 6) D (LA3, LY9) 2003-2004 02
008 11517780 ГАЙКА, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT FRM SI) 2003-2004 02
009 25736446 MOUNT, TRANS RR (W/OFFSET MTG STUDS) D (LA3, LY9, M35) 2003-2004 01
009 25756630 MOUNT, TRANS RR (W/STRAIGHT MTG STUDS) D (LA3, LY9, M82) 2004-2004 01
010 11515767 БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRANS MT) (T/W 12345493) 2003-2004 02
011 11519836 SCREW, PAN, M10X1.5X35, 33.5 THD, 20 OD, 10.9, 6138M, MACH (SCREW, PAN, M10X1.5X35, 33.5 THD, 20 OD, 10.9, 6138M, MACH) (OUTBOARD POSITION) 2003-2004 02
012 11517383 БОЛТ, HEX W/CON SPR WASH, M10X1.5X55, 28 OD, 37 THD, 10.9, 7114M (INBOARD POSITION) 2003-2004 04
013 11516754 ГАЙКА, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (TRANS MT BRKT) 2003-2004 02
014 25685002 BRACKET, TRANS RR MT (OFFSET MTG HOLES) D (M35) 2003-2004 01
014 25741437 BRACKET, TRANS RR MT (STRAIGHT MTG HOLES) D (M82) 2004-2004 01
015 11515769 БОЛТ, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANS) 2003-2004 03
016 11519145 STUD, TRANSAXLE (M8X1.25X20, M12X1.75X45, 26.6) D 2003-2004 03
017 11515778 БОЛТ, HFH, M12X1.75X45, 40 THD, 26.6 OD, 10.9, 7114M, P-POINT. (TRANS) 2003-2004 03
