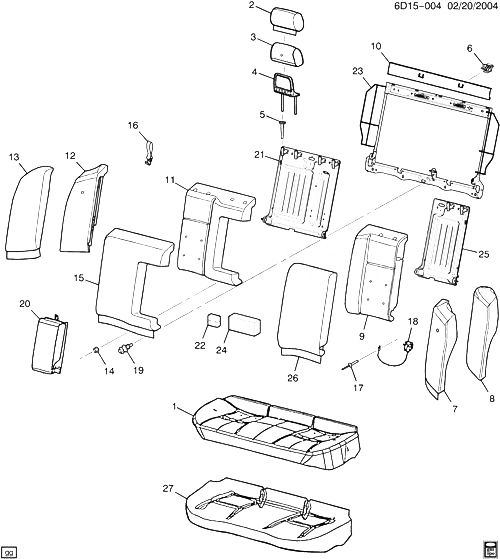

(6D15-004) - 2003 DG69 ЗАДНЕЕ СИДЕНЬЕ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88896778 CUSHION, R/SEAT D69 2003-2007 01
003 88897671 PAD, R/SEAT H/RST D69 2003-2006 02
004 88897672 SUPPORT, R/SEAT H/RST (GOES INTO ЗАДНИЙ BACK) D69 2003-2007 02
005 19122625 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) (11.376) D69 (19I) 2003-2007 02
005 19122627 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (11.376) D69 (19I) 2003-2007 02
005 88941190 GUIDE, R/SEAT H/RST (PEWTER) (W/O BUTTON) (16.718) D (69I) 2003-2003 02
005 88994275 GUIDE, R/SEAT H/RST (PEWTER) (W/BUTTON) (11.376) D (69I) 2003-2003 01
005 88994276 GUIDE, R/SEAT H/RST (NEUTRAL) (W/BUTTON) (11.376) D69 (70I) 2003-2005 02
005 88994279 GUIDE, R/SEAT H/RST (NEUTRAL) (W/O BUTTON) (11.376) D69 (70I) 2003-2005 02
005 88994730 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) D (13I) 2003-2003 02
005 88994731 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) D (13I) 2003-2003 02
006 16754704 CLIP, R/SEAT CUSH CVR (ЧАСТЬ OF 10) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) D69 2003-2007 05
007 88896183 COVER, R/SEAT BK SI CUSH (EBONY) D (19C) 2003-2003 01
007 88952609 COVER, R/SEAT BK SI CUSH (PEWTER) D (692) 2003-2003 01
007 88952610 COVER, R/SEAT BK SI CUSH (NEUTRAL) D (702) 2003-2003 01
007 88952611 COVER, R/SEAT BK SI CUSH (GRAY) D (132) 2003-2003 01
007 88992680 COVER, R/SEAT BK SI CUSH (EBONY) D (192) 2003-2003 01
008 88896780 CUSHION, R/SEAT BK D69 2003-2007 01
009 88896780 CUSHION, R/SEAT BK D69 2003-2007 01
010 88896784 COVER, R/SEAT BK CUSH OPG FIN (INCLS 6) (PEWTER) (**VPI 1-877-846-8243) D (69C, 692) 2003-2003 01
010 88992658 COVER, R/SEAT BK CUSH OPG FIN (INCLS 6) (EBONY) D69 (19I) 2003-2007 01
011 88896779 CUSHION, R/SEAT BK D69 2003-2007 01
012 88896779 CUSHION, R/SEAT BK D69 2003-2007 01
013 88896177 COVER, R/SEAT BK SI CUSH (PEWTER) D (69C) 2003-2003 01
013 88952605 COVER, R/SEAT BK SI CUSH (PEWTER) D (692) 2003-2003 01
013 88952606 COVER, R/SEAT BK SI CUSH (NEUTRAL) D (702) 2003-2003 01
013 88952607 COVER, R/SEAT BK SI CUSH (GRAY) D (132) 2003-2003 01
013 88992671 COVER, R/SEAT BK SI CUSH (EBONY) D (19C) 2003-2003 01
013 88992679 COVER, R/SEAT BK SI CUSH (EBONY) D (192) 2003-2003 01
014 11517068 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (R/SEAT BK CUSH) 2003-2007 04
015 88896193 COVER, R/SEAT BK CUSH (GRAY) DG, DM (AM9, 132) (EXC A82) 2003-2003 01
015 88896195 COVER, R/SEAT BK CUSH (PEWTER) DG (69C) 2003-2003 01
015 88952597 COVER, R/SEAT BK CUSH (PEWTER) DG (692) 2003-2003 01
015 88952597 COVER, R/SEAT BK CUSH (PEWTER) DM (AM9, 692) 2003-2003 01
015 88952599 COVER, R/SEAT BK CUSH (GRAY W/PEWTER) (FOR 2ND DES SEE 88994830) D (AM9, 132) (1ST DES) 2003-2003 01
015 88992670 COVER, R/SEAT BK CUSH (EBONY) DG (19C) 2003-2003 01
015 88994830 COVER, R/SEAT BK CUSH (GRAY W/EBONY) (FOR 1ST DES SEE 88952599) D (132) (EXC A82) (2ND DES) 2003-2003 01
015 88994831 COVER, R/SEAT BK CUSH (EBONY) D (AM9, 192) (EXC A82) 2003-2003 01
015 88994832 COVER, R/SEAT BK CUSH (NEUTRAL) D (AM9, 702) (EXC A82) 2003-2003 01
015 88994840 COVER, R/SEAT BK CUSH (GRAY W/EBONY) (FOR 1ST DES SEE 88898481) D (132) (2ND DES) 2003-2003 01
016 88897674 STRAP, R/SEAT PULL (GRAY) D (13I) 2003-2003 02
016 88897675 STRAP, R/SEAT PULL (PEWTER) (**VPI 1-877-846-8243) D (69I) 2003-2003 02
016 88897676 STRAP, R/SEAT PULL (NEUTRAL) D69 (70I) 2003-2005 02
017 09440392 RIVET, POP, DOME HEAD, 3/16X.430, STL, ZC (R/SEAT BK CUSH LK) 2003-2007 04
018 88949046 LOCK, R/SEAT BK CUSH (W/CABLE) D69 2003-2007 02
019 88952646 БОЛТ, R/SEAT BK CUSH D69 2003-2007 02
020 ARMREST, R/SEAT (СМ. ГРУППУ 15.000 ПОДЛОКОТНИК ЗАДНЕГО СИДЕНЬЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
021 88896776 PANEL, R/SEAT BK CUSH D (EXC A82) 2003-2003 01
022 88949039 SPACER, R/SEAT D69 2003-2007 02
023 88896775 РАМА, R/SEAT BK CUSH DG 2003-2003 01
023 88896775 РАМА, R/SEAT BK CUSH DM (AM9) 2003-2003 01
024 88952632 SPACER, R/SEAT (ANTI-RATTLE) D69 2003-2007 01
025 88896777 PANEL, R/SEAT BK CUSH D (EXC A82) 2003-2003 01
026 88896189 COVER, R/SEAT BK CUSH (EBONY) D (19C) 2003-2003 01
026 88952601 COVER, R/SEAT BK CUSH (PEWTER) DG (692) 2003-2003 01
026 88952601 COVER, R/SEAT BK CUSH (PEWTER) DM (AM9, 692) 2003-2003 01
026 88952602 COVER, R/SEAT BK CUSH (NEUTRAL) D (AM9, 702) 2003-2003 01
026 88952603 COVER, R/SEAT BK CUSH (GRAY W/PEWTER) (FOR 2ND DES SEE 88992654) DG (132) (1ST DES) 2003-2003 01
026 88952603 COVER, R/SEAT BK CUSH (GRAY W/PEWTER) (FOR 2ND DES SEE 88992654) DM (AM9, 132) (1ST DES) 2003-2003 01
026 88992654 COVER, R/SEAT BK CUSH (14.924) (GRAY W/EBONY) (FOR 1ST DES SEE 88952603) DG (132) (2ND DES) 2003-2003 01
026 88992654 COVER, R/SEAT BK CUSH (14.924) (GRAY W/EBONY) (FOR 1ST DES SEE 88952603) DM (AM9, 132) (2ND DES) 2003-2003 01
026 88992676 COVER, R/SEAT BK CUSH (EBONY) D (AM9, 192) 2003-2003 01
027 88896207 COVER, R/SEAT CUSH (EBONY) D (19C) 2003-2003 01
027 88898483 COVER, R/SEAT CUSH (PEWTER) D (692) 2003-2003 01
027 88898485 COVER, R/SEAT CUSH (GRAY W/PEWTER) (FOR 2ND DES SEE 88996048) D (132) (1ST DES) 2003-2003 01
027 88996048 COVER, R/SEAT CUSH (GRAY) (GRAY W/EBONY) (FOR 1ST DES SEE 88898485) D (132) (2ND DES) 2003-2003 01
027 88996049 COVER, R/SEAT CUSH (EBONY) D (192) 2003-2003 01
027 88996050 COVER, R/SEAT CUSH (NEUTRAL) D (702) 2003-2003 01
