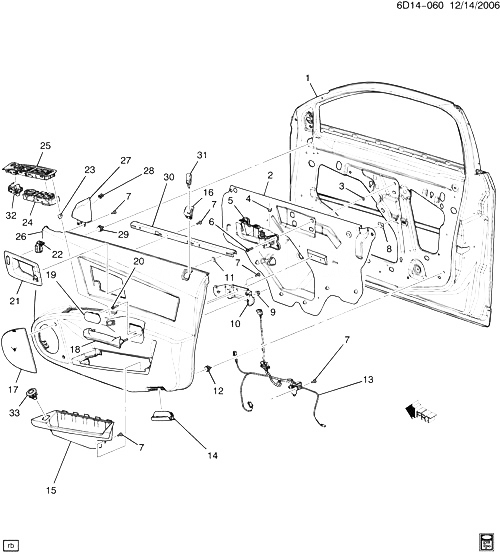

(6D14-060) - 2003-2004 DR,DU69 ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 DOOR, FRT SI (СМ. ГРУППУ 10.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
002 25758247 DEFLECTOR, FRT S/D WAT D69 2003-2007 01
003 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2003-2007 01
004 CLIP, FRT S/D I/S HDL ROD (ЧАСТЬ OF 5) 2003-2004
005 25759728 HANDLE, FRT S/D I/S (INCLS 4) (HIGH LUSTER) D 2003-2003 01
006 22527475 SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (FRT S/D I/S HDL) 2003-2007 01
007 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (ЧАСТЬ OF 26) 2003-2007 12
008 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D69 2003-2007 04
009 11503749 ГАЙКА, M6X1 (ЧАСТЬ OF 26) (ACDelco #11503749) 2003-2007 02
010 88952742 BRACKET, FRT S/D PULL HDL (ЧАСТЬ OF 26) D 2003-2007 01
011 20049623 ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (ЧАСТЬ OF 26) 2003-2007 02
013 25702496 HARNESS, S/D WRG (ЧАСТЬ OF 26) D69 2003-2007 02
014 12482519 ЛАМПА, CTSY (ЧАСТЬ OF 26) (IN DOOR) D69 2003-2006 02
015 88981454 POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (GRAY) (W/TRUNK SWITCH HOLE) DR, DU (D26, 13I) (EXPORT) 2003-2003 01
015 88981455 POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (PEWTER) (W/TRUNK SWITCH HOLE) DR, DU (D26, 69I) (EXPORT) 2003-2003 01
015 88981456 POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (NEUTRAL) (W/TRUNK SWITCH HOLE) DR, DU (D26, 70I) (EXPORT) 2003-2003 01
015 88983943 POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (EBONY) (W/TRUNK SWITCH HOLE) DR, DU (D26, 19I) (EXPORT) 2003-2003 01
016 88952714 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (GRAY) D (13I) 2003-2007 02
016 88952715 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (PEWTER) D (69I) 2003-2003 02
016 88952716 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (NEUTRAL) D (70I) 2003-2003 02
016 88983938 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (EBONY) (SATIN CHROME PULL CAP) D69 (19I) 2003-2004 02
017 88952717 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (GRAY) DR, DU (13I) (EXPORT) 2003-2003 02
017 88952718 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (PEWTER) DR, DU (69I) (EXPORT) 2003-2003 02
017 88952719 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (NEUTRAL) DR, DU (70I) (EXPORT) 2003-2003 02
017 88983939 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (EBONY) DR, DU (19I) (EXPORT) 2003-2003 02
018 88982081 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (PEWTER) (КРАСКАED) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES SEE 88983942) D (13I, 19I, 69I, 70I) (1ST DES) 2003-2003 02
018 88983942 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES SEE 88982081) D (13I, 19I, 69I, 70I) (2ND DES) 2003-2003 02
018 89041932 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (PEWTER) (W/FAUX HYBRID WOOD INSERTS) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (2ND DES 89041933) D (13I, 19I, 70I) (1ST DES) 2003-2003 02
018 89041933 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (EBONY) (W/FAUX HYBRID WOOD INSERTS) (USE IF ЧАСТЬ IS EBONY) (1ST DES 89041932) D (13I, 19I, 70I) (2ND DES) 2003-2003 02
019 25727743 COVER, FRT S/D T/PNL (GRAY) D (13I) 2003-2004 02
019 25727744 COVER, FRT S/D T/PNL (PEWTER) (**VPI 1-877-846-8243) D (69I) 2003-2003 02
019 25727745 COVER, FRT S/D T/PNL (NEUTRAL) D (70I) 2003-2004 02
019 25748814 COVER, FRT S/D T/PNL (EBONY) D (19I) 2003-2004 02
020 03539184 БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) D69 2003-2007 04
021 25752962 BEZEL, FRT S/D I/S HDL (ЧАСТЬ OF 26) (EBONY) (WHEN REPLACING 2003, PEWTER MUST REPLACE ALL 4 BEZELS FRT/RR RH/LH) D 2003-2003 01
022 25721241 SWITCH, DR LK (ЧАСТЬ OF 26) (PEWTER) D (69I) 2003-2003 02
022 25752613 SWITCH, DR LK (ЧАСТЬ OF 26) (EBONY) D69 2003-2007 02
023 RETAINER, FRT S/D ACSRY SW MT PLT (ЧАСТЬ OF 26) 2003-2004
024 10363780 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 26) (EBONY) (VEHICLES W/EBONY MASTER SWITCH) (1ST DES 25739748)) DR, DU (A45, D26) (2ND DES) (EXPORT) 2003-2003 01
024 25739748 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 26) (PEWTER) (VEHICLES W/PEWTER MASTER SWITCH) (2ND DES 10363780) DR, DU (A45, D26) (1ST DES) (EXPORT) 2003-2003 01
025 88952729 BEZEL, SI WDO SW (ЧАСТЬ OF 26) (**VPI 1-877-846-8243) (USE WITH VERY DARK PEWTER) (FOR 2ND DES SEE 88983973) DR, DU (D26) (EXC A45) (1ST DES) (EXPORT) 2003-2003 01
025 88983976 BEZEL, SI WDO SW (ЧАСТЬ OF 26) (EBONY) (USED W/WOOD HANDLE) (USE WITH EBONY) (FOR 1ST DESIGN SEE 88952732) DR, DU (2ND DES) (EXPORT) 2003-2003 01
026 88981646 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DK PEWTER TRIM) (FOR 2ND DES SEE 88983979) D (13I) (1ST DES) 2003-2003 01
026 88981647 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (PEWTER) DR, DU (69I) (EXPORT) 2003-2003 01
026 88981648 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (NEUTRAL) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DK PEWTER TRIM) (FOR 2ND DES SEE 88983980) D (70I) (1ST DES) 2003-2003 01
026 88983935 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (EBONY) D (19I) 2003-2004 01
026 88983979 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981646) D (13I) (2ND DES) 2003-2003 01
026 88983980 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (NEUTRAL) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981648) D (70I) (2ND DES) 2003-2003 01
027 88952727 PANEL, FRT S/D UPR FRT TR (INCLS 28) (ЧАСТЬ OF 26) (GRAY) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES 88983970) D (1ST DES) 2003-2003 01
027 88983970 PANEL, FRT S/D UPR FRT TR (INCLS 28) (ЧАСТЬ OF 26) (EBONY) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES 88952727) D (2ND DES) 2003-2003 01
028 RETAINER, FRT S/D UPR TR (PUSH ON) (ЧАСТЬ OF 26, 27) 2003-2004
030 CHANNEL, FRT S/D WDO (ЧАСТЬ OF 26) 2003-2004
031 25731971 KNOB, FRT S/D LKG ROD (PEWTER) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25743848) D (69I) (1ST DES) 2003-2003 02
031 25731972 KNOB, FRT S/D LKG ROD (NEUTRAL) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25751122) D (70I) (1ST DES) 2003-2003 02
031 25731973 KNOB, FRT S/D LKG ROD (GRAY) (**VPI 1-877-846-8243) (CARS W/RED SNAP ON LOCK KNOB) (FOR 2ND DES SEE 25751121) D (13I) (1ST DES) 2003-2003 02
031 25751121 KNOB, FRT S/D LKG ROD (GRAY) (CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (FOR 1ST DES SEE 25731973) D (13I) (2ND DES) 2003-2003 02
031 25751122 KNOB, FRT S/D LKG ROD (NEUTRAL) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731972) D (70I) (2ND DES) 2003-2003 02
031 25751206 KNOB, FRT S/D LKG ROD (PEWTER) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731971) D (69I) (2ND DES) 2003-2003 02
031 25751335 KNOB, FRT S/D LKG ROD (EBONY) D69 (19I) 2003-2005 02
032 25749090 SWITCH, D/SEAT ADJR MEMORY (ЧАСТЬ OF 26) (EBONY) DR, DU (EXPORT) 2003-2003 01
033 25721203 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (NEUTRAL) (ACDelco #D1422E) DR, DU69 (D26, DR5, 70I) (EXPORT) 2003-2003 01
033 25721204 SWITCH, R/CMPT LID REL (USED ON RH AND LH FRT DRS) (ЧАСТЬ OF 26) (PEWTER) (ACDelco #D1423E) D (DL7, 69I) 2003-2003 01
033 25721204 SWITCH, R/CMPT LID REL (USED ON RH AND LH FRT DRS) (ЧАСТЬ OF 26) (PEWTER) (ACDelco #D1423E) DR, DU (D26, DR5, 69I) (EXPORT) 2003-2003 02
033 25721205 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (GRAY) (ACDelco #D1424E) DR, DU (D26, DR5, 13I) (EXPORT) 2003-2003 01
033 25750522 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (EBONY) (ACDelco #D1481E) D (DL7, DR5, 19I) 2003-2003 01
033 25750522 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (EBONY) (ACDelco #D1481E) DR, DU (D26, 19I) (EXPORT) 2003-2003 01
