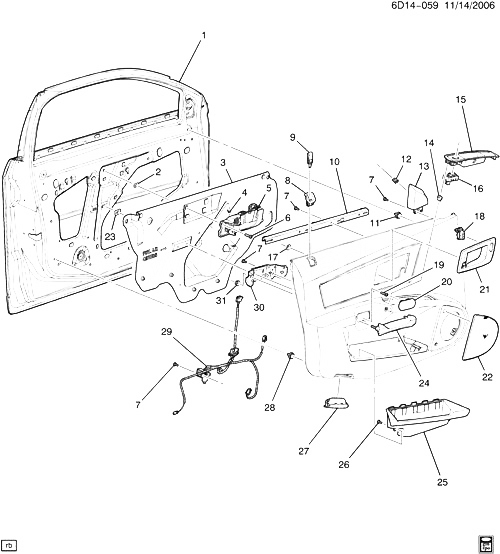

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
DOOR, FRT SI (СМ. ГРУППУ 10.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2007 |
|
| 002 |
03907444 |
ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) |
|
2003-2007 |
01 |
| 003 |
25758248 |
DEFLECTOR, FRT S/D WAT |
D69 |
2003-2007 |
01 |
| 004 |
|
CLIP, FRT S/D I/S HDL ROD (ЧАСТЬ OF 5) |
|
2003-2004 |
|
| 005 |
25759729 |
HANDLE, FRT S/D I/S (INCLS 4) (HIGH LUSTER)
| D |
2003-2003 |
01 |
|
| 006 |
22527475 |
SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (FRT S/D I/S HDL) |
|
2003-2007 |
01 |
| 007 |
11509253 |
SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (ЧАСТЬ OF 26) |
|
2003-2007 |
12 |
| 008 |
88952714 |
BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (GRAY) |
D (13I) |
2003-2007 |
02 |
| 008 |
88952715 |
BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (PEWTER) |
D (69I) |
2003-2003 |
02 |
| 008 |
88952716 |
BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (NEUTRAL) |
D (70I) |
2003-2003 |
02 |
| 008 |
88983938 |
BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (EBONY) (SATIN CHROME PULL CAP) |
D69 (19I) |
2003-2004 |
02 |
| 009 |
25731971 |
KNOB, FRT S/D LKG ROD (PEWTER) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25743848) |
D (69I) (1ST DES) |
2003-2003 |
02 |
| 009 |
25731972 |
KNOB, FRT S/D LKG ROD (NEUTRAL) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25751122) |
D (70I) (1ST DES) |
2003-2003 |
02 |
| 009 |
25731973 |
KNOB, FRT S/D LKG ROD (GRAY) (**VPI 1-877-846-8243) (CARS W/RED SNAP ON LOCK KNOB) (FOR 2ND DES SEE 25751121) |
D (13I) (1ST DES) |
2003-2003 |
02 |
| 009 |
25751121 |
KNOB, FRT S/D LKG ROD (GRAY) (CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (FOR 1ST DES SEE 25731973)
| D (13I) (2ND DES) |
2003-2003 |
02 |
|
| 009 |
25751122 |
KNOB, FRT S/D LKG ROD (NEUTRAL) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731972)
| D (70I) (2ND DES) |
2003-2003 |
02 |
|
| 009 |
25751206 |
KNOB, FRT S/D LKG ROD (PEWTER) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731971) |
D (69I) (2ND DES) |
2003-2003 |
02 |
| 009 |
25751335 |
KNOB, FRT S/D LKG ROD (EBONY)
| D69 (19I) |
2003-2005 |
02 |
|
| 010 |
|
CHANNEL, FRT S/D WDO (ЧАСТЬ OF 26) |
|
2003-2004 |
|
| 012 |
|
RETAINER, FRT S/D UPR TR (PUSH ON) (ЧАСТЬ OF 13, 26) |
|
2003-2004 |
|
| 013 |
88952726 |
PANEL, FRT S/D UPR FRT TR (ЧАСТЬ OF 26) (PEWTER) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES 88983971) |
D (1ST DES) |
2003-2003 |
01 |
| 013 |
88983971 |
PANEL, FRT S/D UPR FRT TR (ЧАСТЬ OF 26) (EBONY) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES 88952726) |
D (2ND DES) |
2003-2003 |
01 |
| 014 |
|
RETAINER, FRT S/D ACSRY SW MT PLT (ЧАСТЬ OF 26) |
|
2003-2004 |
|
| 015 |
88952731 |
BEZEL, SI WDO SW (ЧАСТЬ OF 26) (FRT S/D) (USE WITH VERY DARK PEWTER) (FOR 2ND DES SEE 88983975) |
DR, DU (A45, D26) (EXC B19) (1ST DES) (EXPORT) |
2003-2003 |
01 |
| 015 |
88952732 |
BEZEL, SI WDO SW (ЧАСТЬ OF 26) (USE WITH VERY DARK PEWTER) (FOR 2ND DES SEE 88983976) |
DR, DU (1ST DES) (EXPORT) |
2003-2003 |
01 |
| 015 |
88983975 |
BEZEL, SI WDO SW (ЧАСТЬ OF 26) (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) (USE WITH EBONY) (FOR 1ST DESIGN SEE 88952731) |
DR, DU69 (A45, B19, D26, 70I) (2ND DES) (EXPORT) |
2003-2003 |
01 |
| 015 |
88983975 |
BEZEL, SI WDO SW (ЧАСТЬ OF 26) (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) (USE WITH EBONY) (FOR 1ST DESIGN SEE 88952731) |
DR, DU69 (A45, D26, 13I) (2ND DES) (EXPORT) |
2003-2003 |
01 |
| 016 |
25750263 |
SWITCH, SI WDO (ЧАСТЬ OF 26) (EBONY) (FRT)
| DR, DU (EXPORT) |
2003-2003 |
01 |
|
| 017 |
20049623 |
ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (ЧАСТЬ OF 26) |
|
2003-2007 |
02 |
| 018 |
25721241 |
SWITCH, DR LK (ЧАСТЬ OF 26) (PEWTER) |
D (69I) |
2003-2003 |
02 |
| 018 |
25752613 |
SWITCH, DR LK (ЧАСТЬ OF 26) (EBONY) |
D69 |
2003-2007 |
02 |
| 019 |
03539184 |
БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) |
D69 |
2003-2007 |
04 |
| 020 |
25727743 |
COVER, FRT S/D T/PNL (GRAY) |
D (13I) |
2003-2004 |
02 |
| 020 |
25727744 |
COVER, FRT S/D T/PNL (PEWTER) (**VPI 1-877-846-8243) |
D (69I) |
2003-2003 |
02 |
| 020 |
25727745 |
COVER, FRT S/D T/PNL (NEUTRAL)
| D (70I) |
2003-2004 |
02 |
|
| 020 |
25748814 |
COVER, FRT S/D T/PNL (EBONY)
| D (19I) |
2003-2004 |
02 |
|
| 021 |
25752963 |
BEZEL, FRT S/D I/S HDL (ЧАСТЬ OF 26) (EBONY) (WHEN REPLACING 2003, PEWTER MUST REPLACE ALL 4 BEZELS FRT/RR RH/LH)
| D |
2003-2003 |
01 |
|
| 022 |
88952717 |
GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (GRAY) |
DR, DU (13I) (EXPORT) |
2003-2003 |
02 |
| 022 |
88952718 |
GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (PEWTER) |
DR, DU (69I) (EXPORT) |
2003-2003 |
02 |
| 022 |
88952719 |
GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (NEUTRAL) |
DR, DU (70I) (EXPORT) |
2003-2003 |
02 |
| 022 |
88983939 |
GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (EBONY) |
DR, DU (19I) (EXPORT) |
2003-2003 |
02 |
| 023 |
20310739 |
ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690)
| D69 |
2003-2007 |
04 |
|
| 024 |
88982081 |
HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (PEWTER) (КРАСКАED) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES SEE 88983942) |
D (13I, 19I, 69I, 70I) (1ST DES) |
2003-2003 |
02 |
| 024 |
88983942 |
HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES SEE 88982081) |
D (13I, 19I, 69I, 70I) (2ND DES) |
2003-2003 |
02 |
| 024 |
89041932 |
HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (PEWTER) (W/FAUX HYBRID WOOD INSERTS) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (2ND DES 89041933) |
D (13I, 19I, 70I) (1ST DES) |
2003-2003 |
02 |
| 024 |
89041933 |
HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (EBONY) (W/FAUX HYBRID WOOD INSERTS) (USE IF ЧАСТЬ IS EBONY) (1ST DES 89041932) |
D (13I, 19I, 70I) (2ND DES) |
2003-2003 |
02 |
| 025 |
88981442 |
POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (GRAY) (W/O TRUNK SWITCH HOLE) |
DR, DU (13I) (EXPORT) |
2003-2003 |
01 |
| 025 |
88981443 |
POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (PEWTER) (W/O TRUNK SWITCH HOLE) |
DR, DU (D26, 69I) (EXPORT) |
2003-2003 |
01 |
| 025 |
88981444 |
POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (NEUTRAL) (W/O TRUNK SWITCH HOLE) |
DR, DU (70I) (EXPORT) |
2003-2003 |
01 |
| 025 |
88983944 |
POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (EBONY) (W/O TRUNK SW HOLE) |
DR, DU69 (19I) (EXPORT) |
2003-2003 |
01 |
| 026 |
88981649 |
TRIM, FRT S/D (INCLS 7, 8, 10-18, 21-25, 27-32) (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DK PEWTER TRIM) (FOR 2ND DES SEE 88983981) |
D (13I) (1ST DES) |
2003-2003 |
01 |
| 026 |
88981650 |
TRIM, FRT S/D (INCLS 7, 8, 10-18, 21-25, 27-32) (PEWTER) |
DR, DU (69I) (EXPORT) |
2003-2003 |
01 |
| 026 |
88981651 |
TRIM, FRT S/D (INCLS 7, 8, 10-18, 21-25, 27-32) (NEUTRAL) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DK PEWTER TRIM) (FOR 2ND DES SEE 88983982) |
D (70I) (1ST DES) |
2003-2003 |
01 |
| 026 |
88983934 |
TRIM, FRT S/D (INCLS 7, 8, 10-18, 21-25, 27-32) (EBONY) |
D (19I) |
2003-2004 |
01 |
| 026 |
88983981 |
TRIM, FRT S/D (INCLS 7, 8, 10-18, 21-25, 27-32) (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981649) |
D (13I) (2ND DES) |
2003-2003 |
01 |
| 026 |
88983982 |
TRIM, FRT S/D (INCLS 7, 8, 10-18, 21-25, 27-32) (NEUTRAL) (USED ON VEHICLES BUILT W/DDOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981651) |
D (70I) (2ND DES) |
2003-2003 |
01 |
| 027 |
12482519 |
ЛАМПА, CTSY (ЧАСТЬ OF 26) (IN DOOR) |
D69 |
2003-2006 |
02 |
| 029 |
25702495 |
HARNESS, S/D WRG (ЧАСТЬ OF 26) |
D69 |
2003-2007 |
01 |
| 030 |
88952741 |
BRACKET, FRT S/D PULL HDL (ЧАСТЬ OF 26) |
D |
2003-2007 |
01 |
| 031 |
11503749 |
ГАЙКА, M6X1 (ЧАСТЬ OF 26) (ACDelco #11503749) |
|
2003-2007 |
02 |
