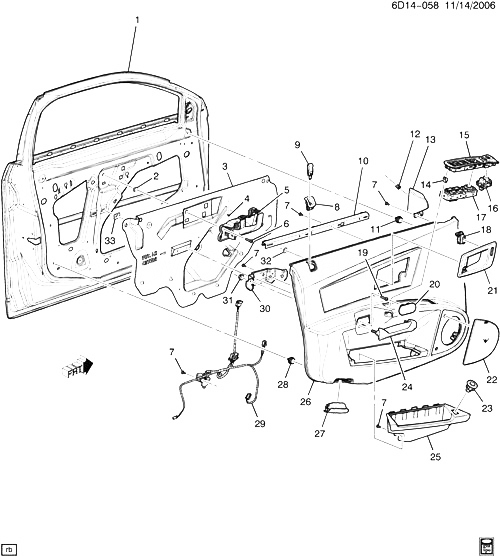

(6D14-058) - 2003 DG,DM69 ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 DOOR, FRT SI (СМ. ГРУППУ 10.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (GRAY) (14.685) 2003-2007
002 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2003-2007 01
003 25758248 DEFLECTOR, FRT S/D WAT D69 2003-2007 01
004 CLIP, FRT S/D I/S HDL ROD (ЧАСТЬ OF 5) 2003-2003
005 25759729 HANDLE, FRT S/D I/S (INCLS 4) (HIGH LUSTER) D 2003-2003 01
006 22527475 SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (FRT S/D I/S HDL) 2003-2007 01
007 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (ЧАСТЬ OF 26) 2003-2007 12
008 88952714 BEZEL, FRT S/D LKG ROD P/BUT (GRAY) D (13I) 2003-2007 02
008 88952715 BEZEL, FRT S/D LKG ROD P/BUT (PEWTER) D (69I) 2003-2003 02
008 88952716 BEZEL, FRT S/D LKG ROD P/BUT (NEUTRAL) D (70I) 2003-2003 02
008 88983938 BEZEL, FRT S/D LKG ROD P/BUT (EBONY) (SATIN CHROME PULL CAP) D69 (19I) 2003-2004 02
009 25731971 KNOB, FRT S/D LKG ROD (PEWTER) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25743848) D (69I) (1ST DES) 2003-2003 02
009 25731972 KNOB, FRT S/D LKG ROD (NEUTRAL) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25751122) D (70I) (1ST DES) 2003-2003 02
009 25731973 KNOB, FRT S/D LKG ROD (GRAY) (**VPI 1-877-846-8243) (CARS W/RED SNAP ON LOCK KNOB) (FOR 2ND DES SEE 25751121) D (13I) (1ST DES) 2003-2003 02
009 25751121 KNOB, FRT S/D LKG ROD (GRAY) (CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (FOR 1ST DES SEE 25731973) D (13I) (2ND DES) 2003-2003 02
009 25751122 KNOB, FRT S/D LKG ROD (NEUTRAL) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731972) D (70I) (2ND DES) 2003-2003 02
009 25751206 KNOB, FRT S/D LKG ROD (PEWTER) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731971) D (69I) (2ND DES) 2003-2003 02
009 25751335 KNOB, FRT S/D LKG ROD (EBONY) D69 (19I) 2003-2005 02
010 CHANNEL, FRT S/D WDO (ЧАСТЬ OF 26) 2003-2003
012 RETAINER, FRT S/D UPR TR (PUSH ON) (ЧАСТЬ OF 26) 2003-2003
013 88952726 PANEL, FRT S/D UPR FRT TR (PEWTER) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES 88983971) D (1ST DES) 2003-2003 01
013 88983971 PANEL, FRT S/D UPR FRT TR (EBONY) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES 88952726) D (2ND DES) 2003-2003 01
014 RETAINER, FRT S/D ACSRY SW MT PLT (ЧАСТЬ OF 26) 2003-2003
015 88952728 BEZEL, SI WDO SW (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DESIGN SEE 88983972) DG, DM (DR5) (1ST DES) 2003-2003 01
015 88952729 BEZEL, SI WDO SW (**VPI 1-877-846-8243) (USE WITH VERY DARK PEWTER) (FOR 2ND DES SEE 88983973) DG, DM (DL7) (EXC A45, B19) (1ST DES) 2003-2003 01
015 88952730 BEZEL, SI WDO SW (USE FOR VERY DARK PEWTER) (FOR 2ND DES SEE 88983974) DG, DM69 (A45, DL7) (1ST DES) 2003-2003 01
015 88952731 BEZEL, SI WDO SW (FRT S/D) (USE WITH VERY DARK PEWTER) (FOR 2ND DES SEE 88983975) DG, DM (A45, D26, 70I) (EXC B19) (1ST DES) 2003-2003 01
015 88983972 BEZEL, SI WDO SW (EBONY) (USE FOR EBONY) (FOR 1ST DESIGN 88952728) DG, DM (DR5, 13I, 19I, 70I) (2ND DES) 2003-2003 01
015 88983973 BEZEL, SI WDO SW DG, DM (DL7, 13I, 70I) (EXC A45) 2003-2003 01
015 88983973 BEZEL, SI WDO SW (USE FOR EBONY) (FOR 1ST DES SEE 88952729) DG, DM (DL7) (EXC A45, B19) (2ND DES) 2003-2003 01
015 88983974 BEZEL, SI WDO SW (EBONY) (USE WITH EBONY) (FOR 1ST DESIGN SEE 88952730) DG, DM69 (A45, DL7, 13I, 70I) (EXC B19) (2ND DES) 2003-2003 01
015 88983975 BEZEL, SI WDO SW (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) (USE WITH EBONY) (FOR 1ST DESIGN SEE 88952731) DG, DM69 (A45, B19, 13I, 70I) (2ND DES) 2003-2003 01
015 88983975 BEZEL, SI WDO SW (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) (USE WITH EBONY) (FOR 1ST DESIGN SEE 88952731) DG, DM69 (A45, B19, DL7, 13I, 70I) (2ND DES) 2003-2003 01
015 89038790 BEZEL, SI WDO SW (NEUTRAL) (USED W/PLASTIC HANDLE) DM69 (DL7, 70I) (EXC A45, B19) 2003-2003 01
015 89038887 BEZEL, SI WDO SW (NEUTRAL) DG, DM (DR5, 70I) (EXC A45, B19) 2003-2003 01
016 25749090 SWITCH, D/SEAT ADJR MEMORY (EBONY) DG, DM 2003-2003 01
017 10363778 SWITCH, SI WDO (MAS) (EBONY) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) (VEHICLES W/EBONY MASTER SWITCH) (1ST DES 25748574) DG, DM (DL7) (EXC A45) (2ND DES) 2003-2003 01
017 10363778 SWITCH, SI WDO (MAS) (EBONY) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) (VEHICLES W/EBONY MASTER SWITCH) (1ST DES 25748574) DG, DM (DR5) (2ND DES) 2003-2003 01
017 10363780 SWITCH, SI WDO (MAS) (EBONY) (VEHICLES W/EBONY MASTER SWITCH) (1ST DES 25739748)) DG, DM (A45, DL7) (2ND DES) 2003-2003 01
017 25739748 SWITCH, SI WDO (MAS) (PEWTER) (VEHICLES W/PEWTER MASTER SWITCH) (2ND DES 10363780) DG, DM (A45, DL7) (1ST DES) 2003-2003 01
017 25748574 SWITCH, SI WDO (MAS) (PEWTER) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) (VEHICLES W/PEWTER MASTER SWITCH) (2ND DES 10363778) DG, DM (DL7) (EXC A45) (1ST DES) 2003-2003 01
017 25748574 SWITCH, SI WDO (MAS) (PEWTER) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) (VEHICLES W/PEWTER MASTER SWITCH) (2ND DES 10363778) DG, DM (DR5) (1ST DES) 2003-2003 01
018 25721241 SWITCH, DR LK (PEWTER) D (69I) 2003-2003 02
018 25752613 SWITCH, DR LK (EBONY) D69 2003-2007 02
019 03539184 БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) D69 2003-2007 04
020 25727743 COVER, FRT S/D T/PNL (GRAY) D (13I) 2003-2004 02
020 25727744 COVER, FRT S/D T/PNL (PEWTER) (**VPI 1-877-846-8243) D (69I) 2003-2003 02
020 25727745 COVER, FRT S/D T/PNL (NEUTRAL) D (70I) 2003-2004 02
020 25748814 COVER, FRT S/D T/PNL (EBONY) D (19I) 2003-2004 02
021 25752963 BEZEL, FRT S/D I/S HDL (EBONY) (WHEN REPLACING 2003, PEWTER MUST REPLACE ALL 4 BEZELS FRT/RR RH/LH) D 2003-2003 01
022 88952717 GRILLE, RDO FRT SPKR (LH RH) (GRAY) DG, DM (13I) 2003-2003 02
022 88952718 GRILLE, RDO FRT SPKR (LH RH) (PEWTER) DG, DM (69I) 2003-2003 02
022 88952719 GRILLE, RDO FRT SPKR (LH RH) (NEUTRAL) DG, DM (70I) 2003-2003 02
022 88983939 GRILLE, RDO FRT SPKR (LH RH) (EBONY) DG, DM (19I) 2003-2003 02
023 25721203 SWITCH, R/CMPT LID REL (NEUTRAL) (ACDelco #D1422E) DG, DM69 (70I) 2003-2003 01
023 25721204 SWITCH, R/CMPT LID REL (USED ON RH AND LH FRT DRS) (PEWTER) (ACDelco #D1423E) D (DL7, 69I) 2003-2003 01
023 25750522 SWITCH, R/CMPT LID REL (EBONY) (ACDelco #D1481E) D (DL7, DR5, 19I) 2003-2003 01
024 88982081 HANDLE, FRT S/D PULL (PEWTER) (КРАСКАED) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES SEE 88983942) D (13I, 19I, 69I, 70I) (1ST DES) 2003-2003 02
024 88983942 HANDLE, FRT S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES SEE 88982081) D (13I, 19I, 69I, 70I) (2ND DES) 2003-2003 02
024 89041932 HANDLE, FRT S/D PULL (PEWTER) (W/FAUX HYBRID WOOD INSERTS) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (2ND DES 89041933) D (13I, 19I, 70I) (1ST DES) 2003-2003 02
024 89041933 HANDLE, FRT S/D PULL (EBONY) (W/FAUX HYBRID WOOD INSERTS) (USE IF ЧАСТЬ IS EBONY) (1ST DES 89041932) D (13I, 19I, 70I) (2ND DES) 2003-2003 02
025 88981445 POCKET, FRT S/D MAP (GRAY) (W/TRUNK SWITCH HOLE) DG, DM (DL7, DR5, 13I) 2003-2003 01
025 88981446 POCKET, FRT S/D MAP (PEWTER) (W/TRUNK SWITCH HOLE) DG, DM (69I) 2003-2003 01
025 88981447 POCKET, FRT S/D MAP (NEUTRAL) (W/TRUNK SWITCH HOLE) DG, DM (DL7, DR5, 70I) 2003-2003 01
025 88983946 POCKET, FRT S/D MAP (EBONY) (W/TRUNK SWITCH HOLE) DG, DM (DL7, DR5, 19I) 2003-2003 01
026 88981649 TRIM, FRT S/D (INCLS 10-12, 14) (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DK PEWTER TRIM) (FOR 2ND DES SEE 88983981) D (13I) (1ST DES) 2003-2003 01
026 88981650 TRIM, FRT S/D (INCLS 10-12, 14) (PEWTER) DG, DM (69I) 2003-2003 01
026 88981651 TRIM, FRT S/D (INCLS 10-12, 14) (NEUTRAL) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DK PEWTER TRIM) (FOR 2ND DES SEE 88983982) D (70I) (1ST DES) 2003-2003 01
026 88983934 TRIM, FRT S/D (INCLS 10-12, 14) (EBONY) D (19I) 2003-2004 01
026 88983981 TRIM, FRT S/D (INCLS 10-12, 14) (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981649) D (13I) (2ND DES) 2003-2003 01
026 88983982 TRIM, FRT S/D (INCLS 10-12, 14) (NEUTRAL) (USED ON VEHICLES BUILT W/DDOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981651) D (70I) (2ND DES) 2003-2003 01
027 12482519 ЛАМПА, CTSY (IN DOOR) D69 2003-2006 02
029 25702495 HARNESS, S/D WRG D69 2003-2007 01
030 88952741 BRACKET, FRT S/D PULL HDL D 2003-2007 01
031 11503749 ГАЙКА, M6X1 (FRT S/D PULL HDL) (ACDelco #11503749) 2003-2007 02
032 20049623 ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (FRT S/D TR FIN PNL) 2003-2007 02
033 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D69 2003-2007 04
