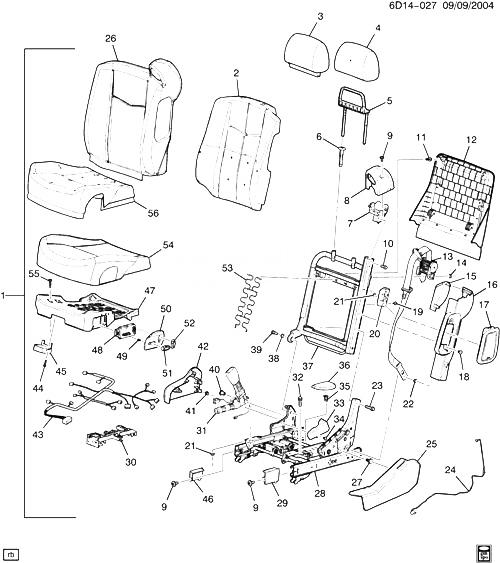

(6D14-027) - 2003 DR,DU69 СИДЕНЬЕ ПАССАЖИРА (POWER ADJUSTER AH8) CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, PASS (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-56) 2003-2003
002 88993031 PAD, P/SEAT BK CUSH (14.896) DR, DU (EXPORT) 2003-2003 01
003 88896165 COVER, P/SEAT H/RST FIN (EBONY) D (19C) 2003-2003 01
003 88992425 COVER, P/SEAT H/RST FIN (PEWTER) D (692) 2003-2003 01
003 88992480 COVER, P/SEAT H/RST FIN (NEUTRAL) D (702) 2003-2003 01
003 88992481 COVER, P/SEAT H/RST FIN (GRAY) D (132) 2003-2003 01
003 88992652 COVER, P/SEAT H/RST FIN (EBONY) D (192) 2003-2003 01
004 88897669 FILLER, P/SEAT H/RST D69 2003-2003 01
005 88897670 SUPPORT, P/SEAT H/RST D 2003-2003 01
006 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) D69 (19I) 2003-2003 01
006 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) D69 (19I) 2003-2003 01
006 88941190 GUIDE, P/SEAT H/RST (PEWTER) (W/O BUTTON) (16.718) D (69I) 2003-2003 01
006 88994275 GUIDE, P/SEAT H/RST (PEWTER) (W/BUTTON) D (69I) 2003-2003 01
006 88994276 GUIDE, P/SEAT H/RST (NEUTRAL) (W/BUTTON) D69 (70I) 2003-2003 01
006 88994279 GUIDE, P/SEAT H/RST (NEUTRAL) (W/O BUTTON) D69 (70I) 2003-2003 01
006 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) D (13I) 2003-2003 01
006 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) D69 (13I) 2003-2003 01
007 88897640 ROLLER, P/SEAT SHLDR BELT DR (EXPORT) 2003-2003 01
007 88897640 ROLLER, P/SEAT SHLDR BELT DU (EXPORT) 2003-2003 01
007 88897641 ROLLER, P/SEAT SHLDR BELT D 2003-2003 01
008 88897614 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) DR (EXPORT) 2003-2003 01
008 88897614 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) DU (EXPORT) 2003-2003 01
009 88897272 БОЛТ, P/SEAT (TOWER COVER) D69 2003-2003 03
010 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) D69 2003-2003 01
011 10421018 RETAINER, P/SEAT BK CUSH FIN PNL (ЧАСТЬ OF 12) (NATURAL) (4MM HOLE, 33MM) (15.100) DR, DU (EXPORT) 2003-2003 03
012 88895401 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (NEUTRAL) (W/MESH MAP PKT) DR, DU (70I) (EXPORT) 2003-2003 01
012 88895402 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (PEWTER) (W/MESH MAP PKT) DR, DU (69I) (EXPORT) 2003-2003 01
012 88895403 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) DR, DU (13I) (EXPORT) 2003-2003 01
012 88895405 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (NEUTRAL) (W/MESH MAP PKT) D (70I) 2003-2003 01
012 88895407 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) D (13I) 2003-2003 01
012 88992613 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) DR, DU (19I) (EXPORT) 2003-2003 01
013 10369741 BELT, P/SEAT (RETR SI) (GRAY) DR (13I) (EXPORT) 2003-2003 01
013 10369741 BELT, P/SEAT (RETR SI) (GRAY) DU (13I) (EXPORT) 2003-2003 01
013 10369742 BELT, P/SEAT (RETR SI) (NEUTRAL) DR (70I) (EXPORT) 2003-2003 01
013 10369742 BELT, P/SEAT (RETR SI) (NEUTRAL) DU (70I) (EXPORT) 2003-2003 01
013 10369743 BELT, P/SEAT (RETR SI) (EBONY) DR (19I) (EXPORT) 2003-2003 01
013 10369743 BELT, P/SEAT (RETR SI) (EBONY) DU (19I) (EXPORT) 2003-2003 01
013 25725509 BELT, P/SEAT (RETR SI) (PEWTER) DR, DU (AQ9, 69I) (EXPORT) 2003-2003 01
014 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) DR (EXPORT) 2003-2003 01
014 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2003-2003 01
015 88895380 BEZEL, P/SEAT SHLDR BELT OPG (PEWTER) (**VPI 1-877-846-8243) DR, DU (69I) (EXPORT) 2003-2003 01
015 88897618 BEZEL, P/SEAT SHLDR BELT OPG DR (EXPORT) 2003-2003 01
015 88897618 BEZEL, P/SEAT SHLDR BELT OPG DU (EXPORT) 2003-2003 01
016 88897616 PANEL, P/SEAT BK CUSH SI BOLS DR, DU (EXPORT) 2003-2003 01
017 25760565 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) DR (13I) (EXPORT) 2003-2003 01
017 25760565 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) DU (13I) (EXPORT) 2003-2003 01
017 25760566 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) DR, DU (19I) (EXPORT) 2003-2003 01
017 25760567 МОДУЛЬ, P/SEAT SI INFL RST (NEUTRAL) DR (70I) (EXPORT) 2003-2003 01
017 25760567 МОДУЛЬ, P/SEAT SI INFL RST (NEUTRAL) DU (70I) (EXPORT) 2003-2003 01
018 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT CUSH FRM SUPT) 2003-2003 02
019 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (P/SEAT SI INFL RST MDL) 2003-2003 02
020 BRACKET, P/SEAT 2003-2003
021 11517068 ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) D 2003-2003 04
022 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) DR (EXPORT) 2003-2003 01
022 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2003-2003 01
023 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) D69 2003-2003 02
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) D (AQ9) 2003-2003 01
025 88897677 COVER, P/SEAT RECL LWR FIN (INCLS 27) (NEUTRAL) (OTR) (W/O SWITCH OPENING) DR, DU (70I) 2003-2003 01
025 88949021 COVER, P/SEAT RECL LWR FIN (INCLS 27) (GRAY) (OTR) (W/O SWITCH OPENING) DR, DU (13I) 2003-2003 01
025 88949023 COVER, P/SEAT RECL LWR FIN (OUTER) (INCLS 27) (PEWTER) (OTR) (W/O SWITCH OPENING) DR (69I) 2003-2003 01
025 88992619 COVER, P/SEAT RECL LWR FIN (INCLS 27) (EBONY) (OTR) (W/O SWITCH OPENING) DR, DU (AH8, AQ9, 19I) 2003-2003 01
026 88895426 COVER, P/SEAT BK CUSH (PEWTER) DR (692) (EXC KA1) (EXPORT) 2003-2003 01
026 88895427 COVER, P/SEAT BK CUSH (NEUTRAL) DR (702) (EXC KA1) (EXPORT) 2003-2003 01
026 88895428 COVER, P/SEAT BK CUSH (GRAY W/PEWTER) (FOR 2ND DES SEE 88992630) DR (132) (EXC KA1) (1ST DES) (EXPORT) 2003-2003 01
026 88895430 COVER, P/SEAT BK CUSH (PEWTER) DR, DU (KA1, 692) (EXPORT) 2003-2003 01
026 88895431 COVER, P/SEAT BK CUSH (NEUTRAL) DR, DU (KA1, 702) (EXPORT) 2003-2003 01
026 88895432 COVER, P/SEAT BK CUSH (GRAY) (GRAY W/PEWTER) (FOR 2ND DES SEE 88992631) DR, DU (KA1, 132) (1ST DES) (EXPORT) 2003-2003 01
026 88895434 COVER, P/SEAT BK CUSH (EBONY) DR (AH8, 19C) (EXC KA1) (EXPORT) 2003-2003 01
026 88895474 COVER, P/SEAT BK CUSH (EBONY) DR, DU (19C) (EXPORT) 2003-2003 01
026 88992630 COVER, P/SEAT BK CUSH (GRAY W/EBONY) (FOR 1ST DES SEE 88895428) DR (132) (EXC KA1) (2ND DES) (EXPORT) 2003-2003 01
026 88992631 COVER, P/SEAT BK CUSH (GRAY W/EBONY) (FOR 1ST DES SEE 88895432) DR, DU (KA1, 132) (2ND DES) (EXPORT) 2003-2003 01
026 88992641 COVER, P/SEAT BK CUSH (EBONY) DR (AH8, AQ9, 192) (EXC KA1) (EXPORT) 2003-2003 01
026 88992642 COVER, P/SEAT BK CUSH (EBONY) DR, DU (AH8, AQ9, KA1, 192) (EXPORT) 2003-2003 01
027 RETAINER, P/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 25) 2003-2003
028 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2003
029 88895386 COVER, P/SEAT ADJR FIN (GRAY) (FRT) DR, DU (13I) (EXPORT) 2003-2003 01
029 88895387 COVER, P/SEAT ADJR FIN (PEWTER) (FRT) DR, DU (69I) (EXPORT) 2003-2003 01
029 88895388 COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) DR, DU (70I) (EXPORT) 2003-2003 01
029 88992625 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D (19I) 2003-2003 01
029 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2003-2003 01
030 SHIELD, WRG HARNESS (ЧАСТЬ OF 43) 2003-2003
031 25757212 BELT, P/SEAT (BKL SI) (GRAY) DR (13I) (EXPORT) 2003-2003 01
031 25757212 BELT, P/SEAT (BKL SI) (GRAY) DU (13I) (EXPORT) 2003-2003 01
031 25757213 BELT, P/SEAT (BKL SI) (EBONY) DR (19I) (EXPORT) 2003-2003 01
031 25757213 BELT, P/SEAT (BKL SI) (EBONY) DU (19I) (EXPORT) 2003-2003 01
031 25757214 BELT, P/SEAT (BKL SI) (NEUTRAL) DR (70I) (EXPORT) 2003-2003 01
031 25757214 BELT, P/SEAT (BKL SI) (NEUTRAL) DU (70I) (EXPORT) 2003-2003 01
032 11609257 БОЛТ, P/SEAT ADJR (W/BELT) (M12X1.75X34) (8.907) D 2003-2003 AR
033 88895380 BEZEL, P/SEAT SHLDR BELT OPG (PEWTER) (**VPI 1-877-846-8243) DR, DU (69I) (EXPORT) 2003-2003 01
033 88897618 BEZEL, P/SEAT SHLDR BELT OPG DR (EXPORT) 2003-2003 01
033 88897618 BEZEL, P/SEAT SHLDR BELT OPG DU (EXPORT) 2003-2003 01
034 00332364 RETAINER, P/SEAT SHLDR BELT (8.950) D 2003-2003 04
035 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 36) 2003-2003
036 88895408 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (NEUTRAL) D69 (70I) 2003-2003 01
036 88895409 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (PEWTER) D (69I) 2003-2003 01
036 88895410 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (GRAY) D69 (13I) 2003-2003 01
036 88992629 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (EBONY) D69 (19I) 2003-2003 01
037 88849036 РАМА, P/SEAT BK CUSH (INCLS 53) (W/SUSPENSION) DR, DU (EXPORT) 2003-2003 01
038 BUSHING, P/SEAT BK CUSH PIV (ЧАСТЬ OF 39) 2003-2003
039 88952646 БОЛТ, P/SEAT BK CUSH PIV (INCLS 38) (11.628) D 2003-2003 01
040 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) D 2003-2003 01
041 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 42) 2003-2003
042 88895365 COVER, P/SEAT RECL LWR FIN (INCLS 41) (NEUTRAL) (INR) DR, DU (70I) 2003-2003 01
042 88895367 COVER, P/SEAT RECL LWR FIN (INCLS 41) (GRAY) (INR) DR, DU (13I) 2003-2003 01
042 88992615 COVER, P/SEAT RECL LWR FIN (INCLS 41) (EBONY) (INR) DR, DU (19I) 2003-2003 01
043 88897628 HARNESS, P/SEAT CONT MDL WRG (INCLS 30) DR (AH8, AQ9, IL2, ILC) (EXC KA1) (EXPORT) 2003-2003 01
044 88897272 БОЛТ, P/SEAT (TOWER COVER) D69 2003-2003 03
045 10399538 МОДУЛЬ, P/SEAT HTR CONT D69 (KA1) 2003-2003 01
046 88895386 COVER, P/SEAT ADJR FIN (GRAY) (FRT) DR, DU (13I) (EXPORT) 2003-2003 01
046 88895387 COVER, P/SEAT ADJR FIN (PEWTER) (FRT) DR, DU (69I) (EXPORT) 2003-2003 01
046 88895388 COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) DR, DU (70I) (EXPORT) 2003-2003 01
046 88992625 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D (19I) 2003-2003 01
046 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2003-2003 01
047 88895457 РАМА, P/SEAT CUSH (INCLS 55) (PWR) DR, DU (EXPORT) 2003-2003 01
048 12450263 SWITCH, P/SEAT ADJR (8-WAY) DR, DU (EXPORT) 2003-2003 01
049 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 50) 2003-2003
050 88895393 BEZEL, P/SEAT ADJR SW (INCLS 49) (NEUTRAL) DR, DU (70I) (EXPORT) 2003-2003 01
050 88895394 BEZEL, P/SEAT ADJR SW (INCLS 49) (PEWTER) (**VPI 1-877-846-8243) DR, DU (69I) (EXPORT) 2003-2003 01
050 88895395 BEZEL, P/SEAT ADJR SW (INCLS 49) (GRAY) DR, DU (13I) (EXPORT) 2003-2003 01
050 88992623 BEZEL, P/SEAT ADJR SW (INCLS 49) (EBONY) DR, DU (19I) (EXPORT) 2003-2003 01
051 25671087 KNOB, P/SEAT ADJR SW (NEUTRAL) D69 (70I) 2003-2003 01
051 25721216 KNOB, P/SEAT ADJR SW (PEWTER) D (69I) 2003-2003 01
051 25721217 KNOB, P/SEAT ADJR SW (GRAY) D69 (13I) 2003-2003 01
051 25749092 KNOB, P/SEAT ADJR SW (EBONY) D69 (19I) 2003-2003 01
052 25671092 KNOB, P/SEAT RECL (NEUTRAL) DR, DU (70I) (EXPORT) 2003-2003 01
052 25721206 KNOB, P/SEAT RECL (PEWTER) (**VPI 1-877-846-8243) DR, DU (69I) (EXPORT) 2003-2003 01
052 25721207 KNOB, P/SEAT RECL (GRAY) DR, DU (13I) (EXPORT) 2003-2003 01
052 25749093 KNOB, P/SEAT RECL (EBONY) DR, DU (19I) (EXPORT) 2003-2003 01
053 88849036 РАМА, P/SEAT BK CUSH (ЧАСТЬ OF 37) (W/SUSPENSION) DR, DU (EXPORT) 2003-2003 01
054 88995421 PAD, P/SEAT CUSH DR (EXPORT) 2003-2003 01
054 88995421 PAD, P/SEAT CUSH DU (EXPORT) 2003-2003 01
055 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 47) 2003-2003
056 88895444 COVER, P/SEAT CUSH (PEWTER) DR (AH8, 692) (EXC KA1) (EXPORT) 2003-2003 01
056 88895445 COVER, P/SEAT CUSH (NEUTRAL) DR (AH8, 702) (EXC KA1) (EXPORT) 2003-2003 01
056 88895446 COVER, P/SEAT CUSH (GRAY) (W/PEWTER INSERTS) DR (AH8, 132) (EXC KA1) (EXPORT) 2003-2003 01
056 88895448 COVER, P/SEAT CUSH (PEWTER) DR, DU (AH8, KA1, 692) (EXPORT) 2003-2003 01
056 88895449 COVER, P/SEAT CUSH (NEUTRAL) DR, DU (AH8, KA1, 702) (EXPORT) 2003-2003 01
056 88895450 COVER, P/SEAT CUSH (GRAY) (W/PEWTER INSERTS) DR, DU (AH8, KA1, 132) (EXPORT) 2003-2003 01
056 88992634 COVER, P/SEAT CUSH (GRAY) (W/EBONY INSERTS) DR (AH8, AQ9, 132) (EXC KA1) (EXPORT) 2003-2003 01
056 88992636 COVER, P/SEAT CUSH (GRAY W/EBONY) DR, DU (AH8, AQ9, KA1, 132) (EXPORT) 2003-2003 01
056 88992645 COVER, P/SEAT CUSH (EBONY) DR (AH8, AQ9, 192) (EXC KA1) (EXPORT) 2003-2003 01
056 88992647 COVER, P/SEAT CUSH (EBONY) DR, DU (AH8, AQ9, KA1, 192) (EXPORT) 2003-2003 01
056 88994778 COVER, P/SEAT CUSH (EBONY) DR (AL2, AQ9, 19C) (EXC KA1) (EXPORT) 2003-2003 01
056 88994779 COVER, P/SEAT CUSH (EBONY) DR, DU (AH8, KA1, 19C) (EXPORT) 2003-2003 01
056 88994797 COVER, P/SEAT CUSH (EBONY) DR (AQ9, 192) (EXC KA1) (EXPORT) 2003-2003 01
