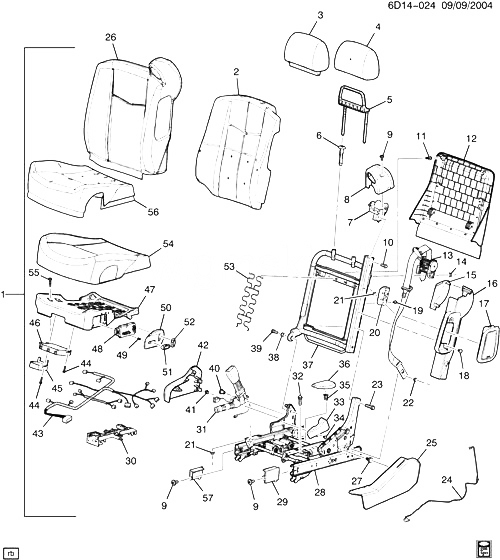

(6D14-024) - 2003 DG,DM69 СИДЕНЬЕ В СБОРЕ/DRIVER CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, DRVR (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-57) 2003-2003
002 88993031 PAD, D/SEAT BK CUSH (14.896) DG, DM 2003-2003 01
003 88896165 COVER, D/SEAT H/RST FIN (EBONY) D (19C) 2003-2003 01
003 88992425 COVER, D/SEAT H/RST FIN (PEWTER) D (692) 2003-2003 01
003 88992480 COVER, D/SEAT H/RST FIN (NEUTRAL) D (702) 2003-2003 01
003 88992481 COVER, D/SEAT H/RST FIN (GRAY) D (132) 2003-2003 01
003 88992652 COVER, D/SEAT H/RST FIN (EBONY) D (192) 2003-2003 01
004 88897669 FILLER, D/SEAT H/RST D69 2003-2003 01
005 88897670 SUPPORT, D/SEAT H/RST D 2003-2003 01
006 19122625 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) D69 (19I) 2003-2003 01
006 19122627 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) D69 (19I) 2003-2003 01
006 88941190 GUIDE, D/SEAT H/RST (PEWTER) (W/O BUTTON) (16.718) D (69I) 2003-2003 01
006 88994275 GUIDE, D/SEAT H/RST (PEWTER) (W/BUTTON) D (69I) 2003-2003 01
006 88994276 GUIDE, D/SEAT H/RST (NEUTRAL) (W/BUTTON) D69 (70I) 2003-2003 01
006 88994279 GUIDE, D/SEAT H/RST (NEUTRAL) (W/O BUTTON) D69 (70I) 2003-2003 01
006 88994730 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) D (13I) 2003-2003 01
006 88994731 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) D69 (13I) 2003-2003 01
007 88897640 ROLLER, D/SEAT SHLDR BELT DG 2003-2003 01
007 88897640 ROLLER, D/SEAT SHLDR BELT DM 2003-2003 01
008 88897614 COVER, D/SEAT SHLDR BELT OPG BZL (11.573) DG 2003-2003 01
008 88897614 COVER, D/SEAT SHLDR BELT OPG BZL (11.573) DM 2003-2003 01
009 88897272 БОЛТ, D/SEAT (TOWER COVER) D69 2003-2003 03
010 88897644 БОЛТ, D/SEAT ADJR (ADJR TO FRM) D69 2003-2003 01
011 10421018 RETAINER, D/SEAT BK CUSH CVR (ЧАСТЬ OF 12) (NATURAL) (4MM HOLE, 33MM) (15.100) D69 2003-2003 03
012 88895401 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (NEUTRAL) (W/MESH MAP PKT) DG, DM (70I) 2003-2003 01
012 88895402 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (PEWTER) (W/MESH MAP PKT) DG, DM (69I) 2003-2003 01
012 88895403 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) D (13I) 2003-2003 01
012 88992613 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) DG, DM (19I) 2003-2003 01
013 10369728 BELT, D/SEAT (RETR SI) (GRAY) DG (AX4, A45, 132) (EXPORT) 2003-2003 01
013 10369728 BELT, D/SEAT (RETR SI) (GRAY) DM (AX4, 132) (EXPORT) 2003-2003 01
013 10369729 BELT, D/SEAT (RETR SI) (NEUTRAL) DG (AX4, 70I) (EXPORT) 2003-2003 01
013 10369729 BELT, D/SEAT (RETR SI) (NEUTRAL) DM (AX4, 70I) (EXPORT) 2003-2003 01
013 10369730 BELT, D/SEAT (RETR SI) (EBONY) DG (AX4, 19I) (EXPORT) 2003-2003 01
013 10369730 BELT, D/SEAT (RETR SI) (EBONY) DM (AX4, 19I) (EXPORT) 2003-2003 01
013 25725488 BELT, D/SEAT (RETR SI) (PEWTER) DG, DM (AX4, 69I) (EXPORT) 2003-2003 01
013 88952474 BELT KIT, D/SEAT (RETR SI) (GRAY) DM (13I) 2003-2003 01
013 88952475 BELT KIT, D/SEAT (RETR SI) (PEWTER) DM (69I) 2003-2003 01
013 88952476 BELT KIT, D/SEAT (RETR SI) (NEUTRAL) DM (70I) 2003-2003 01
013 88957483 BELT KIT, D/SEAT (RETR SI) (EBONY) DM (19I) 2003-2003 01
014 25604879 ГАЙКА, D/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) DM 2003-2003 01
015 88897618 BEZEL, D/SEAT SHLDR BELT OPG DG 2003-2003 01
015 88897618 BEZEL, D/SEAT SHLDR BELT OPG DM 2003-2003 01
016 88897616 PANEL, D/SEAT BK CUSH SI BOLS DG, DM 2003-2003 01
017 25721617 МОДУЛЬ, D/SEAT SI INFL RST (PEWTER) DG, DM (69I) 2003-2003 01
017 25760565 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) DG (13I) 2003-2003 01
017 25760565 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) DM (13I) 2003-2003 01
017 25760566 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DG (19I) 2003-2003 01
017 25760566 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DM (19I) 2003-2003 01
017 25760567 МОДУЛЬ, D/SEAT SI INFL RST (NEUTRAL) DG, DM (70I) 2003-2003 01
018 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK CUSH OTR SUPT) 2003-2003 02
019 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (D/SEAT SI INFL RST MDL) 2003-2003 02
020 BRACKET, D/SEAT 2003-2003
021 11517068 ГАЙКА, INFL RST D/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) D69 2003-2003 04
022 11517996 ГАЙКА, D/SEAT SHLDR BELT RETR (M10X1.5, 11.2 THK) (8.917) D 2003-2003 01
023 88897643 БОЛТ, D/SEAT RECL (RECL TO FRM) D69 2003-2003 02
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) D (AQ9) 2003-2003 01
025 88897677 COVER, D/SEAT RECL LWR FIN (INCLS 27) (NEUTRAL) (OTR) (W/O SWITCH OPENING) DG, DM (70I) 2003-2003 01
025 88949021 COVER, D/SEAT RECL LWR FIN (INCLS 27) (GRAY) (OTR) (W/O SWITCH OPENING) DG, DM (13I) 2003-2003 01
025 88992619 COVER, D/SEAT RECL LWR FIN (INCLS 27) (EBONY) (OTR) (W/O SWITCH OPENING) DG, DM (AQ9, 19I) 2003-2003 01
026 88895426 COVER, D/SEAT BK CUSH (PEWTER) DG, DM (692) (EXC KA1) 2003-2003 01
026 88895427 COVER, D/SEAT BK CUSH (NEUTRAL) DG, DM (702) (EXC KA1) 2003-2003 01
026 88895428 COVER, D/SEAT BK CUSH (GRAY W/PEWTER) (FOR 2ND DES SEE 88992630) DG, DM (132) (EXC KA1) (1ST DES) 2003-2003 01
026 88895430 COVER, D/SEAT BK CUSH (PEWTER) DG, DM (KA1, 692) 2003-2003 01
026 88895431 COVER, D/SEAT BK CUSH (NEUTRAL) DG, DM (KA1, 702) 2003-2003 01
026 88895432 COVER, D/SEAT BK CUSH (GRAY) (GRAY W/PEWTER) (FOR 2ND DES SEE 88992631) DG, DM (KA1, 132) (1ST DES) 2003-2003 01
026 88895434 COVER, D/SEAT BK CUSH (EBONY) DG (AX4, 19C) (EXC KA1) (EXPORT) 2003-2003 01
026 88895474 COVER, D/SEAT BK CUSH (EBONY) DG, DM (AX4, KA1, 19C) (EXPORT) 2003-2003 01
026 88992630 COVER, D/SEAT BK CUSH (GRAY W/EBONY) (FOR 1ST DES SEE 88895428) DG, DM (132) (EXC KA1) (2ND DES) 2003-2003 01
026 88992631 COVER, D/SEAT BK CUSH (GRAY W/EBONY) (FOR 1ST DES SEE 88895432) DG, DM (AQ9, KA1, 132) (2ND DES) 2003-2003 01
026 88992641 COVER, D/SEAT BK CUSH (EBONY) DG (AQ9, AX4, A45, 192) (EXC KA1) (EXPORT) 2003-2003 01
026 88992641 COVER, D/SEAT BK CUSH (EBONY) DM (AQ9, 192) (EXC KA1) 2003-2003 01
026 88992642 COVER, D/SEAT BK CUSH (EBONY) DG (AQ9, AX4, A45, KA1, 192) (EXPORT) 2003-2003 01
026 88992642 COVER, D/SEAT BK CUSH (EBONY) DM (AQ9, KA1, 192) 2003-2003 01
027 RETAINER, D/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 25) 2003-2003
028 88895460 ADJUSTER, D/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/DRIVER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) DG, DM (A45) 2003-2003 01
028 88995061 ADJUSTER, D/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/DRIVER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) DG, DM (EXC A45) 2003-2003 01
029 88895386 COVER, D/SEAT ADJR FIN (GRAY) (FRT) DG, DM (13I) 2003-2003 01
029 88895387 COVER, D/SEAT ADJR FIN (PEWTER) (FRT) DG, DM (69I) 2003-2003 01
029 88895388 COVER, D/SEAT ADJR FIN (NEUTRAL) (FRT) DG, DM (70I) 2003-2003 01
029 88992625 COVER, D/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2003-2003 01
029 88992626 COVER, D/SEAT ADJR FIN (EBONY) (FRT) DG, DM (19I) 2003-2003 01
030 SHIELD, WRG HARNESS (ЧАСТЬ OF 43) 2003-2003
031 15144611 BELT, D/SEAT (BKL SI) (GRAY) DG (AX4, 13I) (EXPORT) 2003-2003 01
031 15144611 BELT, D/SEAT (BKL SI) (GRAY) DM (AX4, 13I) (EXPORT) 2003-2003 01
031 25757201 BELT, D/SEAT (BKL SI) (EBONY) DG (AX4, 19I) (EXPORT) 2003-2003 01
031 25757201 BELT, D/SEAT (BKL SI) (EBONY) DM (AX4, 19I) (EXPORT) 2003-2003 01
031 25757202 BELT, D/SEAT (BKL SI) (NEUTRAL) DG (AX4, 70I) (EXPORT) 2003-2003 01
031 25757202 BELT, D/SEAT (BKL SI) (NEUTRAL) DM (AX4, 70I) (EXPORT) 2003-2003 01
031 88955028 BELT KIT, D/SEAT (BKL SI) (PEWTER) DM (69I) 2003-2003 01
031 89024400 BELT KIT, D/SEAT (BKL SI) (GRAY) DM (13I) 2003-2003 01
031 89024401 BELT KIT, D/SEAT (BKL SI) (EBONY) DM (19I) 2003-2003 01
031 89024402 BELT KIT, D/SEAT (BKL SI) (NEUTRAL) DM (70I) 2003-2003 01
032 88897644 БОЛТ, D/SEAT ADJR (ADJR TO FRM) D69 2003-2003 01
033 88897618 BEZEL, D/SEAT SHLDR BELT OPG DG 2003-2003 01
033 88897618 BEZEL, D/SEAT SHLDR BELT OPG DM 2003-2003 01
034 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT SPCR) 2003-2003 01
035 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 36) 2003-2003
036 88895408 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (NEUTRAL) D69 (70I) 2003-2003 01
036 88895409 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (PEWTER) D (69I) 2003-2003 01
036 88895410 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (GRAY) D69 (13I) 2003-2003 01
036 88992629 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (EBONY) D69 (19I) 2003-2003 01
037 88849036 РАМА, D/SEAT BK CUSH (INCLS 53) (W/SUSPENSION) DG, DM 2003-2003 01
038 BUSHING, D/SEAT BK CUSH PIV (ЧАСТЬ OF 39) 2003-2003
039 88952646 БОЛТ, D/SEAT BK CUSH FRM (INCLS 38) (11.628) D69 2003-2003 01
040 88952627 ГАЙКА, D/SEAT BELT (BKL SI) (TUBE NUT) (11.556) D69 2003-2003 01
041 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 42) 2003-2003
042 88895365 COVER, D/SEAT RECL LWR FIN (INCLS 41) (NEUTRAL) (INR) DG, DM (70I) 2003-2003 01
042 88895367 COVER, D/SEAT RECL LWR FIN (INCLS 41) (GRAY) (INR) DG, DM (13I) 2003-2003 01
042 88992615 COVER, D/SEAT RECL LWR FIN (INCLS 41) (EBONY) (INR) DG, DM (AQ9, AX4, 19I) 2003-2003 01
043 88897277 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) D (AQ9) (EXC A45, KA1) 2003-2003 01
043 88897278 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, KA1) (EXC AL2, A45) 2003-2003 01
043 88897279 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, A45) (EXC KA1) 2003-2003 01
043 88897280 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DG (AQ9, AX4, A45, IL2) (EXC KA1) 2003-2003 01
043 88897280 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, A45, KA1, IL2) (EXC AX4) 2003-2003 01
043 88897280 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, AX4, A45, IL2, KA1) 2003-2003 01
043 88897280 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, AX4, A45, ILC, KA1) 2003-2003 01
044 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (D/SEAT) (8.977) 2003-2003 02
045 10399538 МОДУЛЬ, D/SEAT HTR CONT D69 (KA1) 2003-2003 01
046 15783698 МОДУЛЬ, D/SEAT ADJR MEMORY (W/O LUMBAR) (11.558) D69 2003-2003 01
047 88895457 РАМА, D/SEAT CUSH (INCLS 55) (PWR) DG, DM 2003-2003 01
048 12450263 SWITCH, D/SEAT ADJR (8-WAY) DG, DM 2003-2003 01
049 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 50) 2003-2003
050 88895393 BEZEL, D/SEAT ADJR SW (INCLS 49) (NEUTRAL) DG, DM (70I) 2003-2003 01
050 88895394 BEZEL, D/SEAT ADJR SW (INCLS 49) (PEWTER) (**VPI 1-877-846-8243) DG, DM (69I) 2003-2003 01
050 88895395 BEZEL, D/SEAT ADJR SW (INCLS 49) (GRAY) DG, DM (13I) 2003-2003 01
050 88992623 BEZEL, D/SEAT ADJR SW (INCLS 49) (EBONY) DG, DM (19I) 2003-2003 01
051 25671087 KNOB, D/SEAT ADJR SW (NEUTRAL) D69 (70I) 2003-2003 01
051 25721216 KNOB, D/SEAT ADJR SW (PEWTER) D (69I) 2003-2003 01
051 25721217 KNOB, D/SEAT ADJR SW (GRAY) D69 (13I) 2003-2003 01
051 25749092 KNOB, D/SEAT ADJR SW (EBONY) D69 (19I) 2003-2003 01
052 25671092 KNOB, D/SEAT RECL LVR (NEUTRAL) DG, DM (70I) 2003-2003 01
052 25721206 KNOB, D/SEAT RECL LVR (PEWTER) (**VPI 1-877-846-8243) DG, DM (69I) 2003-2003 01
052 25721207 KNOB, D/SEAT RECL LVR (GRAY) DG, DM (13I) 2003-2003 01
052 25749093 KNOB, D/SEAT RECL LVR (EBONY) DG, DM (19I) 2003-2003 01
053 88849036 РАМА, D/SEAT BK CUSH (INCLS 37) (W/SUSPENSION) DG, DM 2003-2003 01
054 88995421 PAD, D/SEAT CUSH DG (AX4) (EXPORT) 2003-2003 01
054 88995421 PAD, D/SEAT CUSH DM 2003-2003 01
055 БОЛТ, D/SEAT CUSH FRM (ЧАСТЬ OF 47) 2003-2003
056 88895444 COVER, D/SEAT CUSH (PEWTER) DG, DM (692) (EXC KA1) 2003-2003 01
056 88895445 COVER, D/SEAT CUSH (NEUTRAL) DG, DM (702) (EXC KA1) 2003-2003 01
056 88895446 COVER, D/SEAT CUSH (GRAY) (W/PEWTER INSERTS) DG, DM (132) (EXC KA1) 2003-2003 01
056 88895448 COVER, D/SEAT CUSH (PEWTER) DG, DM (KA1, 692) 2003-2003 01
056 88895449 COVER, D/SEAT CUSH (NEUTRAL) DG, DM (KA1, 702) 2003-2003 01
056 88895450 COVER, D/SEAT CUSH (GRAY) (W/PEWTER INSERTS) DG, DM (AQ9, KA1, 132) 2003-2003 01
056 88992634 COVER, D/SEAT CUSH (GRAY) (W/EBONY INSERTS) DG (AQ9, 132) 2003-2003 01
056 88992634 COVER, D/SEAT CUSH (GRAY) (W/EBONY INSERTS) DM (AQ9, 132) (EXC KA1) 2003-2003 01
056 88992636 COVER, D/SEAT CUSH (GRAY W/EBONY) DG, DM (AQ9, KA1, 132) 2003-2003 01
056 88992645 COVER, D/SEAT CUSH (EBONY) DG (AQ9, AX4, A45, 192) (EXC KA1) (EXPORT) 2003-2003 01
056 88992645 COVER, D/SEAT CUSH (EBONY) DM (AQ9, 192) (EXC KA1) 2003-2003 01
056 88992647 COVER, D/SEAT CUSH (EBONY) DG (AQ9, AX4, A45, KA1, 192) (EXPORT) 2003-2003 01
056 88992647 COVER, D/SEAT CUSH (EBONY) DM (AQ9, KA1, 192) 2003-2003 01
056 88994778 COVER, D/SEAT CUSH (EBONY) DG (AQ9, AX4, 19C) (EXC KA1) (EXPORT) 2003-2003 01
056 88994778 COVER, D/SEAT CUSH (EBONY) DM (AL2, AX4, 19C) (EXC KA1) (EXPORT) 2003-2003 01
056 88994779 COVER, D/SEAT CUSH (EBONY) DG, DM (19C) 2003-2003 01
057 88895386 COVER, D/SEAT ADJR FIN (GRAY) (FRT) DG, DM (13I) 2003-2003 01
057 88895387 COVER, D/SEAT ADJR FIN (PEWTER) (FRT) DG, DM (69I) 2003-2003 01
057 88895388 COVER, D/SEAT ADJR FIN (NEUTRAL) (FRT) DG, DM (70I) 2003-2003 01
057 88992625 COVER, D/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2003-2003 01
057 88992626 COVER, D/SEAT ADJR FIN (EBONY) (FRT) DG, DM (19I) 2003-2003 01
