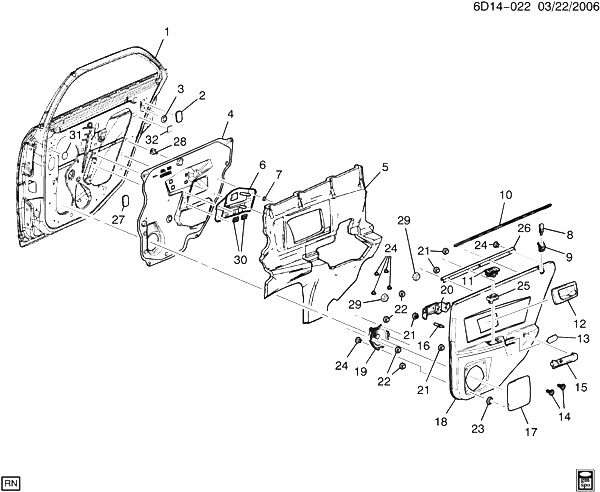

(6D14-022) - 2003-2007 D69 ОТДЕЛКА/ЗАДНЯЯ ДВЕРЬ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19120493 DOOR, RR SI D69 2003-2007 01
001 19120494 DOOR, RR SI D69 2003-2007 01
002 25740149 SEAL, RR S/D I/S HDL D 2003-2003 02
003 25652432 PLUG, RR S/D INR PNL HOLE (35MM DIA) (FITS 25MM HOLE) (ROUND) (12.934) D69 2003-2007 02
004 25758245 DEFLECTOR, RR S/D WAT D69 2003-2007 01
004 25758246 DEFLECTOR, RR S/D WAT D69 2003-2007 01
005 REINFORCEMENT, RR S/D INR PNL LK 2003-2007
006 25687638 PLATE, RR S/D PULL HDL HNGR (INCLS 30) D69 2003-2007 01
006 25687639 PLATE, RR S/D PULL HDL HNGR (INCLS 30) D69 2003-2007 01
007 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RR S/D PULL HDL HNGR PLT) 2003-2007 08
008 25731971 KNOB, RR S/D LKG ROD (PEWTER) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25743848) D (69I) (1ST DES) 2003-2003 02
008 25731972 KNOB, RR S/D LKG ROD (NEUTRAL) (**VPI 1-877-846-8243) (2003 DES FOR CARS W/RED SNAP ON LOCK KNOB) (2ND DES 25751122) D (70I) (1ST DES) 2003-2003 02
008 25731973 KNOB, RR S/D LKG ROD (GRAY) (**VPI 1-877-846-8243) (CARS W/RED SNAP ON LOCK KNOB) (FOR 2ND DES SEE 25751121) D (13I) (1ST DES) 2003-2003 02
008 25751121 KNOB, RR S/D LKG ROD (GRAY) (CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (FOR 1ST DES SEE 25731973) D (13I) (2ND DES) 2003-2003 02
008 25751122 KNOB, RR S/D LKG ROD (NEUTRAL) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731972) D (70I) (2ND DES) 2003-2003 02
008 25751206 KNOB, RR S/D LKG ROD (PEWTER) (FOR CARS W/SNAP THAT MATCHES COLOR OF LOCK KNOB) (1ST DES 25731971) D (69I) (2ND DES) 2003-2003 02
008 25751335 KNOB, RR S/D LKG ROD (EBONY) D69 (19I) 2003-2005 02
009 88952714 BEZEL, RR S/D LKG ROD P/BUT (GRAY) D (13I) 2003-2007 02
009 88952715 BEZEL, RR S/D LKG ROD P/BUT (PEWTER) D69 (69I) 2003-2003 02
009 88952716 BEZEL, RR S/D LKG ROD P/BUT (NEUTRAL) D69 (70I) 2003-2003 02
010 88980785 MOLDING, RR S/D CTR (PRIMED) (КРАСКА TO MATCH) D 2003-2007 01
010 88980786 MOLDING, RR S/D CTR (КРАСКА TO MATCH) D 2003-2007 01
011 88952733 PLATE, RR S/D ACSRY SW MT (USE IF PLATE IS VERY DARK PEWTER) (2ND DES 88983977) D (1ST DES) 2003-2003 01
011 88952734 PLATE, RR S/D ACSRY SW MT (USE IF PLATE IS VERY DARK PEWTER) (2ND DES 88983978) D (1ST DES) 2003-2003 01
011 88983977 PLATE, RR S/D ACSRY SW MT (EBONY) (USE IF PLATE IS EBONY) (1ST DES 88952733) D (13I, 70I) (2ND DES) 2003-2003 01
011 88983978 PLATE, RR S/D ACSRY SW MT (EBONY) (USE IF PLATE IS EBONY) (1ST DES 88952734) D (13I, 70I) (2ND DES) 2003-2003 01
012 25752964 BEZEL, RR S/D I/S HDL (EBONY) (USED ON VEHICLES W/EBONY BEZELS) (FOR 1ST DES SEE 25743291. WHEN REPLACING 2003, PEWTER MUST REPLACE ALL 4 BEZELS FRT/RR RH/LH) DG, DM (2ND DES) 2003-2003 01
012 25752964 BEZEL, RR S/D I/S HDL (EBONY) (USED ON VEHICLES W/EBONY BEZELS) (FOR 1ST DES SEE 25743291. WHEN REPLACING 2003, PEWTER MUST REPLACE ALL 4 BEZELS FRT/RR RH/LH) DR, DU (2ND DES) (EXPORT) 2003-2003 01
012 25752965 BEZEL, RR S/D I/S HDL (EBONY) DG, DM 2003-2003 01
012 25752965 BEZEL, RR S/D I/S HDL (EBONY) DR, DU (EXPORT) 2003-2003 01
013 25727743 COVER, RR S/D T/PNL (GRAY) (14.685) D (13I) 2003-2004 02
013 25727744 COVER, RR S/D T/PNL (PEWTER) (14.685) (**VPI 1-877-846-8243) D (69I) 2003-2003 02
013 25727745 COVER, RR S/D T/PNL (NEUTRAL) (14.685) D (70I) 2003-2004 02
013 25748814 COVER, RR S/D T/PNL (EBONY) (14.685) D (19I) 2003-2004 02
014 03539184 БОЛТ, RR S/D PULL HDL HNGR PLT (ATTACH TO HNGR PLT ASM) (14.683) D69 2003-2007 04
015 88982081 HANDLE, RR S/D PULL (PEWTER) (КРАСКАED) (14.691) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (FOR 2ND DES SEE 88983942) D (13I, 19I, 69I, 70I) (1ST DES) 2003-2003 02
015 88983942 HANDLE, RR S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (14.691) (USE IF ЧАСТЬ IS EBONY) (FOR 1ST DES SEE 88982081) D (13I, 19I, 69I, 70I) (2ND DES) 2003-2003 02
015 89041932 HANDLE, RR S/D PULL (PEWTER) (W/FAUX HYBRID WOOD INSERTS) (14.691) (USE IF ЧАСТЬ IS VERY DARK PEWTER) (2ND DES 89041933) D (13I, 19I, 70I) (1ST DES) 2003-2003 02
015 89041933 HANDLE, RR S/D PULL (EBONY) (W/FAUX HYBRID WOOD INSERTS) (14.691) (USE IF ЧАСТЬ IS EBONY) (1ST DES 89041932) D (13I, 19I, 70I) (2ND DES) 2003-2003 02
016 12337828 SCREW, HEX W/FLAT WA, TAP, M6.3X1.81X20, 13.2 O.D., AB PT, STL, PZ0R (RR S/D I/S HDL) 2003-2007 02
017 88952720 GRILLE, RDO RR S/D SPKR (GRAY) D (U57, U66, 13I) 2003-2003 01
017 88952721 GRILLE, RDO RR S/D SPKR (PEWTER) D (U57, U66, 69I) 2003-2003 01
017 88952722 GRILLE, RDO RR S/D SPKR (NEUTRAL) D (U57, U66, 70I) 2003-2003 01
017 88952723 GRILLE, RDO RR S/D SPKR (GRAY) D (U57, U66, 13I) 2003-2003 01
017 88952724 GRILLE, RDO RR S/D SPKR (PEWTER) D (U57, U66, 69I) 2003-2003 01
017 88952725 GRILLE, RDO RR S/D SPKR (NEUTRAL) D (U57, U66, 70I) 2003-2003 01
017 88983940 GRILLE, RDO RR S/D SPKR (EBONY) D (U57, U66, 19I) 2003-2003 01
017 88983941 GRILLE, RDO RR S/D SPKR (EBONY) D (U57, U66, 19I) 2003-2003 01
018 88981640 TRIM, RR S/D (GRAY) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DARK PEWTER TRIM) (FOR 2ND DES SEE 88953983) D (13I) (1ST DES) 2003-2003 01
018 88981641 TRIM, RR S/D (PEWTER) D (69I) 2003-2003 01
018 88981642 TRIM, RR S/D (NEUTRAL) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DARK PEWTER TRIM) (FOR 2ND DES SEE 88983984) D (70I) (1ST DES) 2003-2003 01
018 88981643 TRIM, RR S/D (GRAY) (USED ON VEHICLES BUILT W/DDOR PANELS W/VERY DARK PEWTER TRIM) (FOR 2ND DES SEE 88983985) D (13I) (1ST DES) 2003-2003 01
018 88981644 TRIM, RR S/D (PEWTER) D (69I) 2003-2003 01
018 88981645 TRIM, RR S/D (NEUTRAL) (USED ON VEHICLES BUILT W/DOOR PANELS W/VERY DARK PEWTER TRIM) (FOR 2ND DES SEE 88983986) D (70I) (1ST DES) 2003-2003 01
018 88983936 TRIM, RR S/D (EBONY) D (19I) 2003-2004 01
018 88983937 TRIM, RR S/D (EBONY) D (19I) 2003-2004 01
018 88983983 TRIM, RR S/D (GRAY) (14.685) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981640) D (13I) (2ND DES) 2003-2003 01
018 88983984 TRIM, RR S/D (NEUTRAL) (14.685) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981642) D (70I) (2ND DES) 2003-2003 01
018 88983985 TRIM, RR S/D (GRAY) (14.685) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981643) D (13I) (2ND DES) 2003-2003 01
018 88983986 TRIM, RR S/D (NEUTRAL) (14.685) (USED ON VEHICLES BUILT W/DOOR PANELS W/EBONY TRIM) (FOR 1ST DES SEE 88981645) D (70I) (2ND DES) 2003-2003 01
019 15888320 SPEAKER, RDO RR S/D (ACDelco #15888320) D69 (U66) 2003-2003 02
019 25660131 SPEAKER, RDO RR S/D (ACDelco #25660131) D69 (U57) 2003-2007 02
020 88952741 BRACKET, RR S/D PULL HDL (14.691) D 2003-2006 01
020 88952742 BRACKET, RR S/D PULL HDL (14.691) D 2003-2007 01
021 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (RR S/D T/PNL) 2003-2003 05
022 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (RR S/D T/PNL) 2003-2003 03
023 20049623 ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (FRT S/D TR FIN PNL) 2003-2007 02
024 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (FRT S/D T/PNL) 2003-2007 12
025 25750264 SWITCH, SI WDO (EBONY) (RR) D69 2003-2003 02
026 89042460 REINFORCEMENT, FRT S/D TR UPR D 2003-2007 01
027 15820928 COVER, RR S/D ACC HOLE (45MM DIA) (12.684) D69 2003-2007 02
028 11517641 STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (RR S/D LOCR) 2003-2007 08
029 11503749 ГАЙКА, M6X1 (RR S/D LOCR) (ACDelco #11503749) D69 2003-2007 02
030 ГАЙКА, RR S/D PULL HDL (ЧАСТЬ OF 6) 2003-2007
031 11515174 BARRIER, RR S/D INR PNL SND 2003-2007 02
032 11515174 BARRIER, RR S/D INR PNL SND 2003-2007 02
