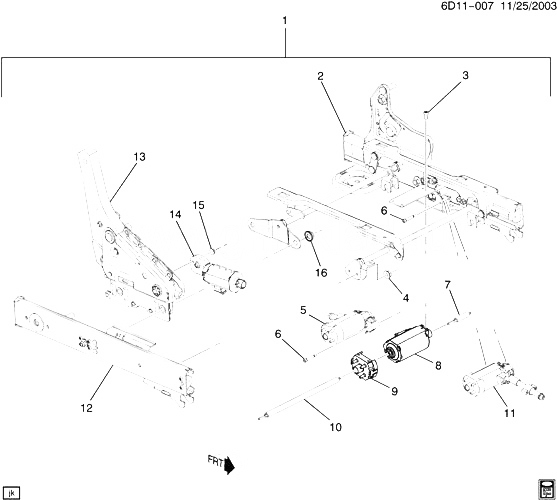

(6D11-007) - 2003 DG,DM РЕГУЛЯТОР ПАССАЖИРСКОГО СИДЕНЬЯ С ПРИВОДОМ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88995062 ADJUSTER, P/SEAT (INCLS 2-16) DG, DM (AH8) 2003-2003 01
002 ADJUSTER, P/SEAT INR 2003-2003
003 БОЛТ, P/SEAT ADJR ACTR (ЧАСТЬ OF 8) 2003-2003
004 ГАЙКА, P/SEAT OTR ADJR 2003-2003
005 88992547 ACTUATOR, P/SEAT ADJR VERT (BUILT W/STEEL MOTOR SHAFT ATTACHMENT) (FOR 2ND DES SEE 88992551) (INCLS 6) D69 2003-2003 01
005 88992551 ACTUATOR, P/SEAT ADJR VERT (BUILT W/PLASTIC MOTOR SHAFT ATTACHMENT) (FOR 1ST DES SEE 88992547) (INCLS 6) (VERTICAL) (FRT) (W/GRAY CONNECTOR) D69 2003-2003 01
006 БОЛТ, P/SEAT VERT ADJR (ЧАСТЬ OF 5, 11) 2003-2003
007 88995197 CABLE, P/SEAT HORIZ ADJR (ЧАСТЬ OF 8) (SHORT CABLE) D69 2003-2005 01
008 88995195 MOTOR, P/SEAT ADJR ACTR (INCLS 3, 7, 9, 10) (HORIZONTAL) D (AQ9) 2003-2003 01
009 BRACKET, P/SEAT ADJR ACTR (ЧАСТЬ OF 8) 2003-2003
010 88957638 CABLE, P/SEAT HORIZ ADJR (ЧАСТЬ OF 8) (LONG CABLE W/O MEMORY) D 2003-2003 01
011 88992548 ACTUATOR, P/SEAT ADJR VERT (BUILT PRIOR TO FEB 1 2003) (FOR 2ND DES SEE 88992553) (INCLS 6) (VERTICAL) (RR) D 2003-2003 01
011 88992553 ACTUATOR, P/SEAT ADJR VERT (BUILT FEB 1 2003 AFTER) (FOR 1ST DES SEE 88992548) (INCLS 6) (VERTICAL) (RR) (W/BLACK CONNECTOR) D 2003-2003 01
012 ADJUSTER, P/SEAT OTR 2003-2003
013 88992561 RECLINER KIT, P/SEAT (INCLS 14-16) DG, DM 2003-2003 01
014 88992805 MOTOR, P/SEAT RECL ACTR (ЧАСТЬ OF 13) (INCLS 15, 16) (11.377) DG, DM 2003-2003 01
015 ГАЙКА, P/SEAT RECL ACTR (ЧАСТЬ OF 13, 14) 2003-2003
016 ГАЙКА, P/SEAT RECL (ЧАСТЬ OF 13, 14) 2003-2003
