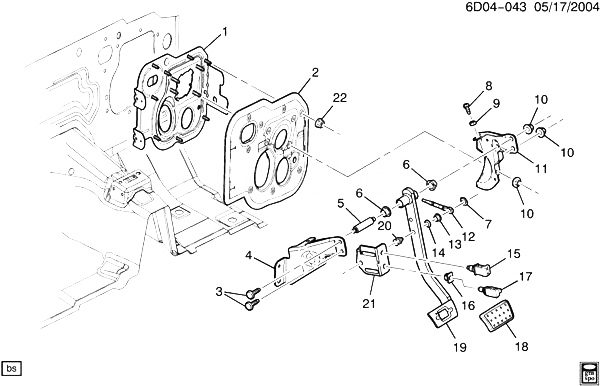

(6D04-043) - 2003 DR,DU69 ТОРМОЗНАЯ ПЕДАЛЬ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 REINFORCEMENT, DA PNL BRK PED BRKT 2003-2003
002 25737330 BARRIER, BRK PED BRKT SND DR, DU (M82) (EXPORT) 2003-2003 01
003 STUD, BRK PED BRKT (ЧАСТЬ OF 19) 2003-2003
004 BRACKET, BRK PED (ЧАСТЬ OF 19) 2003-2003
005 PIN, BRK PED PIV (ЧАСТЬ OF 19) 2003-2003
006 15594358 BUSHING, BRK PED PIV (ЧАСТЬ OF 19) (0.831) D 2003-2003 02
007 03817880 RETAINER, BRK PED PUSH ROD (ЧАСТЬ OF 19) (0.80 IN) (PUSH IN) D 2003-2003 01
008 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (ЧАСТЬ OF 19) (ACDelco #11517518) 2003-2003 01
009 ГАЙКА, BRK PED BRKT BR (ЧАСТЬ OF 19) 2003-2003
010 11514519 ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT) 2003-2003 06
011 BRACKET, BRK PED (ЧАСТЬ OF 19) 2003-2003
012 ROD, BRK PED PUSH (ЧАСТЬ OF 19) 2003-2003
013 15594358 BUSHING, BRK PED PIV (ЧАСТЬ OF 19) (0.831) D 2003-2003 02
014 00410230 WASHER, ПРУЖИНА 29/64 I.D., 11/16 O.D., 5/64 THK, PL (ЧАСТЬ OF 19) 2003-2003 01
015 25705396 SWITCH, ELEK BRK CONT BRK PED TCC CRCONT (4 TERMINAL- MATES W/CONN 12033704) (4.710) D 2003-2003 01
015 25705396 SWITCH, ELEK BRK CONT BRK PED TCC CRCONT (4 TERMINAL- MATES W/CONN 12033704) (4.710) D 2003-2003 01
015 25705396 SWITCH, ELEK BRK CONT BRK PED TCC CRCONT (4 TERMINAL- MATES W/CONN 12033704) D 2003-2003 01
016 10200424 RETAINER, S/LP SW (ЧАСТЬ OF 17) (ACDelco #D7085) D 2003-2003 01
017 25705395 SWITCH, S/LP A/TRNS SHFT LK CRCONT REL (INCLS 16) (ACDelco #D898A) D 2003-2003 01
018 25771615 COVER, BRK PED (ЧАСТЬ OF 19) DR, DU (M82) (EXPORT) 2003-2003 01
019 25744288 PEDAL, BRK (W/BRKT) (INCLS 3-8, 11-14, 18, 20, 21) DR, DU (M82) (EXPORT) 2003-2003 01
020 PIN, BRK PED PUSH ROD (ЧАСТЬ OF 19) 2003-2003
021 ACTUATOR, S/LP SW (ЧАСТЬ OF 19) 2003-2003
022 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR) 2003-2003 08
