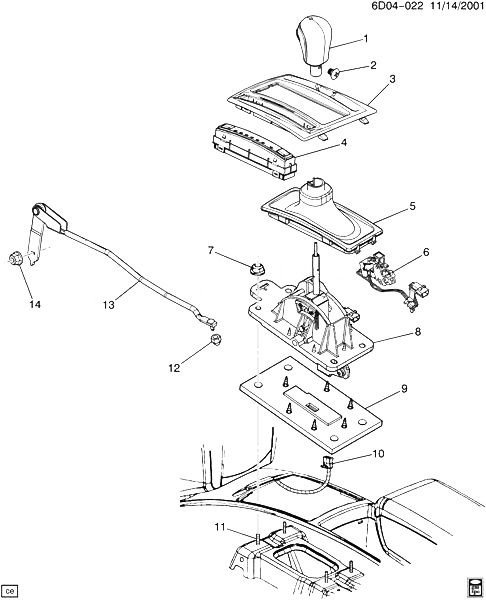

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88943415 |
KNOB, A/TRNS CONT LVR (EBONY KNOB W/MAHOGANY TRIM) (ЧАСТЬ OF 8) (WOODGRAIN) |
D69 (M82, N30) |
2003-2003 |
01 |
| 001 |
88943416 |
KNOB, A/TRNS CONT LVR (EBONY LEATHER) (ЧАСТЬ OF 8) |
D69 (M82, NP5) |
2003-2003 |
01 |
| 002 |
88943419 |
БОЛТ, A/TRNS CONT LVR KNOB (ЧАСТЬ OF 8) (M5X0.8)
| D69 (M82) |
2003-2004 |
01 |
|
| 003 |
25704395 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 4) (DK GREY METALLIC SOFT TOUCH) (FOR 2ND DESIGN SEE 25750673) |
DR, DU (U2X, U2Y, 69I) (1ST DES) (EXPORT) |
2003-2003 |
01 |
| 003 |
25704396 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE КОНСОЛЬ TWO TONE FEATURES NOTES TO DETERMINE CORRECT USAGE) (INCLS 4) (VERY DARK PEWTER) (FOR 2ND DESIGN SEE 25750674) |
DG, DM (U2R, U2S, U2V) (1ST DES) |
2003-2003 |
01 |
| 003 |
25750673 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (INCLS 4) (EBONY) (EBONY) (FOR 1ST DESIGN SEE 25704395)
| DR, DU (19I) (2ND DES) (EXPORT) |
2003-2003 |
01 |
|
| 003 |
25750674 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE КОНСОЛЬ TWO TONE FEATURES NOTES TO DETERMINE CORRECT USAGE) (INCLS 4) (EBONY) (FOR 1ST DESIGN SEE 25704396) |
DG, DM (M82) (2ND DES) |
2003-2003 |
01 |
| 004 |
25727784 |
DIAL, A/TRNS CONT IND (ЧАСТЬ OF 3) (PEWTER)
| D (M82) |
2003-2005 |
01 |
|
| 004 |
25750525 |
DIAL, A/TRNS CONT IND (ЧАСТЬ OF 3) (EBONY)
| D (M82) |
2003-2005 |
01 |
|
| 005 |
88943418 |
BOOT, A/TRNS CONT (ЧАСТЬ OF 8) (PEWTER) (FOR 2ND DES SEE 89047693) |
D69 (M82, NP5, N30) (1ST DES) |
2003-2003 |
01 |
| 005 |
89047693 |
BOOT, A/TRNS CONT (ЧАСТЬ OF 8) (EBONY) (FOR 1ST DES SEE 88943418) |
D69 (M82, NP5, N30) (2ND DES) |
2003-2003 |
01 |
| 006 |
88943417 |
SOLENOID, A/TRNS SHFT LK CONT (W/BRACKET) (ЧАСТЬ OF 8) (4.010)
| D69 (M82) |
2003-2005 |
01 |
|
| 007 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/TRNS RANGE SEL LVR CBL BRKT)
|
2003-2005 |
04 |
|
| 008 |
25770394 |
CONTROL, A/TRNS (INCLS 1, 2, 5, 6, 9) (EBONY LEATHER KNOB EBONY BOOT) (FOR 1ST DES SEE 25741765) |
D (M82, NP5) (2ND DES) |
2003-2003 |
01 |
| 008 |
25770395 |
CONTROL, A/TRNS (INCLS 1, 2, 5, 6, 9) (WOOD TRIM KNOB EBONY BOOT) (FOR 1ST DES SEE 25741765) |
D (M82, N30) (2ND DES) |
2003-2003 |
01 |
| 008 |
88943421 |
CONTROL, A/TRNS (INCLS 1, 2, 5, 6, 9) (LESS KNOB BOOT) |
D69 (M82) |
2003-2004 |
01 |
| 009 |
88943420 |
INSULATOR, A/TRNS CONT LVR (ЧАСТЬ OF 8) |
D69 (M82) |
2003-2005 |
01 |
| 010 |
25666549 |
HARNESS, AUDIO/VIDEO WRG (9.656) (ACDelco #25666549) |
D69 (U2X, U2Y) |
2003-2005 |
01 |
| 011 |
|
STUD, SHFT CONT HSG |
|
2003-2005 |
|
| 012 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (A/TRNS RANGE SEL ROD ADJ) |
|
2003-2003 |
01 |
| 013 |
25757505 |
LINK, A/TRNS RANGE SEL LVR |
D69 (LA3, LY9, M82) |
2003-2004 |
01 |
| 014 |
11519095 |
NUT-ACORN HEX, M8X1.0, 15MM THK, 9, 6047M, W/DOME. (A/TRNS RANGE SEL LVR)
|
2003-2005 |
01 |
|
