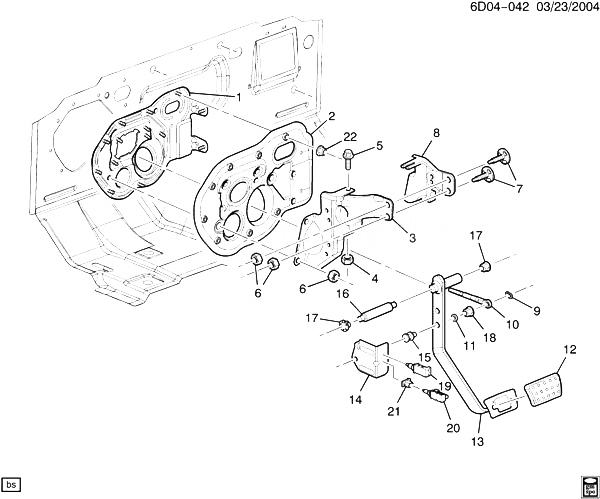

(6D04-042) - 2003 DG,DM69 ТОРМОЗНАЯ ПЕДАЛЬ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 REINFORCEMENT, DA PNL BRK PED BRKT 2003-2003
002 25737331 BARRIER, BRK PED BRKT SND DG, DM (M35) 2003-2003 01
002 25773182 BARRIER, BRK PED BRKT SND DG, DM (M82) 2003-2003 01
003 BRACKET, BRK PED (ЧАСТЬ OF 13) 2003-2003
004 ГАЙКА, BRK PED BRKT BR (ЧАСТЬ OF 13) 2003-2003
005 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (ЧАСТЬ OF 13) (ACDelco #11517518) 2003-2003 01
006 11514519 ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT) 2003-2003 06
007 STUD, BRK PED BRKT (ЧАСТЬ OF 13) 2003-2003
008 BRACKET, BRK PED (ЧАСТЬ OF 13) 2003-2003
009 03817880 RETAINER, BRK PED PUSH ROD (ЧАСТЬ OF 13) (0.80 IN) (PUSH IN) D 2003-2003 01
010 ROD, BRK PED PUSH (ЧАСТЬ OF 13) 2003-2003
011 00410230 WASHER, ПРУЖИНА 29/64 I.D., 11/16 O.D., 5/64 THK, PL (ЧАСТЬ OF 13) 2003-2003 01
012 25771615 COVER, BRK PED (ЧАСТЬ OF 13) DG, DM (M82) 2003-2003 01
013 25744289 PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-18) DG, DM (M35) 2003-2003 01
013 25744290 PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-18) DG, DM (M82) 2003-2003 01
014 ACTUATOR, S/LP SW (ЧАСТЬ OF 13) 2003-2003
015 PIN, BRK PED PUSH ROD (ЧАСТЬ OF 13) 2003-2003
016 PIN, BRK PED PIV (ЧАСТЬ OF 13) 2003-2003
017 15594358 BUSHING, BRK PED PIV (ЧАСТЬ OF 13) (0.831) D 2003-2003 02
018 10434956 BUSHING, BRK PED PUSH ROD (ЧАСТЬ OF 13) D 2003-2003 01
019 25705396 SWITCH, ELEK BRK CONT BRK PED TCC CRCONT (4 TERMINAL- MATES W/CONN 12033704) (4.710) D 2003-2003 01
019 25705396 SWITCH, ELEK BRK CONT BRK PED TCC CRCONT (4 TERMINAL- MATES W/CONN 12033704) (4.710) D 2003-2003 01
019 25705396 SWITCH, ELEK BRK CONT BRK PED TCC CRCONT (4 TERMINAL- MATES W/CONN 12033704) D 2003-2003 01
020 25705395 SWITCH, S/LP A/TRNS SHFT LK CRCONT REL (INCLS 21) (ACDelco #D898A) D 2003-2003 01
021 10200424 RETAINER, S/LP SW (ЧАСТЬ OF 20) (ACDelco #D7085) D 2003-2003 01
022 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR) 2003-2003 08
