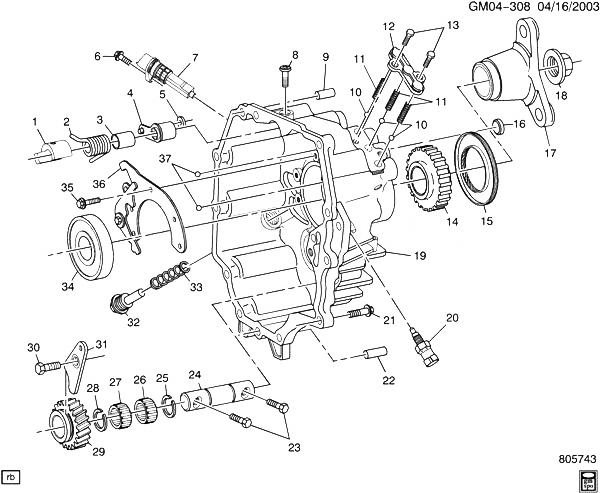

(GM04-308) - 2003 DG,DM 5-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 3 (M35) ЗАДНИЙ CASE CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89048029 RETAINER, SHFT SHF D (M35) 2003-2004 01
002 89048037 ПРУЖИНА, SHFT LVR D (M35) 2003-2004 01
003 89048046 BUSHING, SHFT SHF D (M35) 2003-2004 01
004 89048047 LEVER, SEL CONT D (M35) 2003-2004 01
005 89048051 ROLLER, SHFT SHF DTNT (8X20X8MM) D (M35) 2003-2004 01
006 12369459 БОЛТ, VEH SPD SEN (4.329) (ACDelco #12369459) D (M35) 2003-2004 01
007 09114603 SENSOR, VEH SPD (ACDelco #213-1513) DG, DM (M35) 2003-2003 01
008 89048100 БОЛТ, SHFT SHF RET D (M35) 2003-2004 01
009 89048048 PIN, TRANS RR CASE LOC D (M35) 2003-2004 02
010 89048049 BALL, SHFT SHF DTNT D (M35) 2003-2004 03
011 89048036 ПРУЖИНА, SHFT SHF DTNT BALL D (M35) 2003-2004 03
012 89048050 COVER, SHFT SHF DTNT SPR D (M35) 2003-2004 01
013 89047986 БОЛТ, SHFT SHF DTNT SPR CVR (M6X18X8.8) (0.780) D (M35) 2003-2004 02
014 89047987 КОЛЕСО, VEH SPD SEN RELUCTOR (ACDelco #89047987) DG, DM69 (M35) 2003-2003 01
015 88996480 SEAL, MAIN SHF RR D (M35) 2003-2004 01
016 89048039 PLUG, SHFT SHF HOLE D (M35) 2003-2004 01
017 88996481 FLANGE, PROP SHF TRANS D69 (M35) 2003-2004 01
018 88996482 ГАЙКА, PROP SHF TRANS FLG DG, DM69 (M35) 2003-2003 01
019 89048181 CASE, TRANS RR D (M35) 2003-2004 01
020 88923666 SWITCH, B/U LP (W/5 SPD M/TRANS) (ACDelco #E2216D) (2ALL MAKES) D 2003-2003 AR
020 90482454 SWITCH, B/U LP (ACDelco #D2215D) DG, DM69 (M35) 2003-2003 01
021 89048104 БОЛТ, TRANS CASE (M6X35MM) D (M35) 2003-2004 09
021 89048105 БОЛТ, TRANS CASE (M6X60MM) D (M35) 2003-2004 01
022 89048048 PIN, TRANS RR CASE LOC D (M35) 2003-2004 02
023 89048103 БОЛТ, REV IDLER GR SHF D (M35) 2003-2004 02
024 89047982 SHAFT, REV IDLER GR D (M35) 2003-2004 01
025 89048045 RING, REV IDLER GR RET D (M35) 2003-2004 02
026 89047994 BEARING, REV IDLER GR D (M35) 2003-2004 02
027 89047994 BEARING, REV IDLER GR D (M35) 2003-2004 02
028 89048045 RING, REV IDLER GR RET D (M35) 2003-2004 02
029 89048044 GEAR, REV IDLER D (M35) 2003-2004 01
030 89048102 БОЛТ, REV IDLER GR SHF BRKT D (M35) 2003-2004 01
031 89048031 RETAINER, REV IDLER GR D (M35) 2003-2004 01
032 89048038 PLUG, OFFSET SHFT LVR RTN SPR HOLE D (M35) 2003-2004 01
033 89048035 ПРУЖИНА, OFFSET SHFT LVR RTN D (M35) 2003-2004 01
034 89047988 BEARING, MAIN SHF RR D (M35) 2003-2004 01
035 89048101 БОЛТ, FRT MAIN SHF RR BRG RET D (M35) 2003-2004 05
036 89048030 RETAINER, MAIN SHF RR BRG D (M35) 2003-2004 01
037 89048049 BALL, SHFT SHF INTLK D (M35) 2003-2004 02
