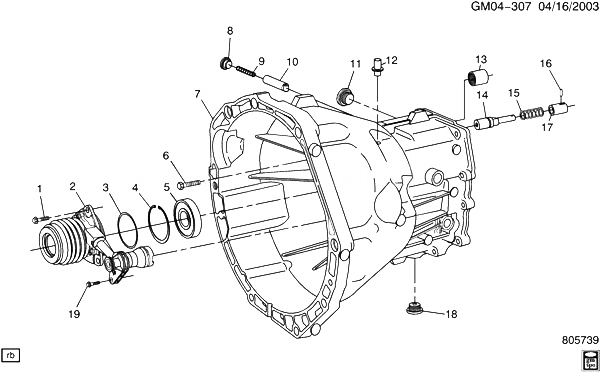

(GM04-307) - 2003 DG,DM 5-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 2 (M35) FRONT CASE CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11518202 БОЛТ, HFH, M10X1.5X30, 22.0 00, 6202M, 6280M, TAP, TR, P-PT (CLU ACTR CYL) 2003-2004 03
002 25695299 CYLINDER, CLU ACTR (INCLS 3) D (M35) 2003-2004 01
003 SEAL, CLU ACTR CYL (O RING) (ЧАСТЬ OF 2) 2003-2003
004 89047968 RING, INPUT SHF BRG RET (80X2.5MM) D (M35) 2003-2004 01
004 89047969 RING, INPUT SHF BRG RET (80X2.4MM) D (M35) 2003-2004 01
004 89047970 RING, INPUT SHF BRG RET (80X2.3MM) D (M35) 2003-2004 01
005 89047971 BEARING, INPUT SHF D (M35) 2003-2004 01
006 89047976 БОЛТ, REV INHIBITOR CAM D (M35) 2003-2004 01
007 89048180 CASE, TRANS FRT D (M35) 2003-2004 01
008 89047983 PLUG, SHFT SHF DTNT D (M35) 2003-2004 01
009 89047984 ПРУЖИНА, SHFT SHF DTNT D (M35) 2003-2004 01
010 89047985 DETENT, SHFT SHF D (M35) 2003-2004 01
011 88996479 PLUG, TRANS OIL FIL D (M35) 2003-2004 01
012 15852707 VENT, M/TRNS (5.387) D (M35) 2003-2004 01
013 BEARING, SHFT SHF 2003-2003
014 89048177 CAM, REV INHIBITOR (INCLS 15-17) D (M35) 2003-2004 01
015 ПРУЖИНА, REV INHIBITOR (ЧАСТЬ OF 14) 2003-2003
016 PIN, REV INHIBITOR (ЧАСТЬ OF 14) 2003-2003
017 BUSHING, REV SHFT BLK (ЧАСТЬ OF 14) 2003-2003
018 88996478 PLUG, TRANS OIL DRN D (M35) 2003-2004 01
019 89047986 БОЛТ, CLU ACTR CYL (M6X18X8.8) D (M35) 2003-2004 01
