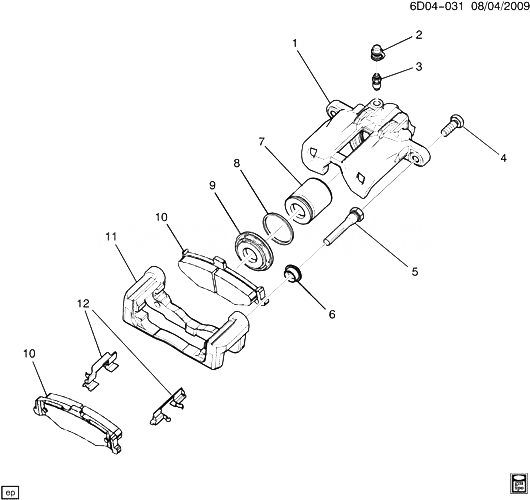

(6D04-031) - 2003 D69 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89060218 CALIPER, RR BRK (INCLS 2, 3, 7-9) (ACDelco #172-2345) D (JL9) 2003-2003 01
001 89060219 CALIPER, RR BRK (INCLS 2, 3, 7-9) (ACDelco #172-2346) D (JL9) 2003-2003 01
002 88951992 CAP, RR BRK BLEDR VLV (ЧАСТЬ OF 1) D69 2003-2003 02
003 88951991 VALVE, RR BRK CLPR BLEDR (ЧАСТЬ OF 1) D69 2003-2003 02
004 БОЛТ, RR BRK CLPR GDE PIN (ЧАСТЬ OF 1, 10) (*KIT1, KIT2) 2003-2003
005 PIN, RR BRK CLPR GDE (*KIT1) 2003-2003
006 BOOT, RR BRK CLPR GDE PIN (*KIT1, KIT2) 2003-2003
007 PISTON, RR BRK CLPR 2003-2003
008 SEAL, RR BRK CLPR PSTN (*KIT2) 2003-2003
009 BOOT, RR BRK CLPR PSTN (*KIT2) 2003-2003
010 89060217 PAD KIT, RR DISC BRK (INCLS 4, 12) (ACDelco #171-0883) D (JL9) 2003-2004 01
011 89047767 BRACKET, RR BRK CLPR D (JL9) 2003-2007 02
012 SHIM, RR DISC BRK PAD (ЧАСТЬ OF 10) 2003-2003
K01 89047759 PIN KIT, RR BRK CLPR GDE (INCLS 4-6) (INCLS 2 PINS, 2 SEALS 2 (2.75) БОЛТS) (ACDelco #179-2044) D69 2003-2007 02
K02 89060223 CALIPER KIT, RR BRK (INCLS 4, 6, 8, 9) D (JL9) 2003-2007 02
