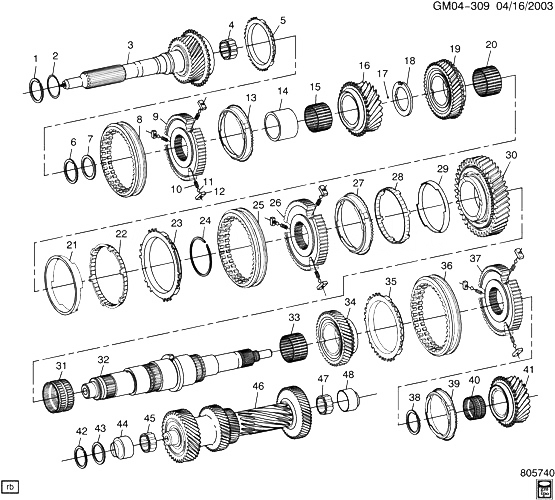

(GM04-309) - 2003 DG,DM 5-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 4 (M35) GEARS SHAFTS CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89048056 RING, INPUT SHF BRG RET (35X2.0MM) D (M35) 2003-2004 01
002 89048073 SHIM, INPUT SHF BRG (35X45X2.1MM) D (M35) 2003-2004 01
002 89048074 SHIM, INPUT SHF BRG (35X45X2.2MM) D (M35) 2003-2004 01
002 89048075 SHIM, INPUT SHF BRG (35X45X2.3MM) D (M35) 2003-2004 01
002 89048076 SHIM, INPUT SHF BRG (35X45X2.4MM) D (M35) 2003-2004 01
002 89048077 SHIM, INPUT SHF BRG (35X45X2.5MM) D (M35) 2003-2004 01
003 89047979 SHAFT, INPUT (REQUIRES USE OF 89048055 THRUST WASHER WHEN REPLACING INPUT SHAFT) D (M35) 2003-2004 01
004 89047971 BEARING, INPUT SHF D (M35) 2003-2004 01
005 89048083 RING, 3RD 4TH GR SYN D (M35) 2003-2004 02
006 89048056 HUB, 3RD GR SYN (35X2.0MM) (4.412) D (M35) 2003-2004 01
007 89048056 HUB, 3RD GR SYN (35X2.0MM) (4.412) D (M35) 2003-2004 01
007 89048078 HUB, 3RD GR SYN (35X2.1MM) D (M35) 2003-2004 01
007 89048079 HUB, 3RD GR SYN (35X2.2MM) D (M35) 2003-2004 01
007 89048080 HUB, 3RD GR SYN (35X2.3MM) D (M35) 2003-2004 01
007 89048081 HUB, 3RD GR SYN (35X2.4MM) D (M35) 2003-2004 01
007 89048082 HUB, 3RD GR SYN (35X2.5) D (M35) 2003-2004 01
008 SLEEVE, 3RD 4TH GR SYN (ЧАСТЬ OF 9) 2003-2003
009 89048090 SYNCHRONIZER, 3RD 4TH GR (INCLS 8, 10-12) D (M35) 2003-2004 01
010 89048099 ПРУЖИНА, 3RD 4TH GR SYN DTNT (ЧАСТЬ OF 9) D (M35) 2003-2004 03
011 88893972 BALL, 3RD 4TH GR SYN DTNT (ЧАСТЬ OF 9) D (M35) 2003-2004 03
012 93321273 INSERT, 2ND 3RD GR SYN (ЧАСТЬ OF 9) (4.416) D (M35) 2003-2004 03
013 89048083 RING, 3RD 4TH GR SYN D (M35) 2003-2004 02
014 89048072 BUSHING, 3RD GR D (M35) 2003-2004 01
015 89047990 BEARING, 3RD GR (ACDelco #89047990) D (M35) 2003-2004 01
016 89047999 GEAR, 3RD D (M35) 2003-2004 01
017 89048064 BALL, 2ND GR THR WA LOC D (M35) 2003-2004 01
018 89048063 WASHER, 2ND GR THR D (M35) 2003-2004 01
019 89048000 GEAR, 2ND D (M35) 2003-2004 01
020 89047991 BEARING, 2ND GR D (M35) 2003-2004 01
021 89048085 CONE, 1ST GR SYN INR D (M35) 2003-2004 01
022 89048087 CONE, 2ND GR SYN OTR D (M35) 2003-2004 01
023 89048084 RING, 1ST 2ND GR SYN D (M35) 2003-2004 01
024 89048057 RING, 1ST 2ND GR SYN RET (48X2.0MM) D (M35) 2003-2004 01
024 89048058 RING, 1ST 2ND GR SYN RET (48X1.95MM) D (M35) 2003-2004 01
024 89048059 RING, 1ST 2ND GR SYN RET (48X1.90MM) D (M35) 2003-2004 01
024 89048060 RING, 1ST 2ND GR SYN RET (48X1.85MM) D (M35) 2003-2004 01
024 89048061 RING, 1ST 2ND GR SYN RET (48X1.80MM) D (M35) 2003-2004 01
025 SLEEVE, 1ST 2ND GR SYN (ЧАСТЬ OF 26) 2003-2003
026 89048089 SYNCHRONIZER, 1ST 2ND GR (INCLS 25) D (M35) 2003-2004 01
027 89048084 RING, 1ST 2ND GR SYN D (M35) 2003-2004 01
028 89048086 CONE, 1ST GR SYN OTR D (M35) 2003-2004 01
029 89048085 CONE, 1ST GR SYN INR D (M35) 2003-2004 01
030 89048178 GEAR, 1ST D (M35) 2003-2004 01
031 89047989 BEARING, MAIN SHF FRT D (M35) 2003-2004 01
032 89047980 SHAFT, MAIN D (M35) 2003-2004 01
033 89047995 BEARING, REV GR (RED) (0-.002MM) D (M35) 2003-2004 01
033 89047996 BEARING, REV GR (BLUE) (.001-.003MM) D (M35) 2003-2004 01
033 89047997 BEARING, REV GR (GREY) (.003-.005MM) D (M35) 2003-2004 01
033 89047998 BEARING, REV GR (GREEN) (.005-.007MM) D (M35) 2003-2004 01
034 89048002 GEAR, REV D (M35) 2003-2004 01
035 89048088 RING, 5TH REV GR SYN D (M35) 2003-2004 01
036 SLEEVE, 5TH REV GR SYN (ЧАСТЬ OF 37) 2003-2003
037 89048091 SYNCHRONIZER, 5TH REV GR (INCLS 36) D (M35) 2003-2004 01
038 89048057 RING, 5TH REV GR SYN RET (48X2.0MM) D (M35) 2003-2004 01
038 89048058 RING, 5TH REV GR SYN RET (48X1.95MM) D (M35) 2003-2004 01
038 89048059 RING, 5TH REV GR SYN RET (48X1.90MM) D (M35) 2003-2004 01
038 89048060 RING, 5TH REV GR SYN RET (48X1.85MM) D (M35) 2003-2004 01
038 89048061 RING, 5TH REV GR SYN RET (48X1.80MM) D (M35) 2003-2004 01
039 89048088 RING, 5TH REV GR SYN D (M35) 2003-2004 01
040 89047993 BEARING, 5TH GR D (M35) 2003-2004 01
041 89048003 GEAR, 5TH D (M35) 2003-2004 01
042 89048030 RETAINER, MAIN SHF RR BRG D (M35) 2003-2004 01
043 89048065 WASHER, CNTR GR THR (36.5X44X1.0MM) D (M35) 2003-2004 01
043 89048066 WASHER, CNTR GR THR (36.5X44X1.7MM) D (M35) 2003-2004 01
043 89048067 WASHER, CNTR GR THR (36.5X44X1.8MM) D (M35) 2003-2004 01
043 89048068 WASHER, CNTR GR THR (36.5X44X2.0MM) D (M35) 2003-2004 01
043 89048069 WASHER, CNTR GR THR (36.5X44X2.1MM) D (M35) 2003-2004 01
043 89048070 WASHER, CNTR GR THR (36.5X44X2.2MM) D (M35) 2003-2004 01
043 89048071 WASHER, CNTR GR THR (36.5X44X2.3MM) D (M35) 2003-2004 01
044 CAP, CNTR GR BRG (ЧАСТЬ OF 45, 47) 2003-2003
045 89048052 BEARING, CNTR GR (INCLS 44, 48) D (M35) 2003-2004 01
046 89047981 GEAR, CNTR D (M35) 2003-2004 01
047 89048052 BEARING, CNTR GR RR (INCLS 44, 48) D (M35) 2003-2004 01
048 CAP, CNTR GR BRG (ЧАСТЬ OF 45, 47) 2003-2003
