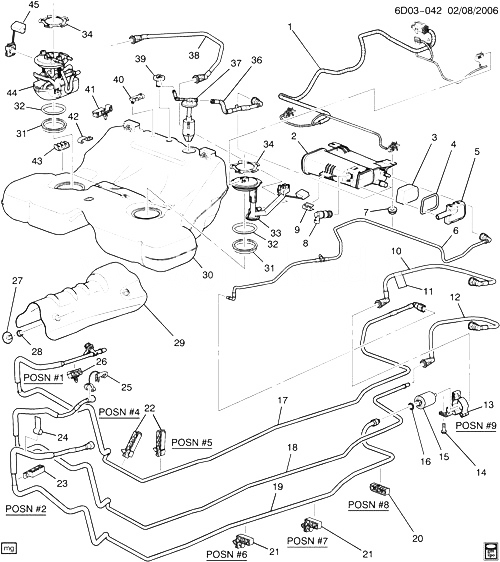

(6D03-042) - 2003-2004 D69 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ (LY9/2.6M,LA3/3.2N) CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19116628 HARNESS, FUEL SDR WRG (3.115) D (LA3, LY9) 2003-2004 01
001 19116628 HARNESS, FUEL SDR WRG D (LA3, LY9) 2003-2004 01
002 19177355 CANISTER, EVAP EMIS (CANISTER WITHOUT COVER OR FILTER) (INCLS 3, 4) (ACDelco #215-644) D69 2003-2004 01
003 FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (ЧАСТЬ OF 2) 2003-2004
004 SEAL, EVAP EMIS CNSTR AIR INL OPG CVR (ЧАСТЬ OF 2) 2003-2004
005 17114053 COVER, EVAP EMIS CNSTR AIR INL OPG (W/O SCREEN) D69 2003-2004 01
006 25745471 PIPE, EVAP EMIS CNSTR PURGE D 2003-2003 01
007 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) 2003-2004 01
008 25932573 VALVE, EVAP EMIS CNSTR VENT SOL (USED ON ASM 17114052) (ACDelco #214-2230) D 2003-2003 01
009 17114056 RETAINER, EVAP EMIS CNSTR VENT VLV DIAPH D 2003-2004 01
010 25679212 PIPE, FUEL FEED RR D (LA3, LY9) 2003-2004 01
011 LABEL, FUEL FEED RTN PIPE CAUTION 2003-2004
012 25679211 PIPE, FUEL RTN RR D (LA3, LY9) 2003-2004 01
013 25701014 RETAINER, FUEL FLTR (POSN 9) D69 (LA3, LY9) 2003-2003 01
014 11516872 БОЛТ-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (FUEL FLTR BRKT) 2003-2004 01
015 25121293 ФИЛЬТР, FUEL (GF578 GF627) (ACDelco #GF578) D (LA3) 2003-2004 01
015 25121293 ФИЛЬТР, FUEL (GF578 GF627) (ACDelco #GF578) D (LY9) 2003-2004 01
015 88915468 ФИЛЬТР, FUEL (ACDelco #GF578F) (DURAPACK) (BULK PKG, QTY 12) D (LA3) 2003-2004 01
015 88915468 ФИЛЬТР, FUEL (ACDelco #GF578F) (DURAPACK) (BULK PKG, QTY 12) D (LY9) 2003-2004 01
016 22514722 SEAL, FUEL FEED FRT PIPE (O RING) (ЧАСТЬ OF PIPE, FEED RTN ASM BUNDLE) (7.35MM ID X 1.66MM THK) (ACDelco #217-452) D 2003-2004 01
017 25769211 PIPE, EVAP EMIS CNSTR PURGE D 2003-2004 01
018 25749837 PIPE, FUEL RTN D 2003-2004 01
019 25749836 PIPE, FUEL FEED D69 (LA3) 2003-2004 01
020 25688547 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (POSN 8) (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D 2003-2003 01
020 25688547 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (POSN 8) (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) (3.162) D 2003-2003 01
021 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) D 2003-2003 02
021 15270078 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (USES RETAINER PIN FOR ATTACHMENT) (3.162) D 2003-2003 02
022 25726788 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D 2003-2003 02
022 25726788 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) (3.162) D 2003-2003 02
023 25749839 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (POSN 2) (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) D 2003-2004 01
024 LABEL, FUEL FEED RTN PIPE CAUTION 2003-2004
025 25654373 CLIP, FUEL FEED RTN HOSE (PLASTIC) D69 2003-2003 02
025 25654373 CLIP, FUEL FEED RTN HOSE (PLASTIC) D 2003-2004 02
026 25688548 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (POSN 1) (CENTERED PUSH PIN W/3 HOLES 1@ 9.50MM, 2@ 7.95MM) D 2003-2003 01
026 25688548 RETAINER, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (POSN 1) (CENTERED PUSH PIN W/3 HOLES 1@ 9.50MM, 2@ 7.95MM) (3.162) D 2003-2003 01
027 25679213 PIN, F/TNK UPR SHLD D 2003-2004 04
028 RETAINER, F/TNK SHLD 2003-2004
029 25679209 SHIELD, F/TNK D 2003-2004 01
030 25750933 TANK, FUEL (INCLS 30-32, 34, 36-38) D69 2003-2003 01
031 RING, FUEL SDR 2003-2004
032 25901272 SEAL, FUEL SDR (ACDelco #G37) D 2003-2004 AR
033 88965813 SENDER KIT, FUEL (FOR AUXILARY МОДУЛЬ) (ACDelco #MU1579) D 2003-2004 01
034 25740096 CAM, FUEL SDR (ACDelco #TR23) D 2003-2004 02
035 VALVE, F/TNK VENT (ЧАСТЬ OF 23) 2003-2004
036 VALVE, F/TNK VENT (ЧАСТЬ OF 30) 2003-2004
037 VALVE, F/TNK VENT (ЧАСТЬ OF 30) 2003-2004
038 15951521 PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) D 2003-2004 01
039 VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 23) 2003-2004
040 22678829 SENSOR, F/TNK PRESS (W/SDR) D69 2003-2004 01
041 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) D 2003-2003 01
041 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) D 2003-2003 01
042 RETAINER, FUEL SDR (ЧАСТЬ OF 23) 2003-2004
043 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (ЧАСТЬ OF 23) 2003-2004
044 19206462 МОДУЛЬ KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (ACDelco #M10160) D69 (LA3, LY9) 2003-2004 01
044 19206462 МОДУЛЬ KIT, F/PMP CYC CONT (W/O FUEL LVL SEN) (3.107) (ACDelco #M10160) D69 (LA3, LY9) 2003-2004 01
045 88965812 SENSOR KIT, FUEL LVL (FOR PRIMARY МОДУЛЬ) (ACDelco #SK1148) D 2003-2004 01
