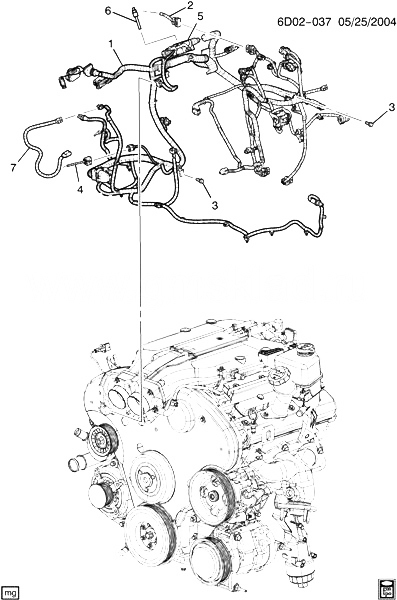

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25761163 |
HARNESS, ENG WRG (INCLS 5-7) |
DG, DM (M82, FE3) |
2003-2003 |
01 |
| 001 |
25761163 |
HARNESS, ENG WRG (INCLS 5-7) |
DM (M82, FE1) (EXC JL4) |
2003-2003 |
01 |
| 001 |
25761163 |
HARNESS, ENG WRG (INCLS 5-7) |
DR (M82, FE1) (EXC JL4) (EXPORT) |
2003-2003 |
01 |
| 001 |
25761163 |
HARNESS, ENG WRG (INCLS 5-7) |
DR (M82, FE3) (EXPORT) |
2003-2003 |
01 |
| 001 |
25761163 |
HARNESS, ENG WRG (INCLS 5-7) |
DU (M82, FE3) (EXPORT) |
2003-2003 |
01 |
| 001 |
25761166 |
HARNESS, ENG WRG (INCLS 5-7) |
DG, DM (M35) |
2003-2003 |
01 |
| 002 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/I/P ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2004 |
|
| 003 |
11517070 |
БОЛТ, HVY HFH, M10X1.5X20 (ENG WRG HARN GND) |
|
2003-2004 |
02 |
| 004 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2004 |
|
| 005 |
12110206 |
CONNECTOR, MDL-ENG CONT (INCLS 6) (ЧАСТЬ OF 1) (BLUE) (24-WAY FEMALE) (W/O LEADS) |
D69 |
2003-2004 |
01 |
| 005 |
15306246 |
CONNECTOR, MDL-ENG CONT (INCLS 6) (ЧАСТЬ OF 1) (BLACK) (64-WAY FEMALE) (W/COVER TPA) (W/O LEADS) |
D |
2003-2004 |
01 |
| 005 |
88952771 |
CONNECTOR, MDL-ENG CONT (INCLS 6) (ЧАСТЬ OF 1) (BLACK) (64-WAY) (W/O LEADS (UPPER LOCATION) (2.530) |
D |
2003-2004 |
01 |
| 006 |
22688141 |
WIRE, ECM (ЧАСТЬ OF 1, 5) |
D69 |
2003-2004 |
01 |
| 007 |
10340314 |
HARNESS, FRT WHL SPD SEN WRG (MAY REQ.TO REUSE/RELOCATE CLIPS AS NEEDED) (ЧАСТЬ OF 1) (REPAIR CONN TO SENSOR ONLY) |
D69 |
2003-2004 |
02 |
