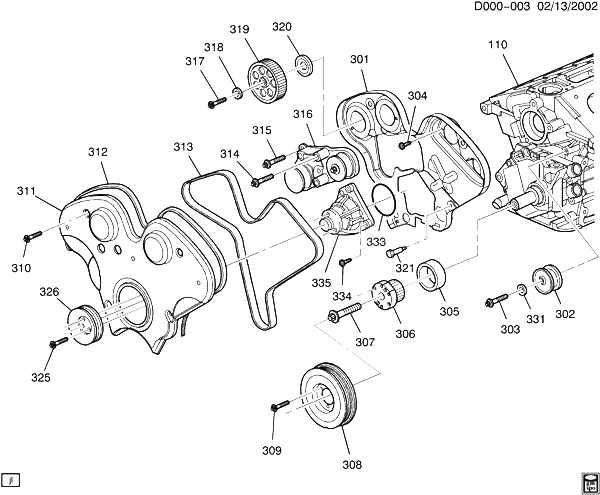

(D000-003) - 2003-2004 D ДВИГАТЕЛЬ В СБОРЕ-2.6L V6 ЧАСТЬ 3 ПЕРЕДНЯЯ КРЫШКА И ОХЛАЖДЕНИЕ (LY9/2.6M) CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
110 24402850 ДВИГАТЕЛЬ, 2.6 L (159 CID) (CODE H2) D (LY9, M82) 2003-2004 01
301 24449774 COVER, TMG BELT RR D (LY9) 2003-2004 01
302 93170387 PULLEY, TMG BELT IDLER (INCLS PULLEY WASHER) (W/O ADJUSTMENT ECCENTRIC) D (LY9) 2003-2004 02
303 24449775 БОЛТ, TMG BELT IDLER PUL D (LY9) 2003-2004 01
304 52368558 БОЛТ, M6X1X12, 10 THD, 11.6 OD, HDR PT, 9.8, POR (БОЛТ, M6X1X12, 10 THD, 11.6 OD, HDR PT, 9.8, POR) 2003-2004 07
305 90298202 SPACER, CR/SHF SPKT (0.738) D (LY9) 2003-2004 01
306 90409548 SPROCKET, CR/SHF D (LY9) 2003-2004 01
307 24465607 БОЛТ, CR/SHF SPKT D (LY9) 2003-2004 01
308 13101722 BALANCER, CR/SHF D (LY9) 2003-2004 01
309 11094881 БОЛТ, CR/SHF BALR (M8X16) (2.183) D (LY9) 2003-2004 03
310 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (TMG BELT FRT CVR) 2003-2004 05
311 90572780 COVER, TMG BELT FRT D (LY9) 2003-2004 01
312 24416763 GASKET, TMG BELT FRT CVR D (LY9) 2003-2004 01
313 09128500 BELT, TMG D (LY9) 2003-2004 01
314 11094791 БОЛТ, TMG BELT TENSR BRKT (M10X1.5X45 TORX) (9.173) D (LY9) 2003-2004 02
315 11095521 БОЛТ, TMG BELT TENSR BRKT D (LY9) 2003-2004 01
316 24449772 BRACKET, TMG BELT TENSR (INCLS PULLEYS) D (LA3, LY9) 2003-2004 01
317 90466737 БОЛТ, CM/SHF SPKT (M10X1.5X82) D (LY9) 2003-2004 02
317 90573287 БОЛТ, CM/SHF SPKT (M10X1.5X123) D (LY9) 2003-2004 02
318 90108392 WASHER, CM/SHF SPKT (42MM) (0.662) D (LY9) 2003-2004 04
319 90466551 SPROCKET, CM/SHF (CYL 1, 3, 5) D (LY9) 2003-2004 02
319 90573286 SPROCKET, CM/SHF (CYL 2, 4, 6) D (LY9) 2003-2004 02
320 90180529 SEAL, CM/SHF FRT OIL (0.529) D (LY9) 2003-2004 04
320 90180529 SEAL, CM/SHF FRT OIL (OPTIONAL-90285291-MAKE NTBP-USE 90122609-FSU-90180529) (0.529) D (LY9) 2003-2004 AR
321 90412367 БОЛТ, TMG BELT RR CVR (M8X1.25X46.5) D (LY9) 2003-2004 01
325 11083432 БОЛТ, W/PMP PUL (HEX, M6X1X16, 13 THD, 8.8, GME 00252-B6, ADH QT 000 151.) D (LY9) 2003-2004 03
326 90502558 PULLEY, W/PMP D (LY9) 2003-2004 01
331 90572531 WASHER, TMG BELT IDLER PUL D (LY9) 2003-2004 01
333 90354908 SEAL, W/PMP (O RING) (ЧАСТЬ OF 335) (70MM DIA) (ACDelco #251-625) D (LY9) 2003-2004 01
334 11093621 БОЛТ, W/PMP (M10X1.5X24, TORX) (2.042) D (LY9) 2003-2004 03
335 55352002 PUMP KIT, WAT (W/SEAL) (INCLS 333) (ACDelco #251-678) D (LY9) 2003-2004 01
