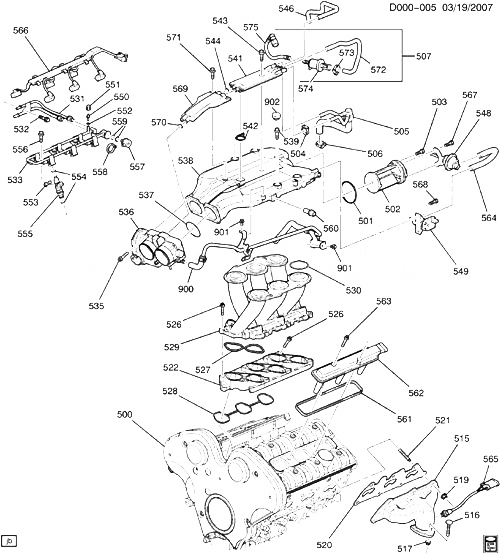

(D000-005) - 2003-2004 D ДВИГАТЕЛЬ В СБОРЕ-2.6L V6 ЧАСТЬ 5 КОЛЛЕКТОР ДЕТАЛИ КОМПЛЕКТА (LY9/2.6M) CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
500 24402850 ДВИГАТЕЛЬ, 2.6 L (159 CID) (CODE H2) D (LY9, M82) 2003-2004 01
501 SEAL, INT MANIF TUNING VLV HSG BORE PLUG (O RING) (ЧАСТЬ OF 502) 2003-2004
502 90411871 VALVE, INT MANIF TUNING (INCLS 501, 548, 567) D (LY9) 2003-2004 01
503 11517669 БОЛТ-HFH, M6X1X18, 16 THD, 14.2 OD, 9.8, 7114M (БОЛТ, INT MANIF TUNING VLV) (ACDelco #11517669) D (LY9) 2003-2004 02
504 90298229 CЛАМПА, PCV HOSE (14.5MM DIA) D (LY9) 2003-2004 02
505 55352541 HOSE, PCV D (LY9) 2003-2004 01
506 11516221 CЛАМПА, PCV HOSE (22MM DIA) (8.948) D (LY9) 2003-2004 01
507 24461169 VALVE, EVAP EMIS CNSTR CONT (INCLS 572, 574, 575) (ACDelco #214-1074) D (LY9, LA3) 2003-2004 01
515 24412092 MANIFOLD, EXH (INCLS 516) D (LY9, LA3) 2003-2004 01
515 24412093 MANIFOLD, EXH (INCLS 516) D (LY9, LA3) 2003-2004 01
516 STUD, EXH MANIF PIPE (ЧАСТЬ OF 515) 2003-2004
517 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (CTLTC CONV) (8.915) (ACDelco #11514596) 2003-2004 04
519 90502418 ГАЙКА, EXH MANIF (M8) D (LY9) 2003-2004 14
520 12992739 GASKET, EXH MANIF D (LY9) 2003-2004 02
521 01635540 STUD, M8X1.25XM8X1.25X41 ZC (STUD, EXH MANIF) 2003-2004 14
522 90467003 FLANGE, INT MANIF D (LY9) 2003-2004 01
526 93175509 БОЛТ, LWR INT MANIF D (LY9) 2003-2004 12
527 90501653 GASKET, UPR INT MANIF (2 GSKT PER PACKAGE) (*KIT1) D (LY9) 2003-2004 03
528 90501652 GASKET, LWR INT MANIF (*KIT1) D (LY9) 2003-2004 02
529 90412612 MANIFOLD, LWR INT D (LY9) 2003-2004 01
530 09118135 SEAL, UPR INT MANIF (CONTAINS 6 O-RINGS) (*KIT1) D (LY9) 2003-2004 01
531 24415413 PIPE, FUEL FEED D (LY9) 2003-2004 01
532 11093881 БОЛТ, FUEL FEED PIPE (M6X12) (TORX) (2.383) D (LY9, LA3) 2003-2004 01
533 90411881 RAIL, M/PORT F/INJN FUEL (INCLS 550-552) D (LY9) 2003-2004 01
535 11093782 БОЛТ, THROT BODY (TO INT MANIF) (E10, M6X40) (0.539) D (LY9) 2003-2004 04
536 09128412 BODY, THROT (COMPONENTS ARE NOT SERVICED) (INCLS SENSOR) (ACDelco #9128412) D (LY9) 2003-2004 01
537 90412566 SEAL, THROT BODY (O RING) D (LY9) 2003-2004 02
538 24407506 MANIFOLD, UPR INT (INCLS 560) D (LY9) 2003-2004 01
539 14018755 БОЛТ, INT UPR MANIF (M8X1.25X47 W/WASHER) (8.900) D (LY9) 2003-2004 04
541 24407531 ADAPTER, PCV VENT HOSE (INCLS 544, 570) D (LY9) 2003-2004 01
542 90467543 SEAL, PCV VENT HOSE (O RING) D (LY9) 2003-2004 01
543 11096061 БОЛТ, PCV VENT HOSE ADAP (M6X18, TORX T30) (M6X18, TORX T30) (1.745) D (LY9) 2003-2004 01
544 90500983 SEAL, PCV HOSE FTG (O RING) (ЧАСТЬ OF 541) D (LY9) 2003-2004 02
546 24461165 HOSE, PCV D (LY9) 2003-2004 01
548 ACTUATOR, INT MANIF TUNING VLV (ЧАСТЬ OF 502) 2003-2004
549 90466214 VALVE, INT AIR TUNING VLV VAC CONT SOL (3.670) (ACDelco #214-2108) D (LY9, LA3) 2003-2004 01
550 90448751 VALVE, FUEL PRESS SERV (ЧАСТЬ OF 533) D (LA3, LY9) 2003-2004 01
551 CAP, FUEL PRESS SERV VLV (ЧАСТЬ OF 533) 2003-2004
552 90354618 WASHER, F/INJN FUEL RL (ЧАСТЬ OF 533) D (LY9) 2003-2004 01
553 90570951 RETAINER, F/INJR VLV D (LY9) 2003-2004 06
554 90541911 SEAL, F/INJR (O RING) (ЧАСТЬ OF 555) D (LA3, LY9) 2003-2004 AR
555 24406653 INJECTOR, M/PORT FUEL (INCL 554) (ACDelco #214-1068) D (LY9) 2003-2004 06
556 11093881 БОЛТ, F/INJN FUEL RL (M6X12) (TORX) (2.383) D (LY9, LA3) 2003-2004 04
557 09158978 REGULATOR, FUEL PRESS (INCLS 558, 559) (ACDelco #217-1509) D 2003-2004 01
558 BRACKET, FUEL PRESS REG (ЧАСТЬ OF 557) 2003-2004
559 SEAL, FUEL PRESS REG CVR (O RING) (ЧАСТЬ OF 557) 2003-2004
560 90538310 FITTING, P/B BOOS VAC PIPE (ЧАСТЬ OF 538) D 2003-2004 01
561 SEAL, IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ (ЧАСТЬ OF 562) 2003-2004
562 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, IGN (СМ. ГРУППУ 02.000 ВЫСОКОВОЛЬТНЫЕ ПРОВОДА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 561) 2003-2004
563 11093782 БОЛТ, IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ (E10, M6X40) (0.539) D (LY9) 2003-2004 04
564 90448686 HOSE, INT MANIF TUNING VLV VAC CONT SOL VLV D (LY9) 2003-2004 01
565 24402859 SENSOR, HTD OXY (POSN 1) (ACDelco #213-1515) D (LY9) 2003-2004 02
566 90457458 HARNESS, F/INJR WRG D (LY9) 2003-2004 01
567 БОЛТ, INT MANIF TUNING VLV (ЧАСТЬ OF 502) 2003-2004
568 11093881 БОЛТ, INT MANIF TUNING VLV (M6X12) (TORX) (2.383) D (LY9, LA3) 2003-2004 01
569 90571480 FITTING, PCV HOSE D (LY9) 2003-2004 01
570 90467543 SEAL, PCV VENT HOSE (O RING) (ЧАСТЬ OF 541) D (LY9) 2003-2004 01
571 11096061 БОЛТ, PCV HOSE FTG (M6X18, TORX T30) (1.745) D (LY9) 2003-2004 02
572 24461166 HOSE, EVAP EMIS CNSTR C/VLV VAC (ЧАСТЬ OF 507) D (LA3, LY9) 2003-2004 01
573 01470030 CЛАМПА, WORM TYPE (11/16 TO 1 5/16) (EVAP EMIS CNSTR HOSE) (ACDelco #1470030) 2003-2004 01
574 VALVE, EVAP EMIS CNSTR CONT (ЧАСТЬ OF 507) 2003-2004
575 PIPE, EVAP EMIS CNSTR C/VLV (ЧАСТЬ OF 507) 2003-2004
900 24415412 PIPE, THROT BODY HTR INL D (LY9) 2003-2004 01
901 11093971 БОЛТ, THROT BODY HTR INL PIPE (M6X12.0) (9.2 OD) (TORX E10) (GME00255-F-SILVER) (3.602) D (LY9, LA3) 2003-2004 02
902 90467617 PLUG, INT MANIF CORE HOLE D (LY9) 2003-2004 04
K01 88984258 GASKET KIT, INT MANIF (INCLS 527, 528, 530) D (LY9) 2003-2004 01
