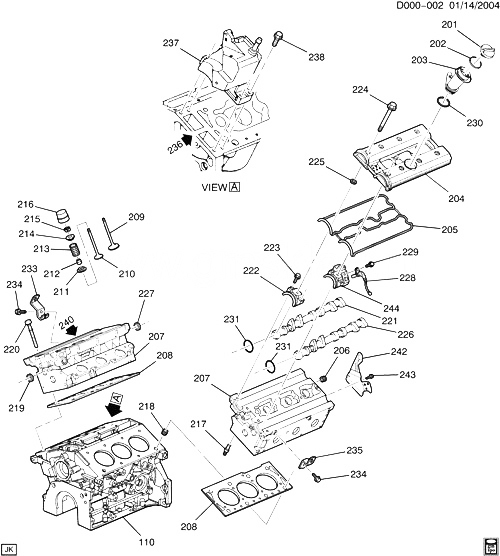

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 110 |
24402850 |
ДВИГАТЕЛЬ, 2.6 L (159 CID) (CODE H2) |
D (LY9, M82) |
2003-2004 |
01 |
| 201 |
24437483 |
CAP, OIL FIL (ACDelco #FC203) |
D (LY9) |
2003-2004 |
01 |
| 202 |
90448217 |
SEAL, OIL FIL CAP (O RING)
| D (LY9) |
2003-2004 |
01 |
|
| 203 |
90499462 |
TUBE, OIL FIL |
D (LY9) |
2003-2004 |
01 |
| 204 |
55351452 |
COVER, CM/SHF (W/SEAL) (W/O OIL FILL HOLE)
| D (LY9) |
2003-2004 |
01 |
|
| 204 |
55351453 |
COVER, CM/SHF (W/SEAL) (W/OIL FILL HOLE) |
D (LY9) |
2003-2004 |
01 |
| 205 |
55351456 |
GASKET, CM/SHF CVR (1 PC GASKET) (USED W/55351452-53 COVERS)
| D (LY9) |
2003-2004 |
02 |
|
| 206 |
11047651 |
PLUG, CYL HD OIL GAL (M10X1) (0.293) |
D (LY9) |
2003-2004 |
03 |
| 207 |
55351122 |
HEAD, CYL (W/VLV) (INCLS 209, 210, 222, 244) |
D (LY9) |
2003-2004 |
01 |
| 207 |
55351123 |
HEAD, CYL (W/VLV) (INCLS 209, 210, 222, 244) |
D (LY9) |
2003-2004 |
01 |
| 208 |
09231058 |
GASKET, CYL HD |
D (LY9) |
2003-2004 |
02 |
| 209 |
90412277 |
VALVE, INT (ЧАСТЬ OF 207) (STD) |
D (LY9) |
2003-2004 |
06 |
| 210 |
90410813 |
VALVE, EXH (ЧАСТЬ OF 207) (STD) (5.96MM) |
D (LY9) |
2003-2004 |
06 |
| 211 |
90410740 |
SEAT, VLV SPR |
D (LY9) |
2003-2004 |
24 |
| 212 |
90410741 |
SEAL, VLV STEM OIL
| D (LY9) |
2003-2004 |
24 |
|
| 213 |
90448050 |
ПРУЖИНА, VLV |
D (LY9) |
2003-2004 |
24 |
| 214 |
90354649 |
RETAINER, VLV SPR (0.309) |
D (LY9) |
2003-2004 |
24 |
| 215 |
90354648 |
KEY, VLV STEM
| D (LY9) |
2003-2004 |
48 |
|
| 216 |
90570967 |
LIFTER, VLV (ACDelco #HL133) |
D (LY9) |
2003-2004 |
24 |
| 217 |
90572700 |
ORIFICE, CYL HD OIL GAL AIR BL (M12X1.5, E10TORX, 35LG) (THRU БОЛТ) |
D (LY9) |
2003-2004 |
02 |
| 218 |
90353654 |
PIN, CYL HD LOC (0.413) |
D (LY9) |
2003-2004 |
06 |
| 219 |
11094191 |
PLUG, CYL HD CORE HOLE (25MM DIA) (O.S.) |
D (LY9) |
2003-2004 |
04 |
| 220 |
90466480 |
БОЛТ, CYL HD (M11X1.25X105) |
D (LY9) |
2003-2004 |
16 |
| 221 |
90512905 |
CAMSHAFT, INT |
D (LY9) |
2003-2004 |
02 |
| 222 |
|
CAP, CM/SHF BRG (ЧАСТЬ OF 207) |
|
2003-2004 |
|
| 223 |
11093782 |
БОЛТ, CM/SHF BRG CAP (E10, M6X40) |
D (LY9) |
2003-2004 |
16 |
| 224 |
11517669 |
БОЛТ-HFH, M6X1X18, 16 THD, 14.2 OD, 9.8, 7114M (CM/SHF HSG CVR) (ACDelco #11517669) |
|
2003-2004 |
16 |
| 225 |
90411826 |
SEAL, CM/SHF CVR БОЛТ (O RING)
| D (LY9) |
2003-2004 |
16 |
|
| 226 |
24456229 |
CAMSHAFT, EXH |
D (LY9) |
2003-2004 |
02 |
| 227 |
90502542 |
PLUG, CYL HD CORE HOLE (24MM DIA) |
D (LY9) |
2003-2004 |
03 |
| 228 |
09146032 |
SENSOR, CM/SHF POSN |
D (LY9) |
2003-2004 |
01 |
| 229 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (БОЛТ, KNOCK SEN) (ACDelco #11570082)
|
2003-2004 |
01 |
|
| 230 |
90448217 |
SEAL, OIL FIL CAP (O RING)
| D (LY9) |
2003-2004 |
01 |
|
| 231 |
90180529 |
SEAL, CM/SHF FRT OIL (0.529)
| D (LY9) |
2003-2004 |
04 |
|
| 233 |
|
BRACKET, ENG LIFT (RIGHT ЗАДНИЙ) |
|
2003-2004 |
|
| 234 |
11508476 |
БОЛТ, M8X1.25X25 9.8 (БОЛТ, ENG LIFT BRGT) |
|
2003-2004 |
02 |
| 235 |
|
BRACKET, ENG LIFT (LEFT FRONT) |
|
2003-2004 |
|
| 236 |
01052943 |
SEALANT, LOCTITE-518, 50ML TUBE (PCV OIL SEP) |
D |
2003-2004 |
AR |
| 237 |
90502186 |
SEPARATOR, PCV OIL (1.750) |
D (LY9) |
2003-2004 |
01 |
| 238 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (БОЛТ, PCV OIL SEP)
| D (LY9) |
2003-2004 |
01 |
|
| 240 |
|
SEALER, CM/SHF CVR |
|
2003-2004 |
|
| 242 |
|
BRACKET, ENG LIFT |
|
2003-2004 |
|
| 243 |
90529713 |
БОЛТ, ENG LIFT BRKT (M10X1.5X30, TORX)
| D (LY9) |
2003-2004 |
02 |
|
| 244 |
|
CAP, CM/SHF BRG (SPECIAL CAMSHAFT/CAP ШЛАНГИ FOR CM/SHF SENSOR) (ЧАСТЬ OF 207) |
|
2003-2004 |
|
| K01 |
88894399 |
GASKET KIT, CYL HD (INCLS 5, 8, 12) |
D (LY9) |
2003-2004 |
01 |
