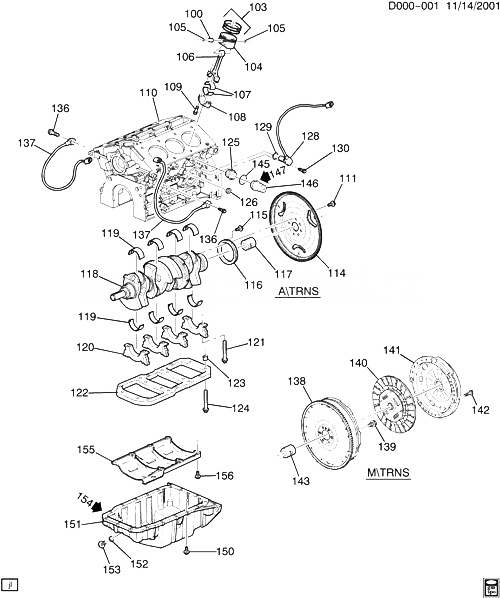

(D000-001) - 2003-2004 D ДВИГАТЕЛЬ В СБОРЕ-2.6L V6 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ И ВНУТРЕННИЕ ДЕТАЛИ(LY9/2.6M) CADILLAC - CTS 2003

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 PIN, PSTN (ЧАСТЬ OF 104) 2003-2004
103 88894291 RING KIT, PSTN (ЧАСТЬ OF 104) D (LY9) 2003-2004 06
104 24405409 PISTON, ENG (INCLS 100, 103) (FOR CYL BORE DIA 83.175 - 83.184MM) D (LY9) 2003-2004 06
104 24405410 PISTON, ENG (INCLS 100, 103) (FOR CYL BORE DIA 83.185 - 83.194MM) D (LY9) 2003-2004 06
104 24405411 PISTON, ENG (INCLS 100, 103) (FOR CYL BORE DIA 83.195 - 83.204MM) D (LY9) 2003-2004 06
104 24405412 PISTON, ENG (INCLS 100, 103) (FOR CYL BORE DIA 83.205 - 83.214MM) D (LY9) 2003-2004 06
104 24405413 PISTON, ENG (INCLS 100, 103) (FOR CYL BORE DIA 83.215 - 83.224MM) D (LY9) 2003-2004 06
105 RETAINER, PSTN PIN 2003-2004
106 90541624 ROD, CONN (INCLS 108) (W/CAP БОЛТS) (SET OF 6) D (LY9) 2003-2004 01
107 88894363 BEARING KIT, CONN ROD (STD) D (LY9) 2003-2004 06
107 90486272 BEARING KIT, CONN ROD (.25MM O.S.) D (LY9) 2003-2004 06
108 CAP, CONN ROD (ЧАСТЬ OF 106) 2003-2004
109 90467192 БОЛТ, CONN ROD D (LY9) 2003-2004 12
110 24402850 ДВИГАТЕЛЬ, 2.6 L (159 CID) (INCLS 120) (CODE H2) D (LY9, M82) 2003-2004 01
111 09126505 БОЛТ, A/TRNS FLEX PLT D (LY9, M82) 2003-2004 08
114 24410097 PLATE, A/TRNS FLEX D (LY9) 2003-2004 01
115 24447071 БОЛТ, CR/SHF POSN SEN RELUCTOR RING D (LY9, M35, M82) 2003-2003 04
116 90469427 RING, CR/SHF POSN SEN RELUCTOR D (LY9, M82, M35) 2003-2004 01
117 12591866 SEAL, CR/SHF RR OIL D (LY9) 2003-2004 01
118 90444055 CRANKSHAFT, D (LY9) 2003-2004 01
119 09196030 BEARING KIT, CR/SHF (.25MM U.S.) (JOURNAL #1) D (LY9) 2003-2004 01
119 09196119 BEARING KIT, CR/SHF (.25MM U.S.) (JOURNAL #4) D (LY9) 2003-2004 01
119 88894367 BEARING KIT, CR/SHF (BROWN) (STD) (JOURNAL #1) D (LY9) 2003-2004 01
119 88894368 BEARING KIT, CR/SHF (GREEN) (STD) (JOURNAL #1) D (LY9) 2003-2004 01
119 88894369 BEARING KIT, CR/SHF (BROWN) (STD) (JOURNALS #2 3) D (LY9) 2003-2003 01
119 88894371 BEARING KIT, CR/SHF (BROWN) (STD) (JOURNAL #4) D (LY9) 2003-2004 01
119 88894372 BEARING KIT, CR/SHF (GREEN) (STD) (JOURNAL #4) D (LY9) 2003-2004 01
119 93174326 BEARING KIT, CR/SHF (STD) (JOURNALS #2 #3) (UPR LWR) D (LY9) 2003-2004 01
119 93174327 BEARING KIT, CR/SHF (.25MM U.S.) (JOURNALS #2 #3) (UPR LWR) D (LY9) 2003-2004 01
120 CAP, CR/SHF BRG (ЧАСТЬ OF 110) 2003-2004
121 90412156 БОЛТ, CR/SHF BRG CAP (M11X112) D (LY9) 2003-2004 08
122 24427917 PLATE, CR/SHF BRG CAP TIE D (LY9) 2003-2004 01
123 90412157 SPACER, CR/SHF BRG CAP БОЛТ D (LY9) 2003-2004 04
124 90412158 БОЛТ, CR/SHF BRG CAP TIE PLT D (LY9) 2003-2004 08
125 90573408 PLUG, ENG COOL HTR HOLE (M28X1) (INCLS SEAL RING) D (LY9) 2003-2004 01
126 11056321 PLUG, M14X1.5NPTX10MM, STL, PHOS, 7MM DRIVE (PLUG, ENG BLK OIL GAL) 2003-2004 03
128 90494182 SENSOR, CR/SHF POSN (INCLS 129) (ACDelco #213-4276) D (LY9) 2003-2004 01
129 SEAL, CR/SHF POSN SEN (O RING) (ЧАСТЬ OF 128) 2003-2004
130 11093881 БОЛТ, CR/SHF POSN SEN (M6X12) (TORX) D (LY9, LA3) 2003-2004 01
136 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (БОЛТ, KNOCK SEN-ЧАСТЬ OF 137) (NOTEONE БОЛТ FOR EACH SIDE) (ACDelco #11570082) 2003-2004 02
137 90530434 SENSOR, KNOCK D (LY9) 2003-2004 02
138 12585769 FLYКОЛЕСО, ENG D (LA3, LY9, M35) 2003-2004 01
139 09126581 БОЛТ, FLYWHL D (LY9, M35) 2003-2004 08
140 12585770 PLATE, CLU DRVN D (LA3, LY9, M35) 2003-2004 01
141 12585771 PLATE, CLU PRESS D (M35) 2003-2004 01
142 90470712 БОЛТ, CLU PRESS PLT D (M35) 2003-2004 06
143 90105743 BEARING, CLU PILOT (ACDelco #90105743) D (M35) 2003-2004 01
145 24421798 SEAL, ENG COOL HTR (O RING) D 2003-2004 01
146 24417186 ПОДОГРЕВАТЕЛЬ, ENG COOL (NOTE (IF)DROP POLICY-BLOCK ПОДОГРЕВАТЕЛЬ БЛОК-DO NOT USE, SCRAP/DO NOT OVER TIGHTEN) D (LA3, LY9, KA3) 2003-2004 01
146 90573406 ПОДОГРЕВАТЕЛЬ, ENG COOL (FOR USE IN АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ APPLICATIONS ONLY) (NOTE (IF)DROP POLICY-BLOCK ПОДОГРЕВАТЕЛЬ БЛОК-DO NOT USE, SCRAP/DO NOT OVER TIGHTEN) D (LA3, LY9, K05) 2003-2004 01
147 12345616 OIL, ENG CR/CASE (SAE10W-30 SJ) (QUART) (OIL, ENG-APPLY A BEAD OF LUBRICANT) 2003-2004 AR
150 11095703 SCREW, PAN, M8X1.25X25, 21.25 THD, 18 OD, 8.8, GME 00252-B7, ADH GME 00151 (БОЛТ, МАСЛЯНЫЙ ПОДДОН) 2003-2004 13
151 24403408 PAN, OIL (INCLS DRAIN PLUG) D (LY9) 2003-2004 01
152 90528145 SEAL, МАСЛЯНЫЙ ПОДДОН DRN PLUG (O RING) (18 X 2) D (LA3, LY9) 2003-2004 01
153 90502556 PLUG, МАСЛЯНЫЙ ПОДДОН DRN (M14) D (LY9) 2003-2004 01
154 12378521 SEALANT, RTV (150G) (МАСЛЯНЫЙ ПОДДОН) 2003-2004 AR
155 24428044 BAFFLE, МАСЛЯНЫЙ ПОДДОН D (LY9) 2003-2004 01
156 52368558 БОЛТ, M6X1X12, 10 THD, 11.6 OD, HDR PT, 9.8, POR (МАСЛЯНЫЙ ПОДДОН BFL) D 2003-2004 06
