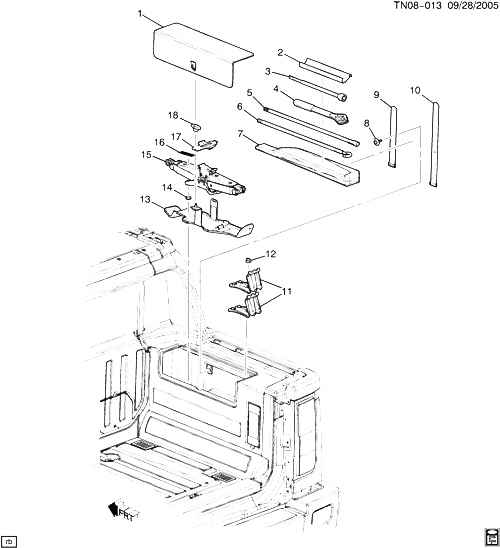

(TN08-013) - 2005-2009 N2(36) JACK TOOL STOWAGE HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88980243 LID, CARGO BOX STOW BOX (SEE GROUP 17.000 PICKUP BOX BEDLINER FOR DETAILED ILLUSTRATED VIEW) N2 (36) 2005-2009 01
002 15293578 LABEL, JK USAGE N2 2006-2009 01
003 15015985 SOCKET, WHL WRENCH EXTN N2 2006-2009 01
004 15854614 HANDLE, JK/WHL WRENCH N2 2006-2009 01
005 15101405 EXTENSION, JK HDL N2 (36) 2009-2009 02
006 25877781 HANDLE, JK N2 2006-2009 01
007 15912999 BAG, TOOL STOW N2 2006-2009 01
008 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (PUBX INR S/PNL) 2005-2009 02
009 STRAP, TOOL STOW 2005-2009
010 STRAP, TOOL STOW 2005-2009
011 15116183 BLOCK, WHL (COLLAPSIBLE TYPE) N2 2006-2009 02
013 15887737 BRACKET, JK ; TOOL STOW (FRT) N257 (36) 2006-2009 01
014 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (JK STOW BRKT) (8.915) (ACDelco #11514596) 2005-2009 02
015 13500015 JACK, (INCLS 16) N2 2007-2009 01
016 LABEL, JK WRNG (PART OF 15) 2008-2009
