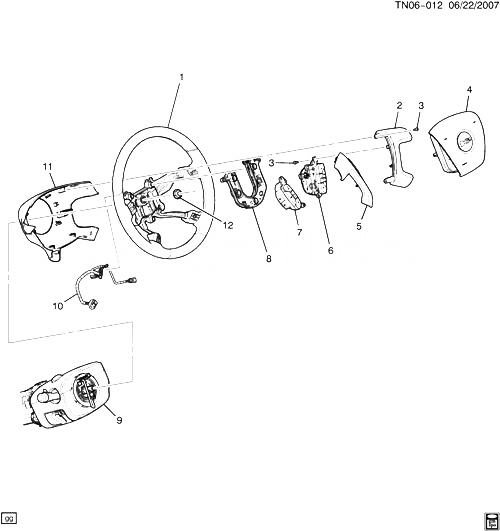

(TN06-012) - 2008-2009 N2 STEERING WHEEL СИГНАЛ PARTS HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25855588 КОЛЕСО, STRG (INCLS 2, 3, 5-8, 10, 11) (EBONY) N2 (19I, 24I) (EXC KA9, WS2) 2009-2009 01
001 25995626 КОЛЕСО, STRG (INCLS 2, 3, 5-8, 10, 11) (EBONY) N2 (KA9, 19I, 24I) (EXC WS2) 2009-2009 01
001 25995628 КОЛЕСО, STRG (INCLS 2, 3, 5-8, 10, 11) (EBONY) N2 (KA9, WS2, 24I) 2009-2009 01
002 25889488 COVER, STRG WHL LWR (PART OF 1) (BRONZE) N2 (EXC WS2) 2009-2009 01
002 25963559 COVER, STRG WHL LWR (PART OF 1) (BRONZE) N2 (WS2) 2009-2009 01
003 БОЛТ, STRG WHL SHRD (PART OF 1) 2008-2009
004 25953087 MODULE, STRG WHL INFL RST (EBONY) (16.712) N2 2008-2009 01
005 25889486 COVER, STRG WHL LWR (PART OF 1) (BRONZE) N2 (EXC WS2) 2009-2009 01
005 25963558 COVER, STRG WHL LWR (PART OF 1) (BRONZE) N2 (WS2) 2009-2009 01
006 25851951 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) N2 2009-2009 01
006 25851951 SWITCH, RDO CONT (PART OF 1) (EBONY) N2 2009-2009 01
007 25901034 SWITCH, CRCONT (PART OF 1) N2 2009-2009 01
008 25889495 CONTACT, STRG WHL СИГНАЛ (PART OF 1) N2 2008-2009 01
009 COLUMN, STRG (SEE GROUP 06.000 РУЛЕВАЯ КОЛОНКА ILLUSTRATION FOR DETAILED ILLUSTRATED VIEW)) 2008-2009
010 25889498 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) N2 (KA9) 2009-2009 01
011 SHROUD, STRG WHL (PART OF 1) 2008-2009
012 11609658 NUT, STRG WHL (M14X1.5, 10THK) (NON FLANGED) (6.518) N2 2008-2009 01
