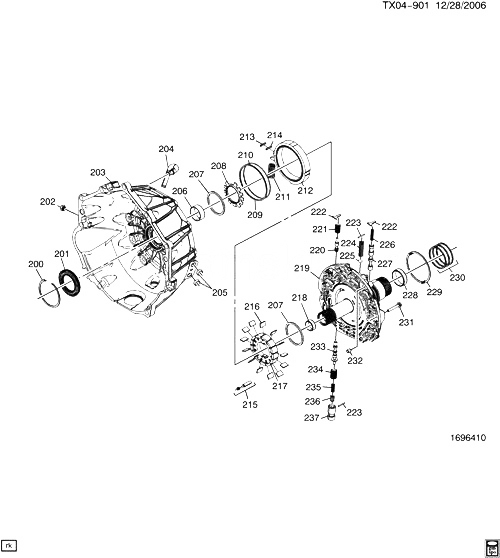

(TX04-901) - 2008-2009 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (MYC) (6L80) TORQUE CONVERTER HOUSING ГИДРОНАСОС HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
200 24218963 RING, T/CV FLUID SEAL RET N2 (MYC) 2008-2009 01
201 24237531 SEAL, T/CV FLUID (ACDelco #24237531) N2 (MYC) 2008-2009 01
202 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (LINE PRESS TEST HOLE) (ACDelco #444613) 2008-2009 01
203 24236120 HOUSING, T/CV (MCHG) (INCLS 206) (ACDelco #24236120) N2 (MYC) 2008-2009 01
204 24231684 PIPE, A/TRNS VENT N2 (MYC) 2008-2009 01
205 24237658 SEAL, TRANS FLUID CLR PIPE FTG (SEALS ONE PIPE) N2 (L92, MYC) 2008-2009 02
206 BUSHING, T/CV (PART OF 203) (*KIT1) 2008-2009
207 RING, A/TRNS ГИДРОНАСОС VANE (*KIT1) 2008-2009
208 GUIDE, A/TRNS ГИДРОНАСОС ROT (*KIT1) 2008-2009
209 RING, A/TRNS ГИДРОНАСОС SLIDE FLUID SEAL (*KIT1) 2008-2009
210 SEAL, A/TRNS O/PMP SLIDE (O RING) (*KIT1) 2008-2009
211 SPRING, A/TRNS ГИДРОНАСОС SLIDE OTR (*KIT1) 2008-2009
212 24222668 SLIDE, A/TRNS ГИДРОНАСОС (17.948MM-17.961MM) (ACDelco #24222668) N2 (MYC) 2008-2009 01
212 24224131 SLIDE, A/TRNS ГИДРОНАСОС (17.961MM-17.974MM) (ACDelco #24224131) N2 (MYC) 2008-2009 01
212 24224132 SLIDE, A/TRNS ГИДРОНАСОС (17.974MM-17.987MM) (ACDelco #24224132) N2 (MYC) 2008-2009 01
213 SEAL, A/TRNS ГИДРОНАСОС SLIDE (*KIT1) 2008-2009
214 SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (*KIT1) 2008-2009
215 PIN, A/TRNS ГИДРОНАСОС SLIDE PIV (*KIT1) 2008-2009
216 VANE, A/TRNS ГИДРОНАСОС (*KIT1) 2008-2009
217 ROTOR, A/TRNS ГИДРОНАСОС (*KIT1) 2008-2009
218 BUSHING, TURB SHF FRT (*KIT2) 2008-2009
219 COVER, A/TRNS ГИДРОНАСОС (*KIT2) 2008-2009
220 VALVE, CONV FEED LIM (*KIT2) 2008-2009
221 SPRING, CONV FEED LIM VLV (*KIT2) 2008-2009
222 RETAINER, CONV FEED LIM VLV SPR (*KIT2) 2008-2009
223 PIN, PRESS RLF BALL VLV SPR (*KIT2) 2008-2009
224 SPRING, PRESS RLF BALL VLV (*KIT2) 2008-2009
225 00147500 VALVE, PRESS RLF BALL (*KIT2) N2 (MYC) 2008-2009 01
226 SPRING, TCC C/VLV (*KIT2) 2008-2009
227 VALVE, TCC CONT (*KIT2) 2008-2009
228 BUSHING, TURB SHF RR (*KIT2) 2008-2009
229 24224692 WASHER, 1-2-3-4 ; 3-5 REV CLU HSG THR (*KIT2) N2 (MYC) 2008-2009 01
230 24238248 RING, 1-2-3-4 ; 3-5 REV CLU FLUID SEAL (*KIT2) (TRANS BUILT ON 08-17-08 ; PRIOR) (FOR 2ND DES SEE 24248559) N2 (MYC) (1ST DES) 2009-2009 03
230 24248559 RING KIT, 1-2-3-4 ; 3-5 REV CLU FLUID SEAL (1-SET 2ND DES SEALS (INCL QUAD LOBE)) (*KIT2) (ACDelco #24248559) (TRANS BUILT ON 10-23-08 ; AFTER) (FOR 1ST DES SEE 24248581) N2 (MYC) (2ND DES) 2009-2009 01
230 24248581 RING KIT, 1-2-3-4 ; 3-5 REV CLU FLUID SEAL (*KIT2) (ACDelco #24248581) (TRANS BUILT ON 10-22-08 ; PRIOR) (FOR 2ND DES SEE 24248559) N2 (MYC) (1ST DES) 2009-2009 03
231 24227061 БОЛТ, A/TRNS ГИДРОНАСОС CVR (ACDelco #24227061) N2 (MYC) 2008-2009 13
232 90351709 PIN, A/TRNS ГИДРОНАСОС LOC (8MM HOLLOW SPLIT PIN) (*KIT2) (1.639) N2 (MYC) 2008-2009 01
233 VALVE, PRESS REG (*KIT2) 2008-2009
234 SPRING, PRESS REG VLV OTR (*KIT2) 2008-2009
235 SPRING, PRESS REG VLV INR (*KIT2) 2008-2009
236 VALVE, ISOLATOR (*KIT2) 2008-2009
237 SLEEVE, ISOLATOR VLV (*KIT2) 2008-2009
K01 24248569 ROTOR PKG, A/TRNS ГИДРОНАСОС (INCLS 206-211, 213-217) (17.948MM-17.961MM) (ACDelco #24248569) N2 (MYC) 2008-2009 01
K02 24248573 COVER KIT, A/TRNS ГИДРОНАСОС (INCLS 218-230, 232-237) (ACDelco #24248573) N2 (MYC) 2009-2009 01
