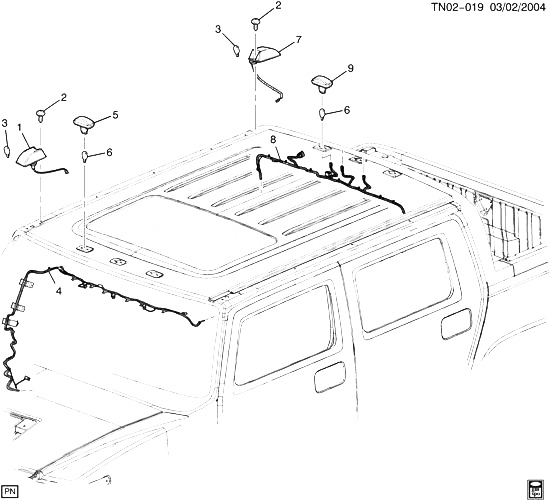

(TN02-019) - 2005-2009 N2(36) LAMPS/ROOF CLEARANCE HUMMER - H2 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15060523 LAMP, RF CLER OTR (INCLS 3) (FRONT OUTER) N2 2005-2009 01
001 15060524 LAMP, RF CLER OTR (INCLS 3) (FRONT OUTER) N2 2005-2009 01
002 11515894 SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (RF CLER LP) 2005-2009 04
003 09421330 BULB, TRADE#194, 12V, 2CP (PART OF 1, 7) (ACDelco #L194) 2005-2009 04
004 25907968 HARNESS, RF MKR LP WRG N2 2008-2009 01
005 25809312 LAMP, RF CLER (INCLS 6) (FRT CTR POSITION 3 LAMPS) N257 2008-2009 03
006 09425542 BULB, LAMP #192 (PART OF 5, 9) (ACDelco #L168) 2005-2009 06
007 15060525 LAMP, RF CLER RR (INCLS 3) (REAR OTR) N2 2005-2009 01
007 15060526 LAMP, RF CLER RR (INCLS 3) (REAR OTR) N2 2005-2009 01
008 HARNESS, BODY WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) 2005-2009
009 25809313 LAMP, RF CLER CTR (INCLS 6) (RR CTR POSITION 3 LAMPS) N257 2008-2009 03
