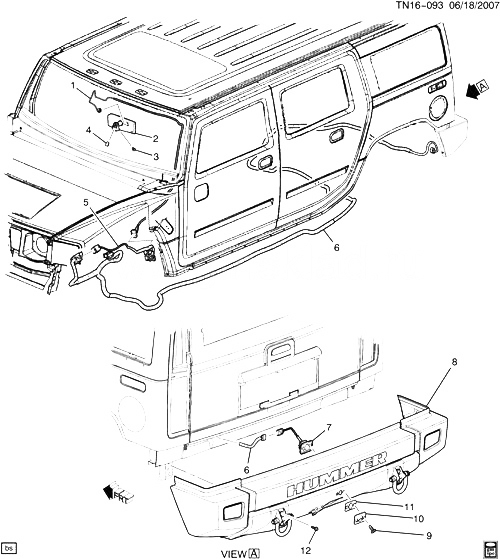

(TN16-093) - 2008-2009 N2 КАМЕРА ЗАДНЕГО ОБЗОРА (UVC) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, RF ACSRY WRG (SEE GROUP 02.000 ПРОВОДКА-АКСЕССУАРЫ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
002 15269044 MIRROR, I/S RR VIEW (INCLS 3) (LT SEN, COMPASS, O/S TEMP DISPLAY) N2 (UVB, UVC) 2008-2008 01
002 20824386 MIRROR, I/S RR VIEW (INCLS 3) N2 (US9, UVA, UVC) 2008-2008 01
003 БОЛТ, I/S RR VIEW MIR (PART OF 2) 2008-2009
004 15954649 SUPPORT, W/S (PART OF WINDSHIELD, - 16.005) (16.069) N2 2008-2009 01
005 25963828 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (36) (CHW) 2008-2008 01
005 25963828 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (36) (EXC CHW) 2008-2008 01
005 25963829 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (06) (CHW) 2008-2008 01
005 25963829 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (06) (EXC CHW) 2008-2008 01
006 HARNESS, CHAS WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) 2008-2009
007 15907724 CAMERA, RR VIEW (INCLS BRACKET AND SEAL) N2 (UVC) 2008-2009 01
008 19178227 ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP (BUMPER W/HOLES FOR RR VISION CAMERA) (W/RIVNUTS) (SEE GROUP 07.000 БАМПЕР ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) N2 (06) 2008-2009 01
009 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR VIEW CAMERA) 2008-2009 02
010 25824442 BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (INCLS 11) (LABELED 25824442 OR 15280055) N2 (UVC) 2008-2009 01
011 SEAL, RR VIEW CAMERA IMAGE DISPLAY MDL) (PART OF 10 2008-2009
012 11561764 BOLT - HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR BPR IMP BAR) 2008-2009 04
