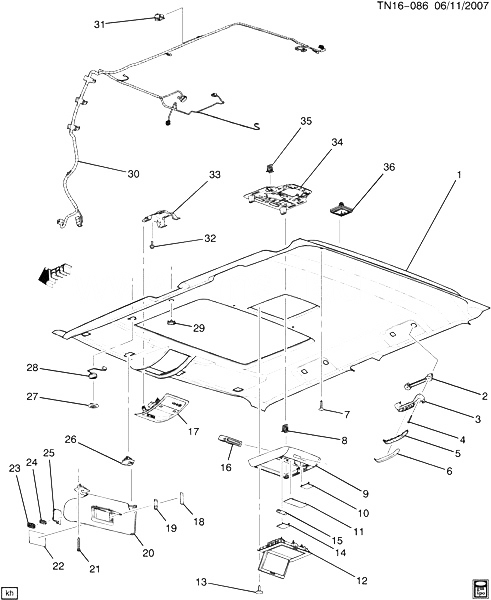

(TN16-086) - 2008 N2(36) ОТДЕЛКА-ИНТЕРЬЕР-ROOF HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19206659 PANEL, HDLNG TR (INCLS 8-11, 14-16, 26-31, 34, 35) (GRAY) N257 (36) (CF5, CJ2) (EXC U42) 2008-2008 01
001 19206660 PANEL, HDLNG TR (INCLS 8-11, 14-16, 26-31, 34, 35) (GRAY) (DECONTENTED SERVICE HEADLINER) N257 (36) (CF5, CJ2, U42) 2008-2008 01
001 25832416 PANEL, HDLNG TR (INCLS 8-11, 14-16, 26-31, 34, 35) (GRAY) (FULL CONTENTED HEADLINER) N257 (36) (CF5, CJ2, U42) 2008-2008 01
002 25825867 SPACER, ASST HDL N2 2008-2008 03
003 13501261 HANDLE, ASST (INCLS 4-6) (EBONY) (SRVC CVR - PILLAR) N2 2008-2008 01
003 13501262 HANDLE, ASST (INCLS 4-6) (GRAY) (SRVC CVR - HEADLINER) N2 2008-2008 01
003 15797110 HANDLE, ASST (INCLS 4-6) (GRAY) (FRONT) N2 2008-2008 01
003 15797112 HANDLE, ASST (INCLS 4-6) (GRAY) (REAR) N2 2008-2008 01
003 15797114 HANDLE, ASST (INCLS 4-6) (GRAY) N2 2008-2008 01
003 25858022 HANDLE, ASST (INCLS 4-6) (EBONY) N2 2008-2008 02
004 11569903 SCREW-PAN TORX HD, M6X1X55, 49.55 THD, 11.25 OD, GM6202M STL, GMW3359, TAP (PART OF 3) 2008-2008 02
005 REINFORCEMENT, ASST HDL (PART OF 3) 2008-2008
006 COVER, ASST HDL BOLT (PART OF 3) 2008-2008
007 15126552 RETAINER, HDLNG T/PNL (PUSH IN) (GRAY) (26.3MM ; DIA 6.85) N257 (06-36) (CF5) (EXC U42) 2008-2008 02
008 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1, 9) 2008-2008 04
009 25817052 CONSOLE, RF (PART OF 1) (INCLS 8, 10, 11, 14-16) (GRAY) (2ND ROW DVD FACE PLT) N2 2008-2008 01
009 25853058 CONSOLE, RF (PART OF 1) (INCLS 8, 10, 11, 14-16) (GRAY) (DVD CONSOLE) N2 (CF5) 2008-2008 01
009 25857306 CONSOLE, RF (PART OF 1) (INCLS 8, 10, 11, 14-16) (GRAY) N2 (UE1) (EXC CF5) 2008-2008 01
009 25857310 CONSOLE, RF (PART OF 1) (INCLS 8, 10, 11, 14-16) (GRAY) N2 (EXC CF5, UE1) 2008-2008 01
009 25857312 CONSOLE, RF (PART OF 1) (INCLS 8, 10, 11, 14-16) (GRAY) N2 (CF5) (EXC UE1) 2008-2008 01
009 25857314 CONSOLE, RF (PART OF 1) (INCLS 8, 10, 11, 14-16) (GRAY) N2 (CF5, UE1) 2008-2008 01
010 15853941 LENS, VIDEO PLYR R/CON SEN (PART OF 1, 9) (LH DVD PUSH-PUSH) N2 (06-36) (CF5, CJ2, U42) 2008-2008 01
011 15853943 LENS, VIDEO PLYR R/CON SEN (CTR DVD FIXED LENS) (PART OF 1, 9) (CTR DVD FIXED FREEDOM) N2 (06-36) (CF5, CJ2, U42) 2008-2008 01
012 15948136 DISPLAY, VIDEO (GRAY) (LABELED 15948136) (ACDelco #15948136) N2 (U42, 19I, 24I) 2008-2008 01
012 20792277 DISPLAY, VIDEO (GRAY) (LABELED 20792277) N2 (U42, 19I, 24I) 2008-2008 01
013 15126552 RETAINER, HDLNG T/PNL (PUSH IN) (GRAY) (26.3MM ; DIA 6.85) N257 (06-36) (CF5) (EXC U42) 2008-2008 02
014 15853942 LENS, VIDEO PLYR R/CON SEN (PART OF 1, 9) (RH DVD PUSH-PUSH) N2 (06-36) (CF5, CJ2, U42) 2008-2008 01
015 09431809 BULB, 6CP TRADE #212-2 (PART OF 1, 9) (ACDelco #L212-2) 2008-2008 02
016 15095547 MODULE, AUDIO SYS XCVR (PART OF 1, 9) (ACDelco #15095547) (LABELLED W/OEM PN 15095547.) N2 (06-36) (CF5, CJ2, U42) 2008-2008 01
016 25835387 MODULE, AUDIO SYS XCVR (PART OF 1, 9) (ACDelco #25835387) (LABELLED W/OEM PN 25835387.) N2 (06-36) (CF5, CJ2, U42) 2008-2008 01
017 25817052 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) (2ND ROW DVD FACE PLT) N2 2008-2008 01
017 25853058 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) (DVD CONSOLE) N2 (CF5) 2008-2008 01
017 25857306 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (UE1) (EXC CF5) 2008-2008 01
017 25857308 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) N2 (CF5, UE1, Z49) (EXPORT) 2008-2008 01
017 25857310 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (EXC CF5, UE1) 2008-2008 01
017 25857312 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (CF5) (EXC UE1) 2008-2008 01
017 25857314 CONSOLE, RF (SEE GROUP 16.000 КОНСОЛЬ-КРЫША FOR DETAILED ILLUSTRATED VIEW) (GRAY) N2 (CF5, UE1) 2008-2008 01
018 LENS, S/S ILLUM MIR LP (PART OF 20) 2008-2008
019 BULB, S/S ILLUM MIR LP (PART OF 20) 2008-2008
020 25925242 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 18, 19, 21, 22) (GRAY) N2 2008-2008 01
020 25925244 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 18, 19, 21-25) (GRAY) N2 (UG1) 2008-2008 01
020 25925246 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 18, 19, 21, 22) (GRAY) N2 (EXC UG1) 2008-2008 01
021 11561014 SCREW-PAN W/FLAT WASH, M4.2X1.41X35, 28 THD, 8 OD, 6010M STL, GMW4205 (PART OF 20) 2008-2008 03
022 15837652 LABEL, INFL RST SYS WRNG (PART OF 20) (ENGLISH/ARABIC) N2 (VBX) (EXPORT) 2008-2008 02
023 BEZEL, R/CON M/FUNC XMTR (PART OF 20) 2008-2008
024 PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 20) 2008-2008
025 TRANSMITTER, M/FUNC R/CON (PART OF 20) 2008-2008
026 15877252 RETAINER, S/S (PART OF 1) (GRAY) N2 (50I) 2008-2008 01
026 15877253 RETAINER, S/S (PART OF 1) (GRAY) N2 (50I) 2008-2008 01
027 22666403 BEZEL, MOBILE TEL MIC (PART OF 1) (GRAY) N257 2008-2008 01
028 15264477 MICROPHONE, MOBILE TEL (PART OF 1) (GRAY) N2 2008-2008 01
029 15075507 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 1) (GRAY) N2 2008-2008 01
030 HARNESS, RF ACSRY WRG (PART OF 1) 2008-2008
031 25903301 ASPIRATOR, I/S AIR TEMP SEN (PART OF 1) (ACDelco #15-51256) N2 2008-2008 01
032 11561035 BOLT - HVY HEX FLG HD, M6X1.0X16.0, GM1500M (9.8) STL, GMW4205 (RF CNSL BRKT) 2008-2008 02
033 25948860 BRACKET, RF CNSL N2 2008-2008 01
034 15287715 RETAINER, RF RR CNSL (PART OF 1) (INCLS 35) (DVD BCKPLT - 2ND ROW) (10.225) N2 2008-2008 01
035 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 1, 34) 2008-2008 02
036 15763887 RETAINER, HDLNG FRT T/PNL (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) N257 (36) (CF5) 2008-2008 02
