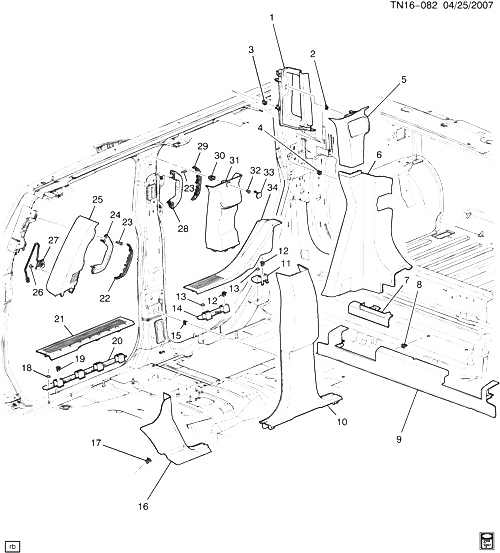

(TN16-082) - 2008-2009 N2(36) ОТДЕЛКА-ИНТЕРЬЕР-BODY SIDE HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10358712 MOLDING, BODY L/PLR GARN (INCLS 3) (EBONY) N2 (36) 2008-2009 01
001 10392654 MOLDING, BODY L/PLR GARN (INCLS 3) (EBONY) N2 (36) 2008-2009 01
001 25867330 MOLDING, BODY L/PLR GARN (INCLS 3) (EBONY) (UPR) N2 (36) 2008-2009 01
001 25867332 MOLDING, BODY L/PLR GARN (INCLS 3) (EBONY) (UPR) N2 (36) 2008-2009 01
002 12338108 RETAINER, BODY L/PLR G/MLDG (TYPE U SPR CLIP) (PART OF 5) (9.665) (ACDelco #12338108) N2 (36) 2008-2009 02
003 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 1) 2008-2009 08
004 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 6) 2008-2009 17
005 10358712 MOLDING, BODY L/PLR GARN (INCLS 2) (EBONY) N2 (36) 2008-2009 01
005 10392654 MOLDING, BODY L/PLR GARN (INCLS 2) (EBONY) N2 (36) 2008-2009 01
005 25867330 MOLDING, BODY L/PLR GARN (INCLS 2) (EBONY) (UPR) N2 (36) 2008-2009 01
005 25867332 MOLDING, BODY L/PLR GARN (INCLS 2) (EBONY) (UPR) N2 (36) 2008-2009 01
006 15778097 MOLDING, BODY L/PLR GARN LWR (INCLS 4) (EBONY) (LWR) N2 (36) 2008-2009 01
006 15778099 MOLDING, BODY L/PLR GARN LWR (INCLS 4) (EBONY) (LWR) N2 (36) 2008-2009 01
007 10358747 COVER, REMOVABLE M/GATE HGE FIN (EBONY) N2 (36) 2008-2009 01
007 10358749 COVER, REMOVABLE M/GATE HGE FIN (EBONY) N2 (36) 2008-2009 01
008 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 9) 2008-2009 05
009 10392681 MOLDING, E/GATE CTR (INCLS 8) (EBONY) N2 (36) 2008-2009 01
010 25789767 MOLDING, C/PLR LWR GARN (INCLS 15) (EBONY) (REMOVE FWD LWR INBOARD STANDOFF TO ELIMINATE INTERFERENCE) N2 2008-2009 01
010 25886640 MOLDING, C/PLR LWR GARN (INCLS 15) (EBONY) N2 2008-2009 01
011 15076278 BRACKET, RR S/D SILL TR PLT (REAR) N2 2008-2009 02
012 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 34) 2008-2009 06
013 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (RR S/D SILL TR PLT BRKT) (8.921) 2008-2009 06
014 15076277 BRACKET, RR S/D SILL TR PLT (FRONT) N2 2008-2009 02
015 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 10) 2008-2009 06
016 10392646 PANEL, BODY H/PLR TR (INCLS 17) (EBONY) N2 2008-2009 01
016 15241327 PANEL, BODY H/PLR TR (INCLS 17) (EBONY) N2 2008-2009 01
017 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 16) 2008-2009 04
018 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (FRT S/D SILL TR PLT BRKT) (8.921) 2008-2009 08
019 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 21) 2008-2009 08
020 15184869 BRACKET, FRT S/D SILL TR PLT N2 2008-2009 02
021 10392640 PLATE, FRT S/D SILL TR (INCLS 19) (EBONY) N2 2008-2009 01
021 10392642 PLATE, FRT S/D SILL TR (INCLS 19) (EBONY) N2 2008-2009 01
022 COVER, ASST HDL BOLT (PART OF 24) 2008-2009
023 11569613 БОЛТ, HFH, M6X1X25, 19 THD, 12 OD, GM6202M STL, GMW3359, TAPTITE (PART OF 24, 28) 2008-2009 08
024 15797110 HANDLE, ASST (INCLS 22, 23) (GRAY) (FRONT) N2 2008-2009 01
025 25897897 MOLDING, W/S SI GARN (INCLS 26, 27) (EBONY) N2 2008-2009 01
025 25897899 MOLDING, W/S SI GARN (INCLS 26, 27) (EBONY) N2 2008-2009 01
026 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 25) 2008-2009 04
027 15916357 ДИНАМИК, RDO W/S SI G/MLDG (PART OF 25) (ACDelco #15916357) N257 2008-2009 02
028 25858022 HANDLE, C/PLR ASST (INCLS 23, 29) (EBONY) (16.346) N2 2008-2009 02
029 COVER, ASST HDL BOLT (PART OF 28) 2008-2009
030 11609651 RETAINER, C/PLR UPR G/MLDG (M21.8X15.0X20.5) (14.731) N2 2008-2009 02
031 25858002 MOLDING, C/PLR UPR GARN (EBONY) (INCLS PLUG) N2 2008-2009 01
031 25858004 MOLDING, C/PLR UPR GARN (EBONY) (INCLS PLUG) N2 2008-2009 01
032 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (C/PLR UPR G/MLDG) 2008-2009 02
033 25858039 PLUG, C/PLR UPR G/MLDG BOLT HOLE FIN N2 2008-2009 01
033 25858041 PLUG, C/PLR UPR G/MLDG BOLT HOLE FIN N2 2008-2009 01
034 10392636 PLATE, RR S/D SILL TR (INCLS 12) (EBONY) N2 2008-2009 01
034 10392638 PLATE, RR S/D SILL TR (INCLS 12) (EBONY) N2 2008-2009 01
