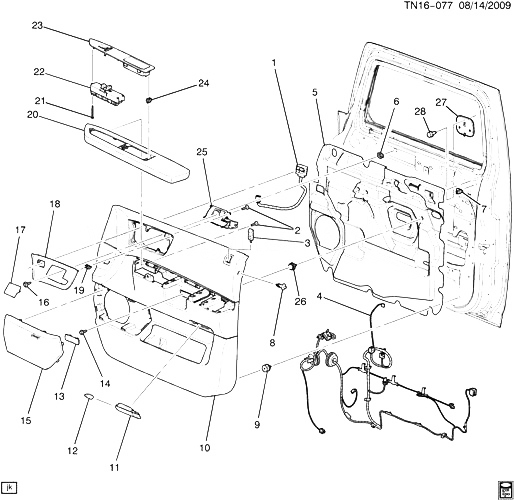

(TN16-077) - 2008-2009 N2 ПЕРЕДНЯЯ БОКОВАЯ ДВЕРЬ-PASSENGER HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10386130 SWITCH, P/SEAT HTR N2 2008-2008 01
002 11569994 БОЛТ, FRT S/D I/S HDL (PART OF 10) (16.115) N2 2008-2009 08
003 15844616 KNOB, FRT S/D LKG ROD (EBONY) N2 (18I, 19I, 24I) 2008-2009 02
004 25888227 HARNESS, FRT S/D DR WRG N2 2008-2009 01
005 25848850 DEFLECTOR, FRT S/D WAT N257 2008-2009 01
006 11588574 NUT, PUSH IN, M6X1, SAE1050, GM7114M (FRT S/D I/S HDL) 2008-2009 01
007 22675533 BRACKET, FRT S/D T/PNL (14.683) N257 (06-36) 2008-2009 02
008 22690838 RETAINER, FRT S/D T/PNL (PUSH IN) (EBONY) (14.683) N257 (06-36) 2008-2009 02
009 11589089 RETAINER, FRT S/D T/PNL (PART OF 10) (GRAY) (15.7 LENGTH) (19.5 HEAD) (FITS 9.1 HOLE) (14.683) N257 2008-2009 16
010 20823437 PANEL, FRT S/D TR (INCLS 2, 9, 11, 12, 15, 16, 18-20, 25, 26) (BRICK) N257 (06-36) (24I) 2008-2008 01
010 25954163 PANEL, FRT S/D TR (INCLS 2, 9, 11, 12, 15, 16, 18-20, 25, 26) (EBONY) N257 (06-36) (19I) 2008-2008 01
011 15021518 LAMP, FRT S/D CTSY (PART OF 10) (INCLS 12) (RED AND CLEAR) (INCLUDES SOCKET AND BULB) N2 2008-2009 01
012 09425542 BULB, LAMP #192 (PART OF 10, 11) (ACDelco #L168) 2008-2009 01
013 25853514 COVER, FRT S/D PULL HDL (EBONY) (16.166) N2 (19I) 2008-2009 02
013 25853515 COVER, FRT S/D PULL HDL (BRICK) (16.166) N2 (24I) 2008-2009 02
014 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT S/D T/PNL) 2008-2009 02
015 15924041 COVER, RDO FRT S/D SPKR OPG (PART OF 10) (EBONY) N2 (19I, 24I) 2008-2008 01
016 11569994 БОЛТ, FRT S/D I/S HDL BZL (PART OF 10) (16.115) N2 2008-2009 02
017 25947306 COVER, FRT S/D I/S HDL BZL FIN (ALLY) N2 2008-2009 01
018 25879763 BEZEL, FRT S/D I/S HDL (PART OF 10) (INCLS 19) (SEPIA) N2 (19I, 24I) 2008-2008 01
019 16754704 RETAINER, FRT S/D I/S HDL BZL (PART OF 10, 18) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) N257 2008-2009 04
020 15794326 ARMREST, FRT S/D (PART OF 10) (EBONY) N2 (19I) 2008-2008 01
020 15794328 ARMREST, FRT S/D (PART OF 10) (BRICK) N2 (24I) 2008-2009 01
021 11561274 БОЛТ, FRT S/D WDO SW (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (*KIT1) N2 2008-2009 03
022 10377669 SWITCH, DR LK ; SI WDO (*KIT1) (USE ON VEH BUILT 5/26/08 ; PRIOR) (FOR 2ND DES SEE 25976512) N2 (1ST DES) 2008-2008 01
022 25976512 SWITCH, DR LK ; SI WDO (*KIT1) (USE ON VEH BUILT 5/27/08 ; AFTER) (FOR 1ST DES SEE 10377669) N2 (2ND DES) 2008-2008 01
023 25923211 PLATE, FRT S/D WDO SW TR (*KIT1) (USE ON VEHICLES BUILT MAY 26, 2008 ; PRIOR) (2ND DES 25943336) N2 (19I) (1ST DES) 2008-2008 01
023 25923212 PLATE, FRT S/D WDO SW TR (*KIT1) (USE ON VEHICLES BUILT MAY 26, 2008 ; PRIOR) (2ND DES 25943337) N2 (24I) (1ST DES) 2008-2008 01
023 25943336 PLATE, FRT S/D WDO SW TR (*KIT1) (USE ON VEHICLES BUILT MAY 27, 2008 ; AFTER) (1ST DES 25923211) N2 (19I) (2ND DES) 2008-2008 01
023 25943337 PLATE, FRT S/D WDO SW TR (*KIT1) (USE ON VEHICLES BUILT MAY 27, 2008 ; AFTER) (1ST DES 25923212) N2 (24I) (2ND DES) 2008-2008 01
024 16754704 RETAINER, FRT S/D WDO SW TR PLT (10 X 10) (APLQ TO SI PNL) (STEEL) (*KIT1) (10.056) N2 2008-2009 03
025 25879765 HANDLE, FRT S/D I/S (PART OF 10) (BRIGHT CHROME) N2 (19I, 24I) 2008-2008 01
026 11562256 RETAINER, FRT S/D T/PNL (PART OF 10) (19.5MM X 28.3MM X 1.3MM) N257 (06-36) 2008-2009 04
027 25845887 BRACKET, FRT S/D A/RST N2 2008-2009 02
028 20664092 RETAINER, FRT S/D A/RST BRKT BOLT (PUSH ON) (BLACK) (6.3MM DIA X 23MM) (1.276) N2 2008-2009 02
K01 25923194 BEZEL, FRT S/D WDO SW (INCLS 21-24) (EBONY) N2 (19I) 2008-2008 01
K01 25923195 BEZEL, FRT S/D WDO SW (INCLS 21-24) (BRICK) N2 (24I) 2008-2009 01
