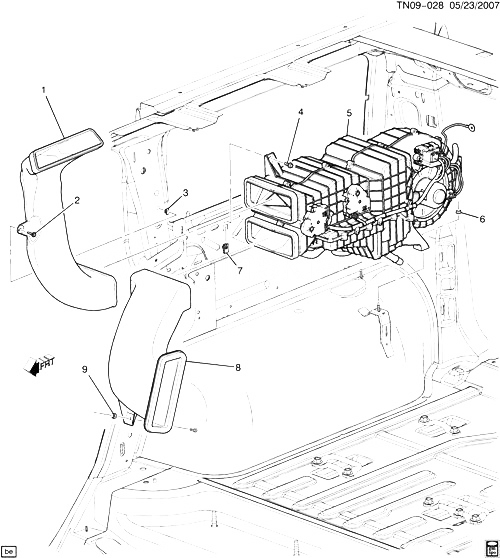

(TN09-028) - 2008-2009 N2(06) СИСТЕМА ДИСТРИБЬЮЦИИ ВОЗДУХА/REAR DUCTS HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15147169 DUCT, AUX A/C AIR OTLT N2 (06) (C69) 2008-2009 01
002 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AUX A/C AIR OTLT DUCT) (9.665) 2008-2009 01
003 11518531 ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (AUX A/C AIR OTLT DUCT) (10.512) 2008-2009 01
004 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (AUX HTR ; A/C EVPR ; BLO MDL) 2008-2009 02
005 MODULE, AUX HTR ; A/C EVPR ; BLO (SEE GROUP 09.000 AUXILIARY A/C EVAPORATOR ; ВЕНТИЛЯТОР ; HEATER ASM FOR DETAILED ILLUSRTATED VIEW) 2008-2009
006 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (AUX HTR ; A/C EVPR ; BLO MDL) 2008-2009 02
007 11570097 ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (AUX HTR ; A/C EVPR ; BLO MDL) 2008-2009 02
008 15147174 DUCT, AUX HTR AIR OTLT N2 (06) (C36) 2008-2009 01
009 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (AUX HTR AIR OTLT DUCT) 2008-2009 01
