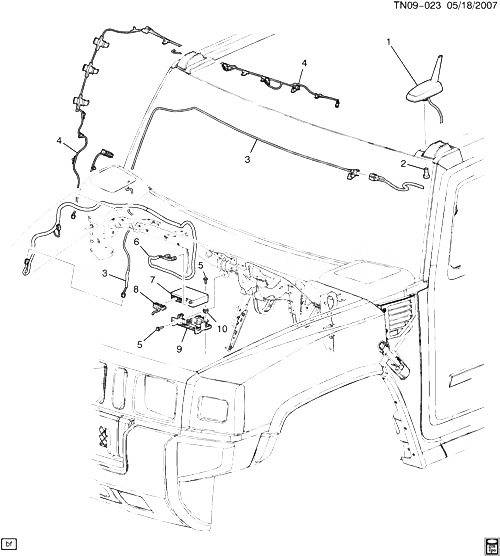

(TN09-023) - 2008 N2 COMMUNICATION SYSTEM ONSTAR HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25775191 BASE, DIGITAL RDO ; M/TEL ; VEH LOC (INCLS 2) N2 2008-2008 01
002 БОЛТ, RDO ANT (PART OF 1) 2008-2008
003 19207475 CABLE, RDO ; MOBILE TEL ; NAVIGATION ANT (PART OF 4) N2 (UE1, U2K) 2008-2008 01
004 25907968 HARNESS, RF MKR LP WRG (INCLS 3) (SEE GROUP 02.000 LAMPS/ROOF CLEARANCE FOR DETAILED ILLUSTRATED VIEW) N2 2008-2008 01
005 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (COMN INTERFACE MDL BRKT) (9.665) 2008-2008 03
006 19207475 CABLE, RDO ; MOBILE TEL ; NAVIGATION ANT (PART OF 8) N2 (UE1, U2K) 2008-2008 01
007 25907274 MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #25907274) (LABELED W/25907274.) N2 (UE1) 2008-2008 01
008 25829100 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UQS, UVA, U42) (EXC UE1, UVC, U2K) 2008-2008 01
008 25829100 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UQS, UVB, U42) (EXC UE1, UVC, U2K) 2008-2008 01
008 25829102 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UE1, UQS, UVA, U2K, U42) (EXC UVC) 2008-2008 01
008 25829102 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UE1, UQS, UVB, U2K, U42) (EXC UVC) 2008-2008 01
008 25829114 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UE1, UQA, US9, U2K) (EXC UVC, U42) 2008-2008 01
008 25829114 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UE1, UQA, US9, UVC, U2K) (EXC U42) 2008-2008 01
008 25829115 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UQA, US9) (EXC UE1, UVC, U2K, U42) 2008-2008 01
008 25829115 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UQA, US9, UVC) (EXC UE1, U2K, U42) 2008-2008 01
008 25892502 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UQS, UVA, UVC, U42) (EXC UE1, U2K) 2008-2008 01
008 25892502 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UQS, UVB, UVC, U42) (EXC UE1, U2K) 2008-2008 01
008 25895646 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UE1, UQS, UVA, UVC, U2K, U42) 2008-2008 01
008 25895646 HARNESS, I/P WRG HARN EXTN (INCLS 6) (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) N2 (UE1, UQS, UVB, UVC, U2K, U42) 2008-2008 01
009 25791895 BRACKET, COMMUNICATION INTERFACE MDL N2 (UE1) 2008-2008 01
010 11610157 NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (COMMUNICATION INTERFACE MDL BRKT) (10.701) 2008-2008 02
