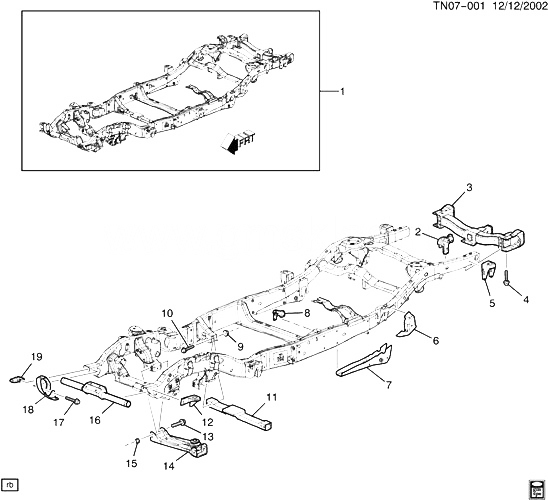

(TN07-001) - 2003-2009 N2 РАМА HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15143881 FRAME, CHASSIS (INCLS 2-19) N2 2008-2008 01
002 88982422 BRACKET, RR S/ABS UPR (PART OF 1) N2 2006-2009 01
002 88982423 BRACKET, RR S/ABS UPR (PART OF 1) N2 2006-2009 01
003 15212432 HITCH PKG, TRLR (PART OF 1) (HITCH ONLY) N2 2008-2009 01
004 11518585 БОЛТ, TRLR WT DISTR HITCH PLTF (PART OF 1) N2 2003-2009 04
005 88982414 BRACKET, BODY RR MT (#5) (PART OF 1) N2 2003-2009 01
006 15060195 BRACKET, RR SUSP UPR CONT ARM (PART OF 1) N2 2005-2009 01
006 15060196 BRACKET, RR SUSP UPR CONT ARM (PART OF 1) N2 2005-2009 01
007 15060198 BRACKET, RR SUSP LWR CONT ARM (PART OF 1) N2 2006-2009 01
007 19121250 BRACKET, RR SUSP LWR CONT ARM (PART OF 1) (INCLS SLEEVE) N2 2006-2009 01
008 15044557 SUPPORT, TORS BAR (PART OF 1) (MOUNTED TO FRAME) (BRACKET W/RUBBER BUSHING) N2 2008-2009 02
009 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (PART OF 1) 2003-2009 04
010 11517560 SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (PART OF 1) 2003-2009 04
011 15143883 CROSSMEMBER, TRANS SUPT (PART OF 1) N2 2008-2009 01
012 15058335 BRACKET, RAD C/MBR (PART OF 1) N2 2003-2009 01
012 15058336 BRACKET, RAD C/MBR (PART OF 1) N2 2003-2009 01
013 БОЛТ, CR/MBR FRT SUSP LWR (PART OF 1) 2003-2009
014 15212425 CROSSMEMBER, FRT SUSP LWR (PART OF 1) N2 2008-2009 01
015 NUT, CR/MBR FRT SUSP LWR (PART OF 1) 2003-2009
016 88982730 CROSSMEMBER, FRT (PART OF 1) N2 2003-2009 01
017 11515778 БОЛТ, HFH, M12X1.75X45, 40 THD, 26.6 OD, 10.9, 7114M, P-POINT. (PART OF 1) 2003-2009 04
018 15058331 BRACKET KIT, БАМПЕР ПЕРЕДНИЙ IMP BAR (PART OF 1) N2 2003-2009 01
018 15058332 BRACKET KIT, БАМПЕР ПЕРЕДНИЙ IMP BAR (PART OF 1) N2 2003-2009 01
019 15062628 HOOK, FRT TOW (PART OF 1) N2 2003-2009 02
