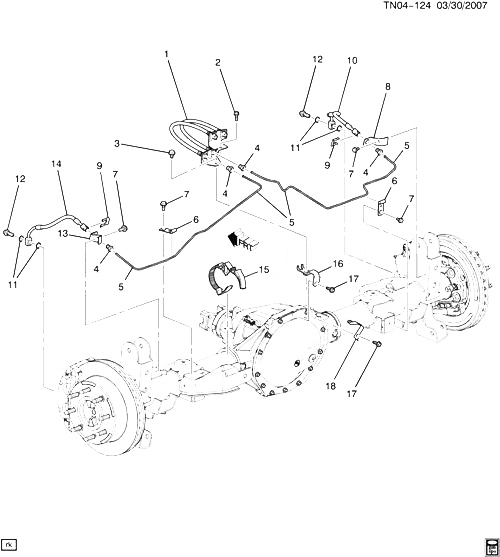

(TN04-124) - 2008-2009 N2 ЗАДНИЕ ТОРМОЗНЫЕ ТРУБКИ HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15288885 HOSE, RR BRK N2 (JH6) 2008-2009 01
002 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082) 2008-2009 01
003 11610167 БОЛТ, HFH M8X1.25X18 (BRK PIPE BRKT) 2008-2009 01
004 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE) 2008-2009 04
005 88983905 PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING) N2 (JH6) 2008-2009 AR
006 11561240 CLAMP, SINGLE CLOSED-LOOP, DIA 7.25MM, C-TO-C 36.5, WIDTH 20, HOLE DIA 11 (RR BRK C/OVR PIPE) (8.948) 2008-2009 02
007 11508534 БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (RR BRK C/OVR PIPE BRKT) 2008-2009 04
008 BRACKET, RR BRK HOSE (PART OF 10) 2008-2009
009 CLIP, RR BRK HOSE (PART OF 10, 14) 2008-2009
010 15288887 HOSE, RR BRK (INCLS 8, 9, 11, 12) N2 (JH6) 2008-2009 01
011 WASHER, RR BRK HOSE (PART OF 10, 14) 2008-2009
012 БОЛТ, RR BRK HOSE (PART OF 10, 14) 2008-2009
013 BRACKET, RR BRK HOSE (PART OF 14) 2008-2009
014 15288886 HOSE, RR BRK (INCLS 9, 11-13) N2 (JH6) 2008-2009 01
015 15234822 STRAP, RR BRK PIPE N2 2008-2009 01
016 15752275 BRACKET, RR BRK C/OVR PIPE N2 (GT4) 2008-2009 01
017 12471307 БОЛТ, R/AXL HSG CVR (M8X1.25X20) N2 (GT4) 2008-2009 14
018 15170787 CLIP, RR BRK PIPE N2 (GT4) 2008-2009 01
