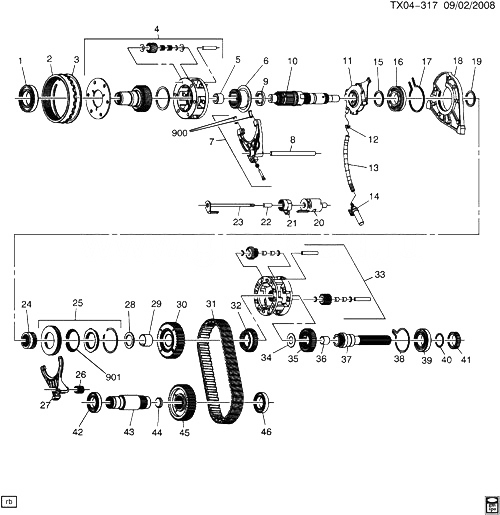

(TX04-317) - 2008-2009 N2 КАРТЕР И КРЫШКИ КОРОБКИ ПЕРЕДАЧ PART 2 INTERNAL COMPONENTS (BORG WARNER 4484) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88984507 BEARING, TRFER CASE INPUT SHF (*KIT1) N2 (MYC) 2008-2009 01
002 88984534 GEAR, TRFER CASE PLNT CARR INTL N2 (MYC) 2008-2009 01
003 15580249 RING, TRFER CASE HIGH/LOW INT GR RET N2 (MYC) 2008-2009 01
004 19167388 CARRIER, TRFER CASE HIGH/LOW PLNT N2 (MYC) 2008-2009 01
005 12334624 BEARING, TRFER CASE MAIN SHF FRT (ACDelco #12334624) N2 (MYC) 2008-2009 01
006 88996561 HUB, TRFER CASE HIGH/LOW CLU GR N2 (MYC) 2008-2009 01
007 19167563 FORK, TRFER CASE HIGH/LOW SHFT (INCLS 900) N2 (MYC) 2008-2009 01
008 89059532 SHAFT, TRFER CASE SHFT FORK N2 (MYC) 2008-2009 01
009 89058756 WASHER, TRFER CASE INPUT SHF THR N2 (MYC) 2008-2009 01
010 19167389 SHAFT, TRFER CASE INPUT N2 (MYC) 2008-2009 01
011 89059682 PUMP, TRFER CASE OIL N2 (MYC) 2008-2009 01
012 88984502 CLAMP, TRFER CASE O/PMP SUC HOSE N2 (MYC) 2008-2009 01
013 19167390 HOSE, TRFER CASE O/PMP SUC N2 (MYC) 2008-2009 01
014 88984525 SCREEN, TRFER CASE O/PMP N2 (MYC) 2008-2009 01
015 19168734 WASHER, TRFER CASE INPUT SHF CTR SUPT BRG THR (4.533) N2 (MYC) 2008-2009 02
016 88984506 BEARING, TRFER CASE INPUT SHF CTR SUPT (PART OF 18) (4.520) N2 (MYC) 2008-2009 01
017 88984508 RING, TRFER CASE INPUT SHF CTR SUPT BRG RET (PART OF 18) (80MM I.D.) (4.535) N2 (MYC) 2008-2009 01
018 89059544 SUPPORT, TRFER CASE INPUT SHF CTR (INCLS 16, 17) (4.520) N2 (MYC) 2008-2009 01
019 19168734 WASHER, TRFER CASE INPUT SHF CTR SUPT BRG THR (4.533) N2 (MYC) 2008-2009 02
020 19168726 LEVER, TRFER CASE SHFT DTNT N2 (MYC) 2008-2009 01
021 88984497 SPRING, TRFER CASE HIGH/LOW SHFT FORK SHF DTNT N2 (MYC) 2008-2009 01
022 88984496 SPACER, TRFER CASE SHFT DTNT LVR N2 (MYC) 2008-2009 01
023 19168727 SHAFT, TRFER CASE SHFT DTNT LVR (4.555) N2 (MYC) 2008-2009 01
024 88996672 HUB, TRFER CASE TWO/FOUR WHL DRV CLU GR N2 (MYC) 2008-2009 01
025 89059281 COLLAR, TRFER CASE TWO/FOUR WHL DRV SYN (INCLS 901) N2 (MYC) 2008-2009 01
026 15663532 SPRING, TRFER CASE SHFT FORK N2 (MYC) 2008-2009 01
027 19180821 FORK, TRFER CASE TWO/FOUR WHL DRV SHFT N2 (MYC) 2008-2009 01
028 88984518 WASHER, TRFER CASE FRT OUTPUT SHF DRVN SPKT THR N2 (MYC) 2008-2009 01
029 19168732 BUSHING, TRFER CASE FRT OUTPUT SHF DRV SPKT (A) (ACDelco #19168732) N2 (MYC) 2008-2009 01
030 19167564 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV N2 (MYC) 2008-2009 01
031 19151772 CHAIN, TRFER CASE TWO/FOUR WHL DRV N2 (MYC) 2008-2009 01
032 19168724 GEAR, TRFER CASE PLNT CARR SUN N2 (MYC) 2008-2009 01
033 19168723 CARRIER, FRT/RR DRV DIFF N2 (MYC) 2008-2009 01
034 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR N2 (MYC) 2008-2009 01
035 88996595 GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STEEL) N2 (MYC) 2008-2009 01
036 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (PART OF 37) N2 (MYC) 2008-2009 01
037 19168725 SHAFT, TRFER CASE RR OUTPUT (INCLS 36, 39-41) N2 (MYC) 2008-2009 01
038 88984508 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (80MM I.D.) (4.535) N2 (MYC) 2008-2009 01
039 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR (PART OF 37) N257 (MYC) 2008-2009 01
040 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (PART OF 37) (41MM I.D.) (ACDelco #88984493) N2 (MYC) 2008-2009 01
041 88984522 КОЛЕСО, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 37) (4.329) N257 (06-36) 2008-2008 01
041 88984522 КОЛЕСО, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 37) N257 (06-36) 2008-2008 01
042 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (*KIT1) N2 (MYC) 2008-2009 02
043 19168722 SHAFT, TRFER CASE FRT OUTPUT (INCLS 44) N2 (MYC) 2008-2009 01
044 89059602 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 43) N2 (MYC) 2008-2009 01
045 88984540 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN N2 (MYC) 2008-2009 01
046 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (*KIT2) N2 (MYC) 2008-2009 02
900 89060050 PAD, TRFER CASE HIGH/LOW SHFT FORK (PART OF 7) N2 (MYC) 2008-2009 02
901 88984512 SPRING, TRFER CASE TWO/FOUR WHL DRV SYN INS (PART OF 25) N2 (MYC) 2008-2009 01
K01 19167387 CASE, TRFER (FRT HALF) (INCLS 1, 42) N2 (MYC) 2008-2009 01
K02 19167206 CASE, TRFER (RR HALF) (INCLS 46) N2 (MYC) 2008-2009 01
