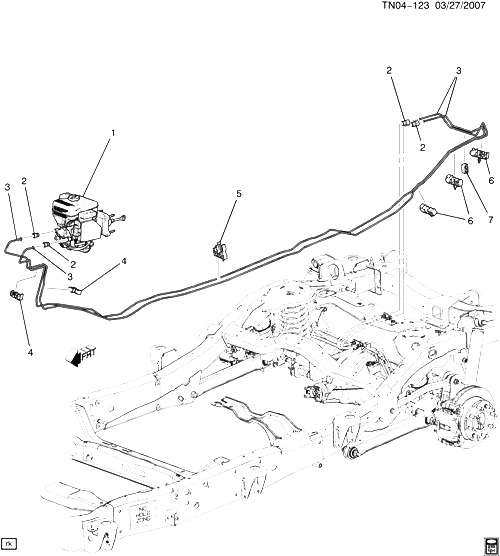

(TN04-123) - 2008-2009 N2 ВСПОМОГАТЕЛЬНЫЕ ТОРМОЗНЫЕ ТРУБКИ HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) 2008-2009
002 11518522 NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (RR BRK PIPE) 2008-2009 04
003 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (RR BRK) 2008-2009 AR
004 CLIP, BRK PIPE 2008-2009
005 11561771 CLIP, RR BRK FRT PIPE N257 (JH6) 2008-2009 12
006 11561769 CLIP, RR BRK FRT PIPE N257 (JH6) 2008-2009 03
007 11561578 CLIP, RR BRK FRT PIPE (31.72X17.07X15.0) (HOLDS (2) 6.75 TUBES, ROUTING CLIP) N2 (JH6) 2008-2009 01
